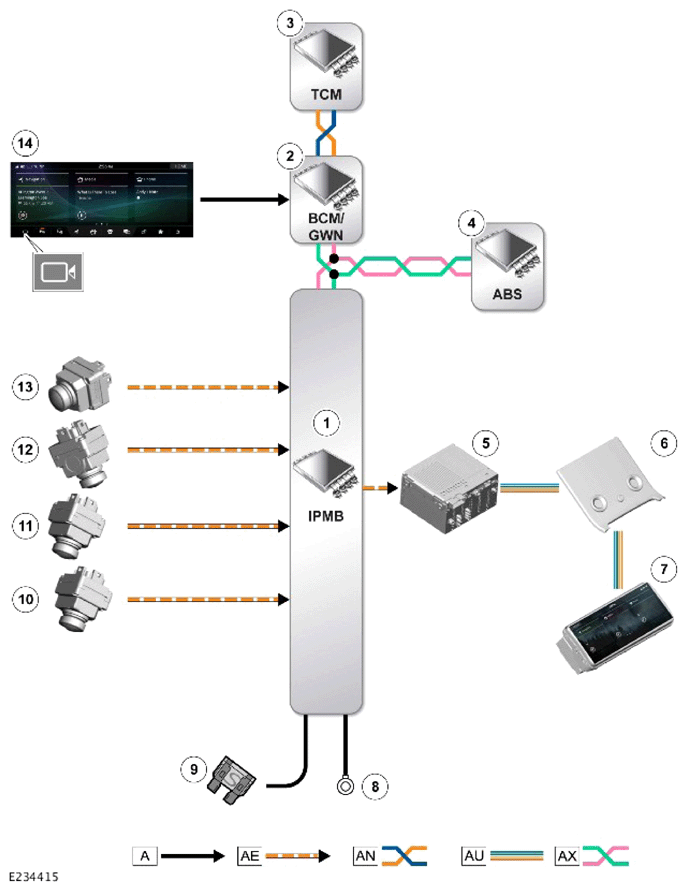

Control Diagram - 4 Of 5 - Proximity Camera System
A = HARDWIRED: AE = LOW-VOLTAGE DIFFERENTIAL SIGNALLING (LVDS): AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Image Processing Module 'B' (IPMB) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Transmission Control Module (TCM) |
| 4 | Anti-lock Brake System (ABS) control module |
| 5 | Infotainment Master Controller (IMC) |
| 6 | Interactive Control Display Module (ICDM) |
| 7 | Interactive Display Module 'A' (IDMA) |
| 8 | Ground |
| 9 | Power supply |
| 10 | Front proximity camera |
| 11 | Left door mirror proximity camera |
| 12 | Right door mirror proximity camera |
| 13 | Rear proximity camera |
| 14 | Proximity camera soft key |
