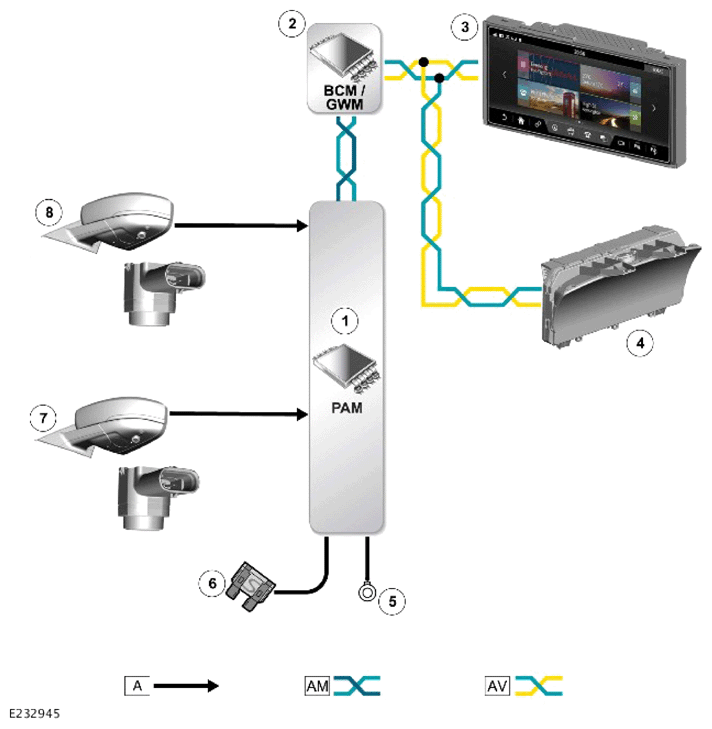

Control Diagram - 5 Of 5 - Wade Sensing System
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Parking Assist Control Module (PAM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Touchscreen (TS) |
| 4 | Instrument Cluster (IC) |
| 5 | Ground |
| 6 | Power supply |
| 7 | Right door mirror wade sensor |
| 8 | Left door mirror wade sensor |
