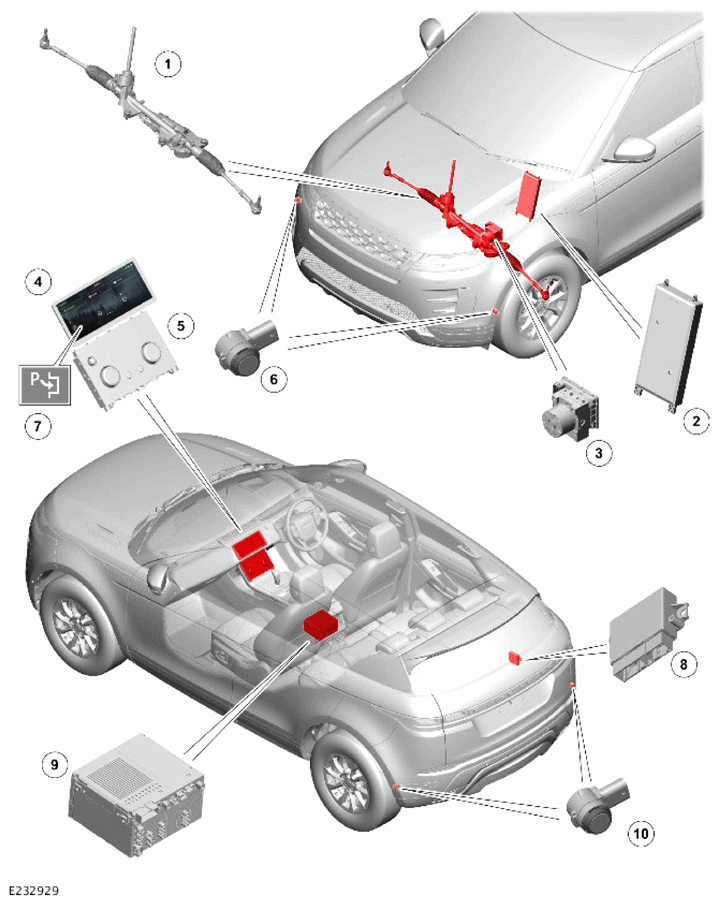

Component Location - 2 Of 5 - Park Assist
| ITEM | DESCRIPTION |
|---|---|
| 1 | Power steering - Electric |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Touchscreen (TS) |
| 5 | Integrated Control Panel (ICP) |
| 6 | Front park assist sensors (quantity 2) |
| 7 | Park assist soft key |
| 8 | Parking Assist Control Module (PAM) |
| 9 | Infotainment Master Controller (IMC) |
| 10 | Rear park assist sensors (quantity 2) |
