Seating (G2318412)
Torque Specifications
NOTE:
Numbers with green background are single use components.
| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

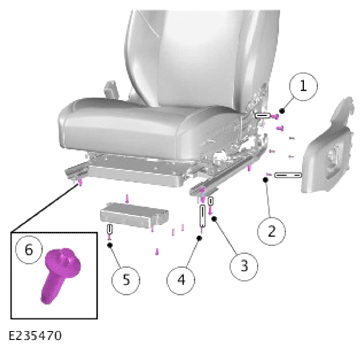

| 1 | Front row seat backrest retaining bolts | 50 | 37 | - |
| 2 | Front row seat switchpack bolts | 1.4 | - | 12 |
| 3 | Driver Seat Module (DSM) trim panel bolts | 6 | - | 53 |
| 4 | Front row seat cushion blower bolts | 1 | - | 9 |
| 5 | DSM retaining bolts | 1.5 | - | 13 |
| 6 | Front row seat retaining bolts | 40 | 30 | - |

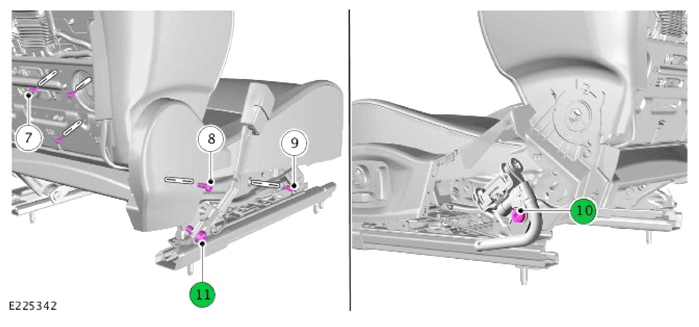

| 7 | Front row seat backrest blower bolts | 1 | - | 9 |
| 8 | Front Row seat inner valance M6 bolt | 6 | - | 53 |
| 9 | Front Row seat inner valance M5 bolt | 3.2 | - | 28 |
| 10 | Front row seatbelt pretensioner bolt | 40 | 30 | - |
| 11 | Front row seatbelt buckle bolt | 40 | 30 | - |
| 12 | Side airbag nuts | 7 | - | 62 |
| 13 | Occupant Classification Sensor (OCS) bolt | 2 | - | 18 |

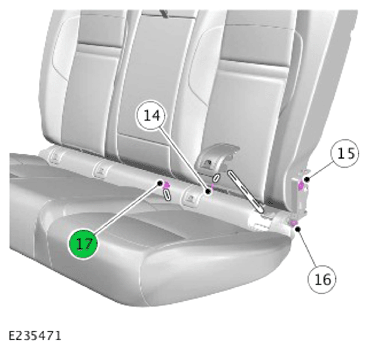

| 14 | ISOFIX trim bolt | 2 | - | 18 |
| 15 | Second row seat backrest bushing bolt | 35 | 26 | - |
| 16 | Second row seat backrest lock bolt | 22.5 | 17 | - |
| 17 | Second row seatbelt buckle nut | 40 | 30 | - |
