Second Row Seat Cushion Cover (G2308497): Installation

NOTE:
- Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
- Make sure that new hog rings are installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the second row seat cushion cover.

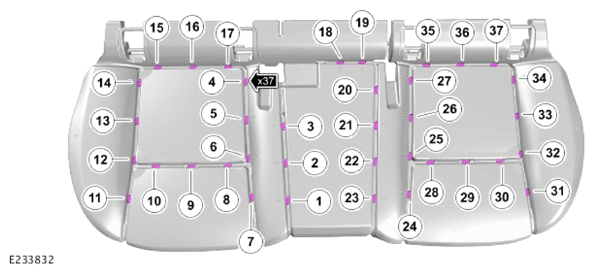

- Install the 37 new hog rings in the sequence shown.
  General Equipment: hog ring plier

  Renew Part: Hog rings Quantity: 37 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

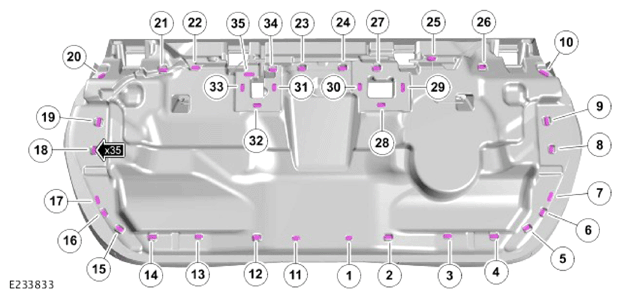

Install the 35 new hog rings in the sequence shown.

General Equipment: hog ring plier

Renew Part: Hog rings Quantity: 35 .
- Install the 4 ISOFIX trims.
- Install and tighten the 4 bolts.
  Torque : 2 Nm
Install the second row seat cushion.
Refer to: SECOND ROW SEAT CUSHION .
