Second Row Seat Cushion (G2298870): Removal

NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

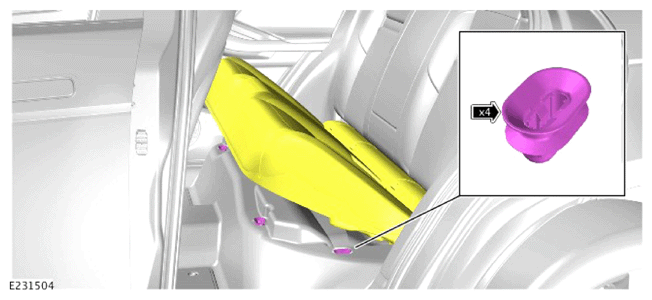

  1. G14458378Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the second row seat cushion.

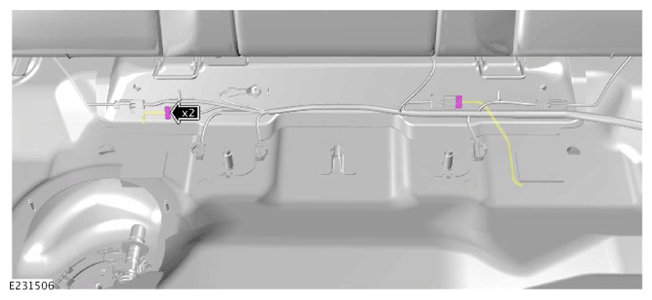

  2. G14458379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 second row seat cushion heater element electrical connectors.

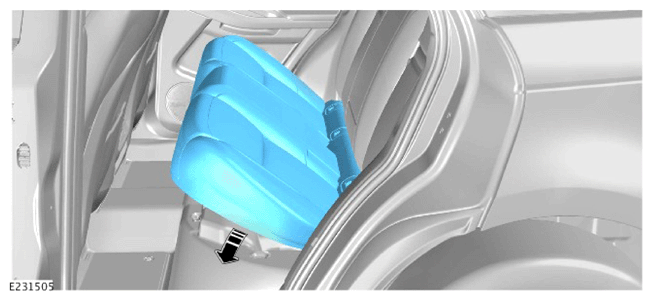

  3. G14458380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the second row seat cushion.
