Front Row Seat Cushion Cover (G2305903): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the front row seat.
Refer to: FRONT ROW SEAT .
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the front row seat outer valance in the sequence shown.
- Disconnect the front row seat switchpack electrical connector.
- Remove the front row seat outer valance.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 front row seat backrest cover retainers.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front row seat backrest trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 front row seat cushion cover retainers.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the front row seat cushion cover retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the front row seat cushion cover retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

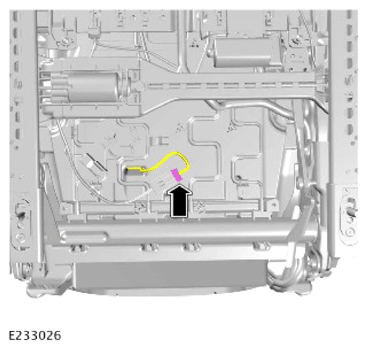

Disconnect the front row seat cushion heater element electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

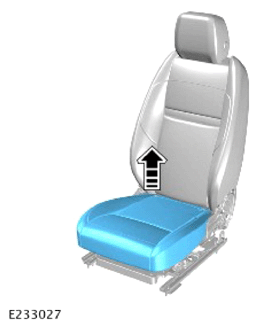

Remove the front row seat cushion assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

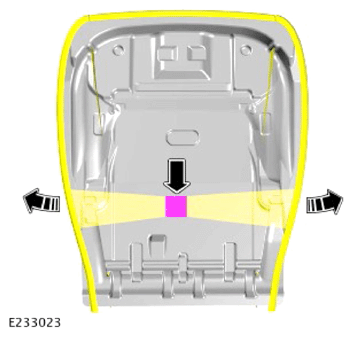

- Release the carpet retainer.
- Release the front row seat cushion cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 20 hog rings.
- Remove the front row seat cushion cover.
