Front Row Seat Backrest Blower (G2303727): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Remove the front row seat.
Refer to: FRONT ROW SEAT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

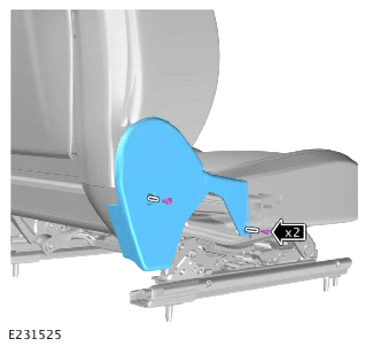

- Remove the 2 bolts.
- Remove the front row seat inner valance.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front row seat backrest trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

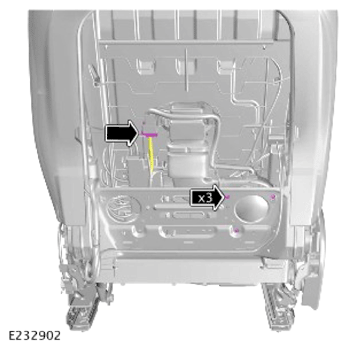

- Remove the 3 bolts.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

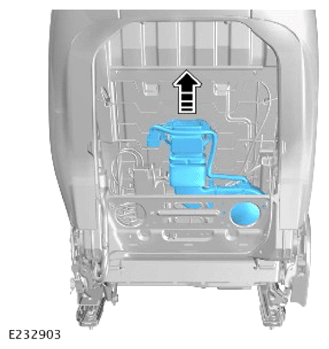

Remove the front row seat backrest blower.
