Front Row Seat Backrest (G2299201): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.

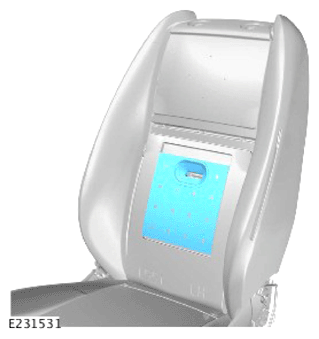

Remove the front row seat backrest cover.
Refer to: FRONT ROW SEAT BACKREST COVER .

Refer to: FRONT ROW SEAT BACKREST COVER - VEHICLES WITH: CLIMATE CONTROLLED SEATS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

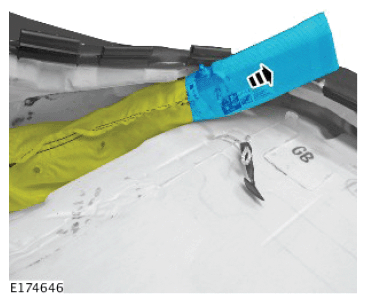

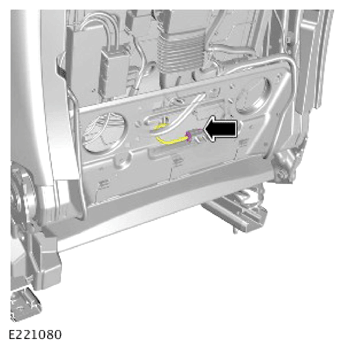

Disconnect the side airbag electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

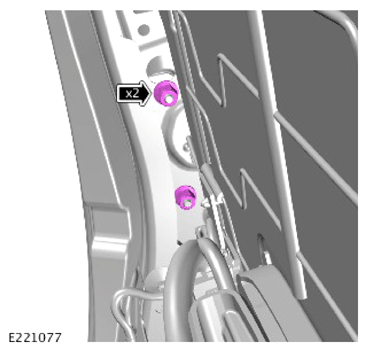

Remove the 2 nuts.

The following step(s) applies to:

Vehicles with heated front seats
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

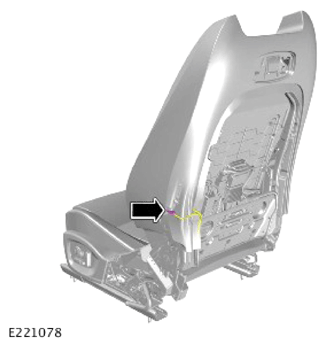

Disconnect the front row seat backrest heater element electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

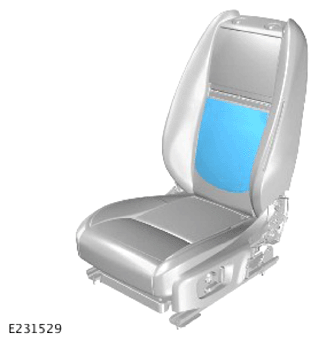

Remove the front row seat backrest heater element.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

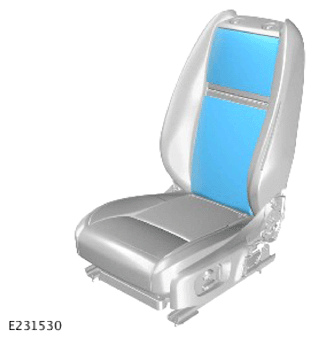

Remove the front row seat backrest vent element support.

The following step(s) applies to:

Vehicles with climate controlled seats
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

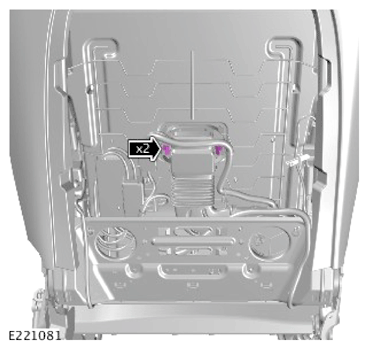

Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front row seat backrest vent element.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

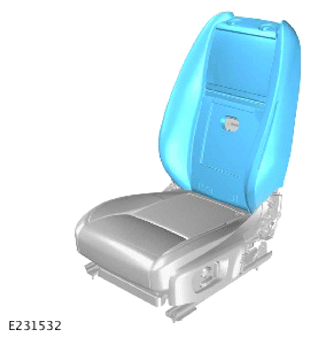

Remove the front row seat backrest.
CAUTION: Note the installed position of the component(s) prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the side airbag from the fabric bag.
