Second Row Seat Heating - If Equipped

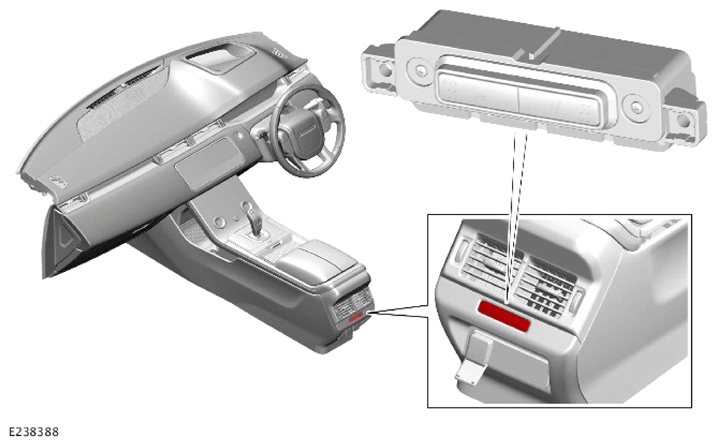

The second seat heater control selections are made on the seat heater switch. The second row seat heater switch is located on the rear of the floor console. The seat heater operation of the outer second row seats are controlled by a separate seat heater switch for each seat.
Each switch has 3 levels of heat setting:
- Low
- Medium
- High.
The levels can be selected by sequential presses of the switch. Light Emitting Diodes (LED) on each switch indicate the selected heat setting requested. The seat heater switch is connected to the HVAC control module through High Speed (HS) Controller Area Network (CAN) comfort systems bus.
