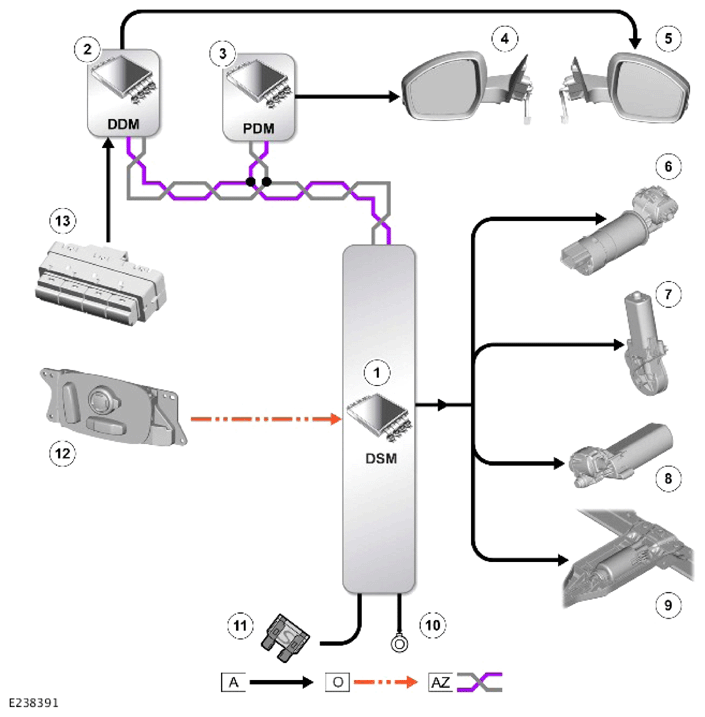

Seat Adjustment - Front Seats With Seat Memory
A = HARDWIRED: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Seat Module (DSM) |
| 2 | Driver Door Module (DDM) |
| 3 | Passenger Door Module (PDM) |
| 4 | Passenger door mirror |
| 5 | Driver door mirror |
| 6 | Seat cushion tilt motor |
| 7 | Seat backrest recline motor |
| 8 | Seat height motor |
| 9 | Seat forward/rearward motor |
| 10 | Ground |
| 11 | Power supply |
| 12 | Driver seat switchpack |
| 13 | Driver seat memory switchpack |
