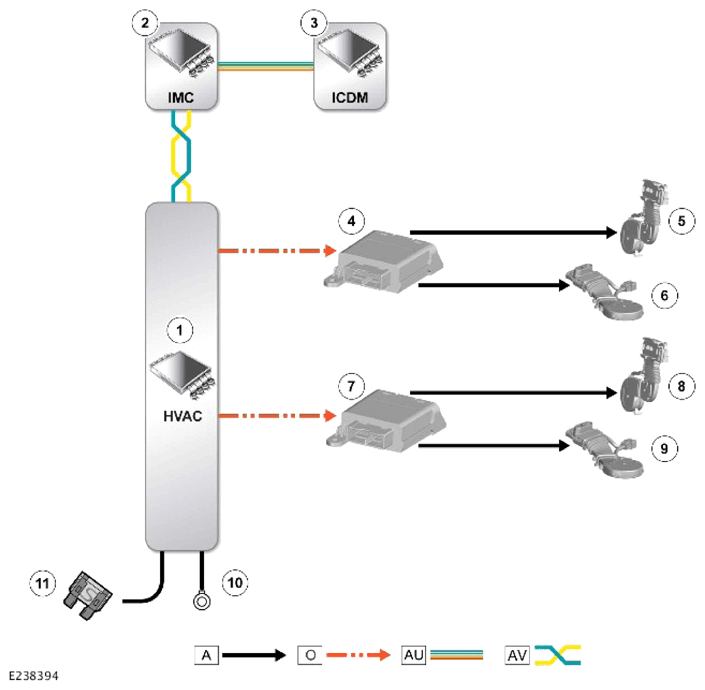

Climate Seats - If Equipped
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module |
| 2 | Infotainment Master Controller (IMC) |
| 3 | Interactive Control Display Module (ICDM) |
| 4 | Driver Seat Climate Control Module (DSCCM) |
| 5 | Driver seat backrest climate assembly |
| 6 | Driver seat cushion climate assembly |
| 7 | Passenger Seat Climate Control Module (PSCCM) |
| 8 | Passenger seat backrest climate assembly |
| 9 | Passenger seat cushion climate assembly |
| 10 | Ground |
| 11 | Power supply |
