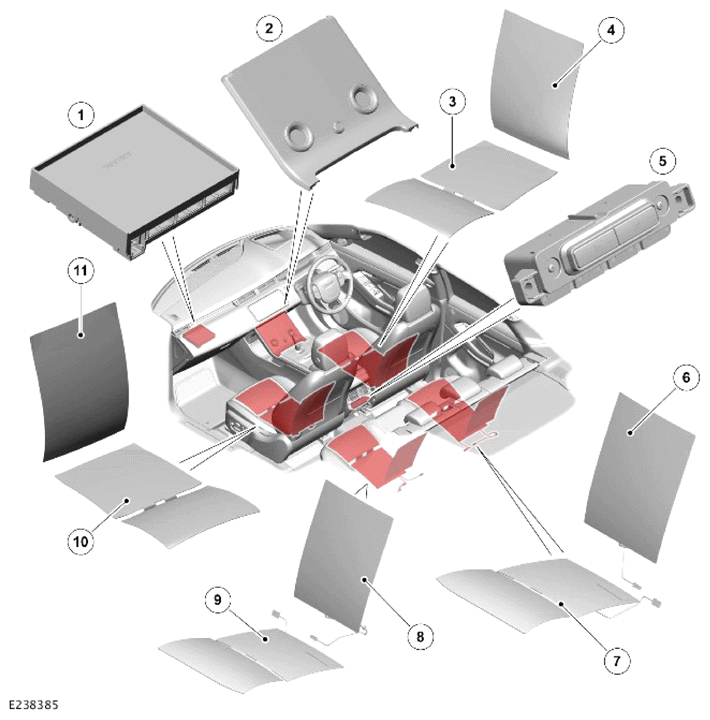

Component Location - Heated Seats - Vehicles With 2-Zone Climate Control - If Equipped
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module |
| 2 | Interactive Control Display Module (ICDM) |
| 3 | Driver seat cushion heater element |
| 4 | Driver seat backrest heater element |
| 5 | Second row seats heater switch |
| 6 | Right second row seat backrest heater element |
| 7 | Right second row seat cushion heater element |
| 8 | Left second row seat backrest heater element |
| 9 | Left second row seat cushion heater element |
| 10 | Passenger seat cushion heater element |
| 11 | Passenger seat backrest heater element |
