Information And Entertainment System - Vehicles With: INCONTROL Touch Pro (G2320138)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

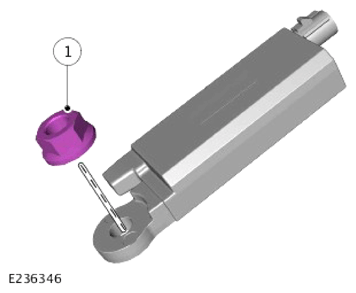

1	AM/FM antenna amplifier nut	4, 8	-	42

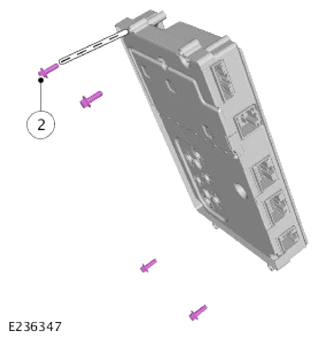

2	Audio NLI amplifier bolts	2	-	18

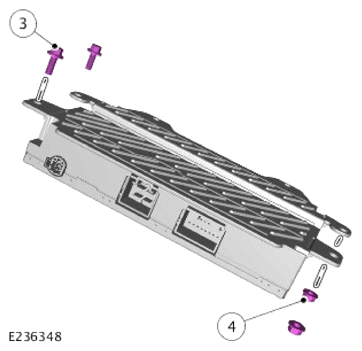

3	Audio Amplifier Module bolts	7	-	80
4	Audio Amplifier Module nuts	7	-	61

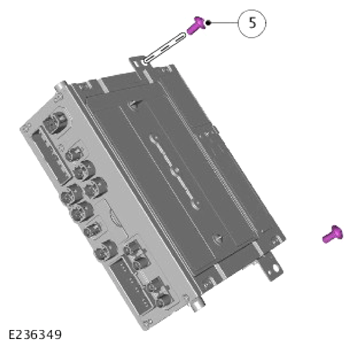

5	Front door speaker bolts	2.2	-	61

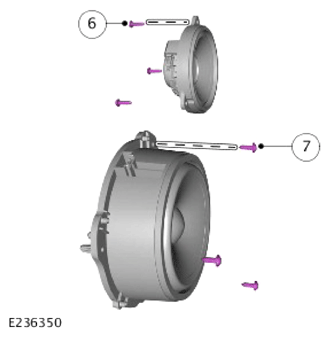

6	Luggage compartment mid range speaker screws	2	-	18
7	Instrument panel speaker bolts	1.5	-	13

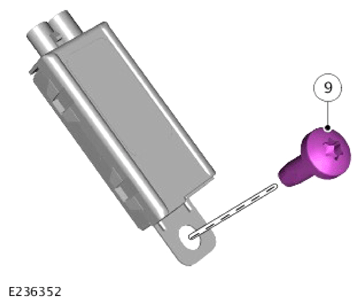

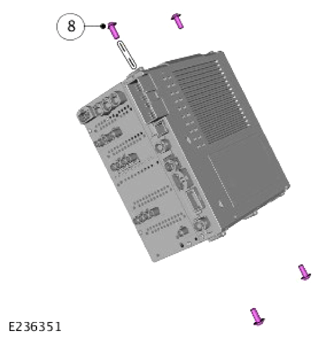

8	Satellite radio tuner bolts	9	-	80
9	Rear door speaker bolts	2.2	-	18

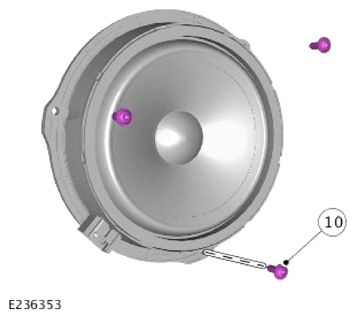

10	Sub-woofer nuts	8	-	80

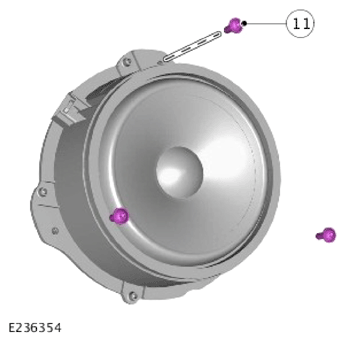

11	Information and entertainment display bolts	6	-	53

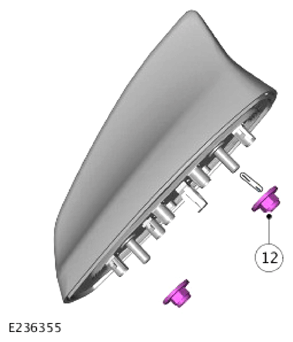

12	Navigation system module bolts	9	-	80

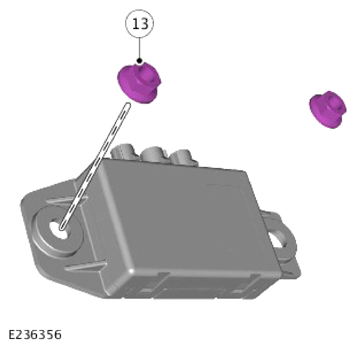

13	Global navigation satellite system signal splitter	8	-	80

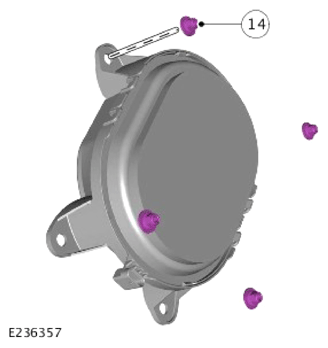

14	Sub woofer bolts	8	-	70
