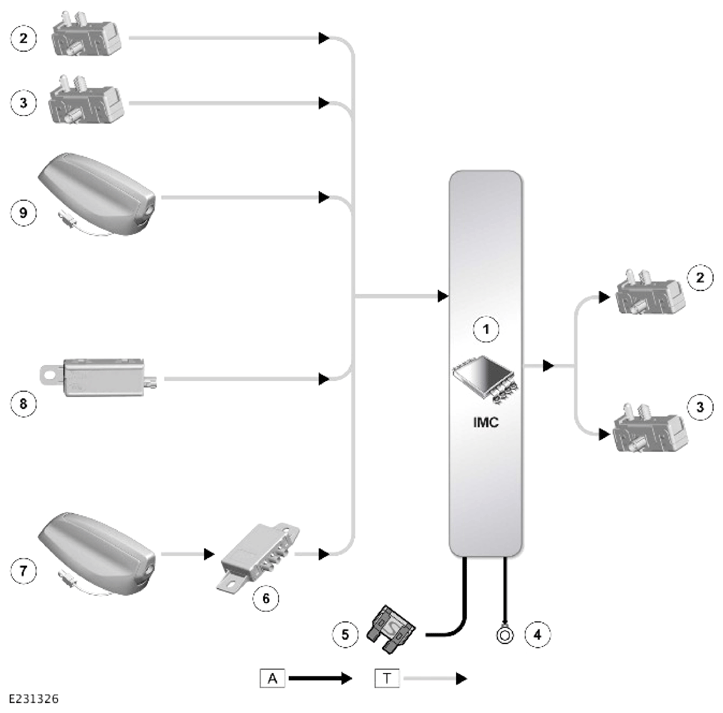

Control Diagram - 1 Of 1
A= HARDWIRED: T = CO-AXIAL.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Front left Bluetooth®/WiFi antenna |
| 3 | Front right WiFi antenna |
| 4 | Ground |
| 5 | Fuse |
| 6 | Global Navigation Satellite System (GNSS) splitter - Only on vehicles with telematics system |
| 7 | Roof pod - GNSS/digital radio/Global System for Mobile communications (GSM)/Satellite Digital Audio Radio Service (SDARS) (North American Specification (NAS) only)/external WiFi |
| 8 | Antenna amplifiers (number and type depend on vehicle specification) |
| 9 | Roof pod - GNSS antenna/digital radio antenna/GSM antenna/SDARS antenna (NAS only)/external WiFi |
