Transfer Case Draining And Filling (G2951358): Draining

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Position a suitable container to collect the fluid.
  3. CAUTION: Make sure that the area around the component is clean and free of foreign material.

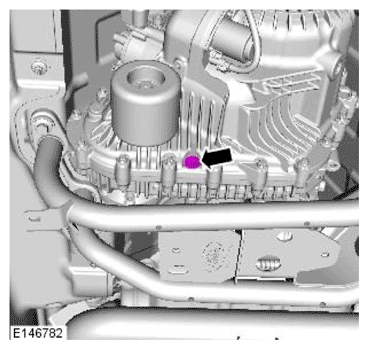

    G11707509Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the transfer case drain plug.
    • Remove and discard the sealing washer.
  4. Allow the fluid to drain.
  5. G11707509Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new sealing washer.

      Renew Part: Transfer case drain plug washer Quantity: 1.

    • Install and tighten the transfer case filler plug.

      Torque  : 28 Nm
