Wheel Knuckle (G2426757): Installation

CAUTION: Do not tighten the bolt at this stage.

NOTE: This step is not required if the component is removed for access only.
- Install the 2 rear lower control arm to rear wheel knuckle links.
- Install and finger tight the new nut and bolt.
  Renew Part: Rear wheel knuckle to lower arm link nut(s) Quantity: 1.

  Renew Part: Rear wheel knuckle to lower arm link bolt(s) Quantity: 1.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the nut to the lower control arm.
  Renew Part: Rear wheel knuckle to lower arm nut(s) Quantity: 1.
- Install and tighten the bolt.
  Torque : 6 Nm

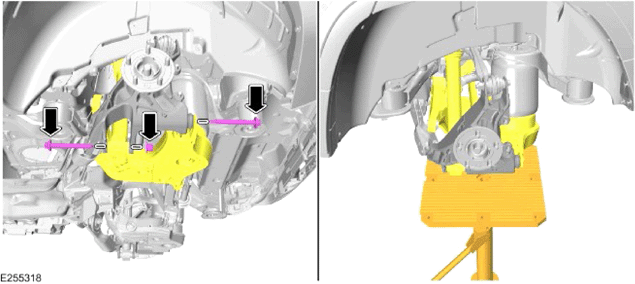

- Install the rear wheel knuckle.
- Use the special tool to install, the rear halfshaft to the rear wheel knuckle.
  Special Tool(s): 204-506/1 , 204-506/2 , 204-506/3 , 204-506/5
- Secure the rear upper control arm to the rear wheel knuckle.
- Install and tighten the rear upper control arm to the rear wheel knuckle bolt and nut.
  Renew Part: Rear wheel knuckle to upper arm nut(s) Quantity: 1.

  Renew Part: Rear wheel knuckle to upper arm bolt(s) Quantity: 1.

  Torque

  Stage 1: 50 Nm

  Stage 2: 60°
- Remove the special tool from the rear wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Secure the rear lower control arm to the rear wheel knuckle.
- Install and tighten rear lower control arm to rear wheel knuckle bolt.
  Renew Part: Rear wheel knuckle to lower arm bolt(s) Quantity: 1.

  Torque

  Stage 1: 70 Nm

  Stage 2: 240°
- Secure the rear shock absorber to the rear wheel knuckle.
- Install and tighten the rear shock absorber to rear wheel knuckle bolt and nut.
  Renew Part: Rear shock absorber to wheel knuckle nut(s) Quantity: 1.

  Renew Part: Rear shock absorber to wheel knuckle bolt(s) Quantity: 1.

  Torque

  Stage 1: 100 Nm

  Stage 2: 240°
- Remove the transmission jack.
  General Equipment: Transmission jack
- Secure the rear tie-rod to the rear wheel knuckle.
- Install and tighten the rear tie-rod to the rear wheel knuckle bolt and nut.
  Renew Part: Rear tie-rod to wheel knuckle nut(s) Quantity: 1.

  Renew Part: Rear tie-rod to wheel knuckle bolt(s) Quantity: 1.

  Torque

  Stage 1: 70 Nm

  Stage 2: 240°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the rear lower control arm to rear wheel knuckle links to the correct location.
- Install and finger tighten the top bolt and nut.
  Renew Part: Rear wheel knuckle to lower arm link nut(s) Quantity: 1.

  Renew Part: Rear wheel knuckle to lower arm link bolt(s) Quantity: 1.
- Fully tighten the 2 bolts and nuts.
  Torque

  Stage 1: 50 Nm

  Stage 2: 180°
- Secure the wheel speed sensor to the rear wheel knuckle.
- Install and tighten the wheel speed sensor to rear wheel knuckle bolt.
  Torque : 9 Nm
- Install the rear brake disc shield.
- Install and tighten the 3 rear brake disc shield to rear wheel knuckle bolts.
  Torque : 9 Nm
Install the rear brake disc.
Refer to: BRAKE DISC - VEHICLES WITH: 325 MM BRAKE DISC

Refer to: BRAKE DISC - VEHICLES WITH: 325 MM BRAKE DISC

Refer to: BRAKE DISC - VEHICLES WITH: 365 MM BRAKE DISC

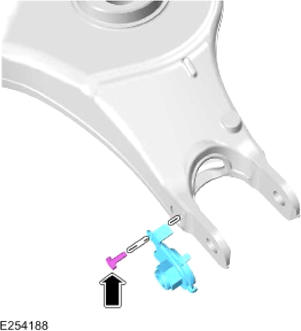

Secure the height sensor link to the rear lower arm.
WARNING: This step is for core vehicles only.

CAUTION: Do not use air tools to install the halfshaft nut.

NOTE: Apply the brake pedal during the removal and installation of the half shaft retaining nut.

Install a new halfshaft retaining nut.

Renew Part: Rear halfshaft nut Quantity: 1.

Torque

Stage 1: 300 Nm

Stage 2Loosen: 90°

Stage 3: 140 Nm

Stage 4: 30°
WARNING: This step is for Long Wheel Base (LWB) , SVR and armoured vehicles only.

CAUTION: Do not use air tools to install the halfshaft nut.

NOTE: Apply the brake pedal during the removal and installation of the half shaft retaining nut.

Install a new halfshaft retaining nut.

Renew Part: Rear halfshaft nut Quantity: 1.

Torque

Stage 1: 300 Nm

Stage 2Loosen: 90°

Stage 3: 120 Nm

Stage 4: 60°
Remove the rear wheel and tire assembly.
Refer to: WHEEL AND TIRE
Use the Jaguar Land Rover (JLR) approved diagnostic system, to pressurise the air suspension.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Use the JLR approved diagnostic system, to calibrate the suspension ride height.
Refer to: RIDE HEIGHT ADJUSTMENTS
