Wheel Bearing And Wheel Hub (G1561227): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the wheel bearing and wheel hub, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WHEEL KNUCKLE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

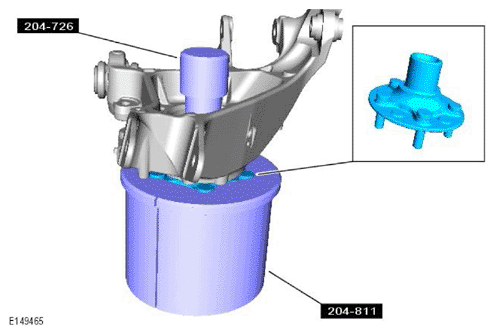

Special Tool(s): JLR-204-726 , JLR-204-811
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 204-305
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Clean all the mating faces and reusable parts thoroughly and check for damage

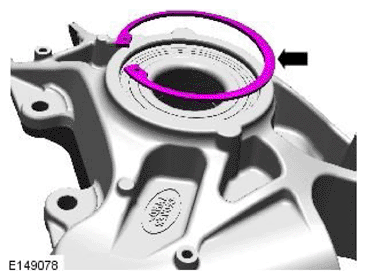

NOTE: Note the orientation of the clip prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Note the orientation (magnetic sensor ring) of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

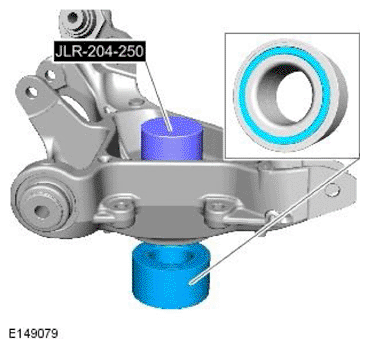

Special Tool(s): 204-250
