Wheel Bearing And Wheel Hub (G1561227): Installation

  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Make sure that the component is installed to the noted removal position.

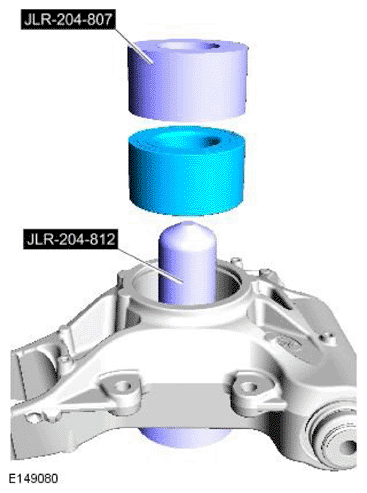

    G11692736Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-204-807  , JLR-204-812

  2. NOTE: Make sure that the component is installed to the noted removal position.
    G11692734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. G11692420Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 204-726  , 204-250

  4. Refer to: WHEEL KNUCKLE
