Upper Arm (G2341175): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
LH illustration shown, RH is similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear left wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

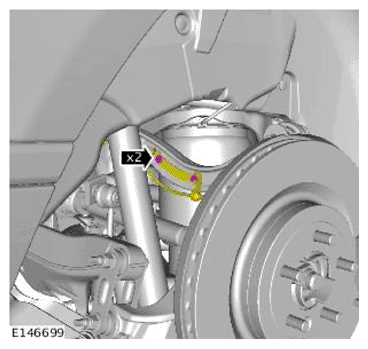

- Remove the 2 bolts.
- Release the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

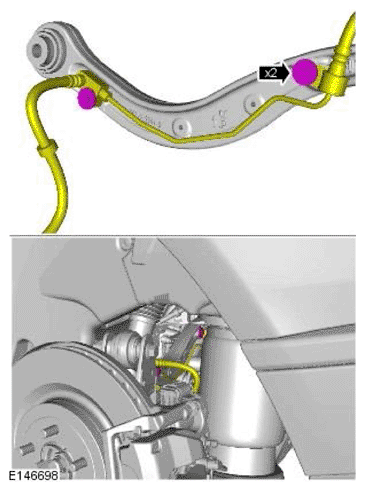

- Remove the 2 bolts.
- Release the brake hose from the upper arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

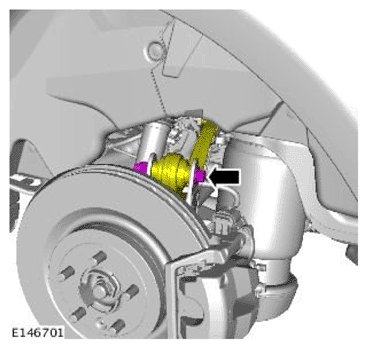

- Using a transmission jack, support the knuckle assembly.
  General Equipment: Transmission jack
- Remove the nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

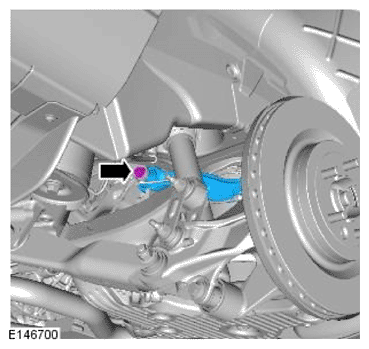

- Remove the nut and bolt.
- Remove the upper arm.
