Rear Stabilizer Bar Link - Vehicles Without: Dynamic Suspension (G2320543): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Left-hand shown, right-hand similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Remove the rear wheel.
Refer to: WHEEL AND TIRE
-

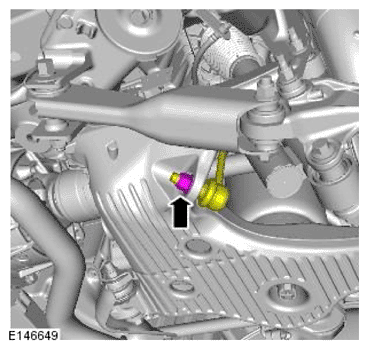

CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.
Remove the lower nut.
-

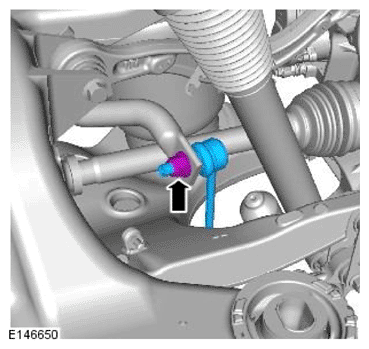

CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.
- Remove the upper nut.
- Remove the stabilizer bar link.
