Rear Stabilizer Bar Bush (G2328309): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

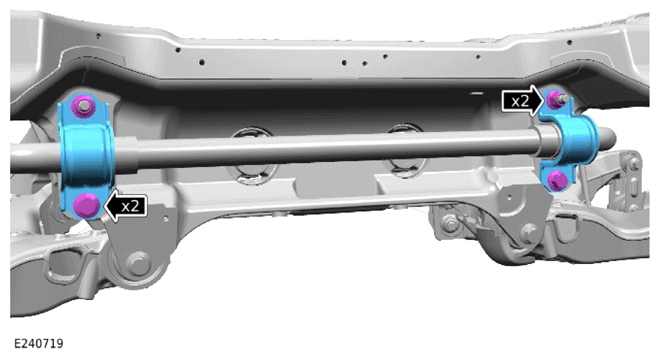

- Remove and discard the nuts and bolts.
- Remove the stabilizer bar mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

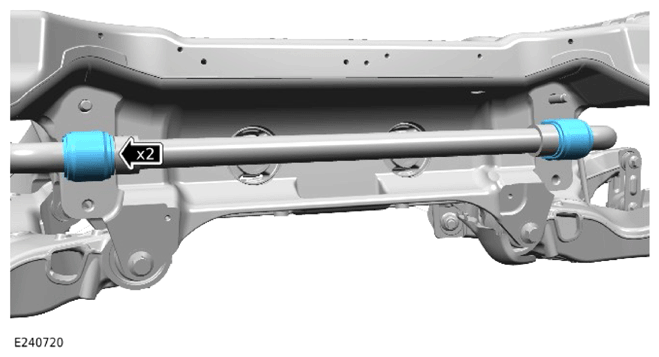

Remove the stabilizer bar bushes.
