Rear Stabilizer Bar - Vehicles Without: Dynamic Suspension (G2341174): Removal

The following step(s) applies to:

All vehicles

1. Raise and support the vehicle on a suitable 2 post lift.

   Refer to: JACKING AND LIFTING

2. Remove the rear air spring.

   Refer to: REAR AIR SPRING

   The following step(s) applies to:

   Vehicles with diesel engine

3. Remove the rear silencer.

   Refer to the appropriate service information

   The following step(s) applies to:

   Vehicles with petrol engine

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the 2 exhaust clamps.

5. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
   NOTE: The step must be carried out on both sides.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the exhaust system from the 2 exhaust hanger mounting rubbers.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Disconnect the electrical connector.

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Release the exhaust system from the 2 exhaust hanger mounting rubbers.
   • With assistance, remove the exhaust system.
8. NOTE: If equipped.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Remove the 4 nuts.
   • Remove the cover.
9. NOTE: If equipped.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Remove the 4 bolts.
   • Remove the bracket.

   The following step(s) applies to:

   All vehicles

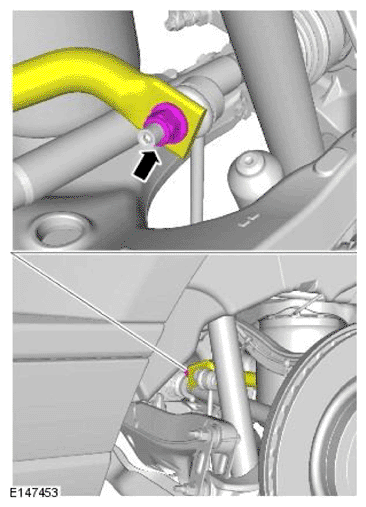

10. CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.
    NOTE:

    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the nut.
    • Release the stabilizer bar.

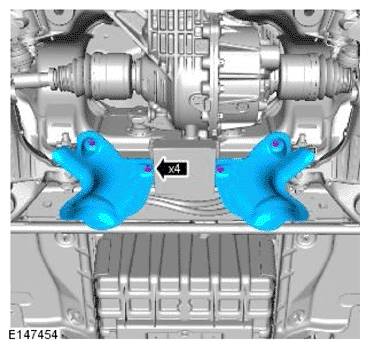

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 4 bolts.
    • Remove the 2 heatshields.

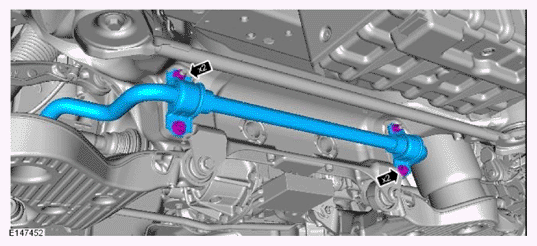

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove and discard the 2 nuts and bolts.
    • Remove the stabilizer bar.
