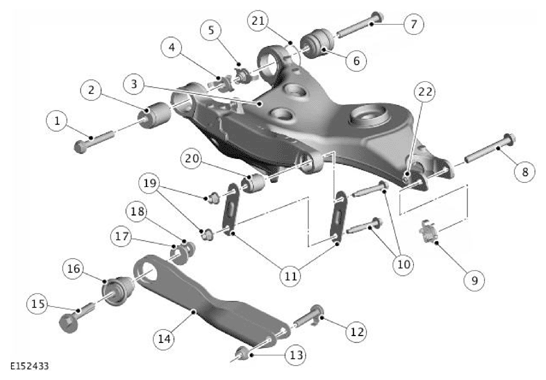

| 1 |
Bolt (lower control arm to subframe) |
| 2 |
Bush (lower control arm to subframe) |
| 3 |
Lower control arm |
| 4 |
Flag nut and washer (Lower control arm to subframe) |
| 5 |
Flag nut and washer (Lower control arm to subframe) |
| 6 |
Cross axis joint (Lower control arm to subframe) |
| 7 |
Bolt (Lower control arm to subframe) |
| 8 |
Bolt - (Lower control arm to wheel knuckle) |
| 9 |
Flag nut (Lower control arm to wheel knuckle) |
| 10 |
Bolt - link (Lower control arm to wheel knuckle) |
| 11 |
Integral link (Lower control arm to wheel knuckle) |
| 12 |
Bolt (tie arm to wheel knuckle) |
| 13 |
Nut (tie arm to wheel knuckle) |
| 14 |
Tie arm |
| 15 |
Bolt - toe adjustment (tie arm to subframe) |
| 16 |
Bush (arm to subframe) |
| 17 |
Washer - toe adjustment (tie arm to subframe) |
| 18 |
Nut - toe adjustment (tie arm to subframe) |
| 19 |
Nut - link (Lower control arm to wheel knuckle) |
| 20 |
Bush - link (Lower control arm to wheel knuckle) |
| 21 |
Retaining ring |
| 22 |
Screw flag nut to Lower control arm |
