Deployable towbar system (7-seat vehicles)

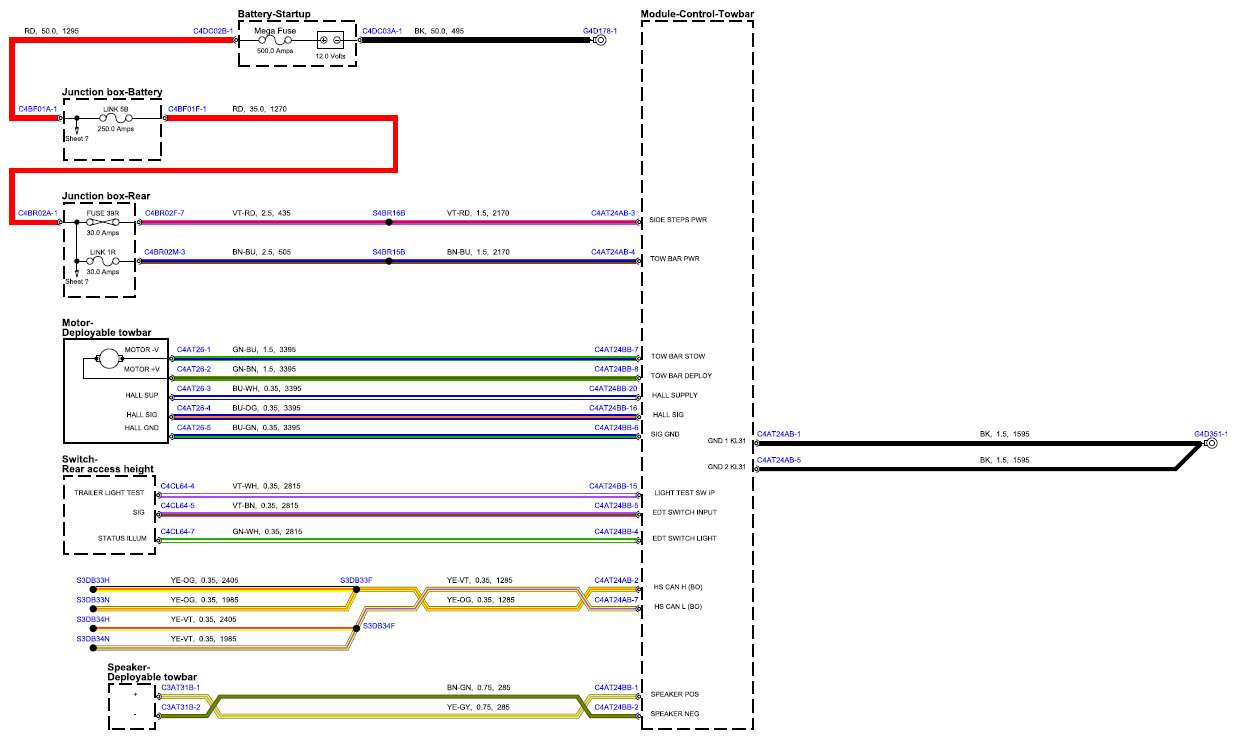

Fig 1: Deployable Towbar System (7-Seat Vehicles) Circuit Diagram

G15556851
