Range Rover Sport HST
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- Range Rover Sport L494
>>
502-03 TOWBAR Wiring Diagrams
>>
Deployable towbar system (5-seat vehicles)
Deployable towbar system (5-seat vehicles)

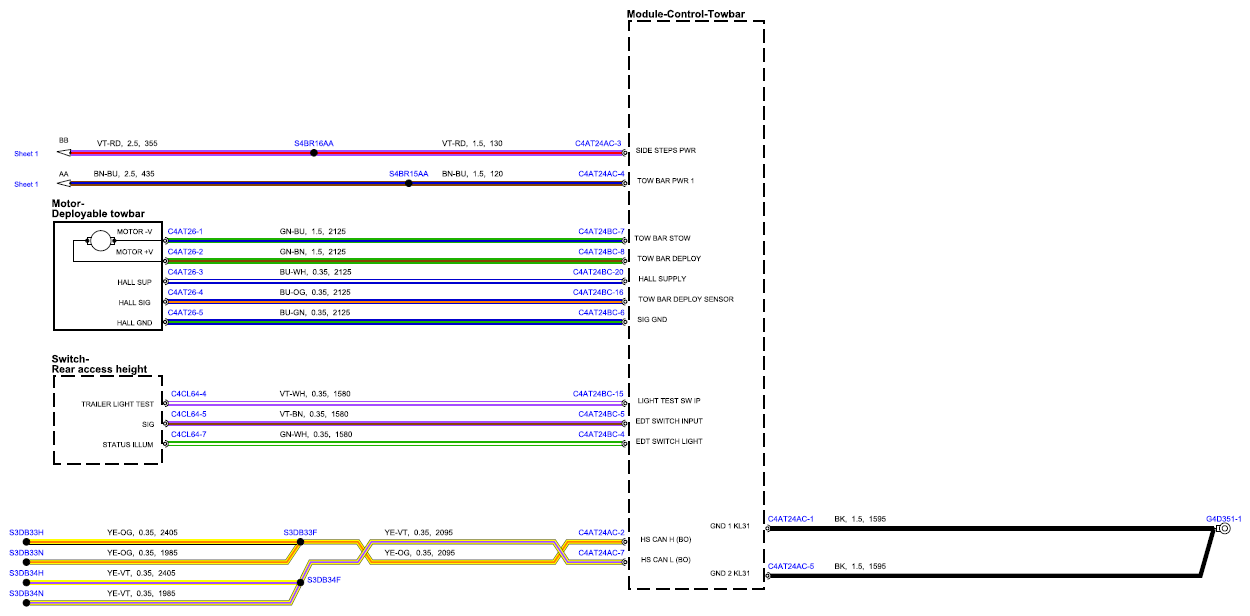

Fig 1: Deployable Towbar System (5-Seat Vehicles) Circuit Diagram (Sheet 1)

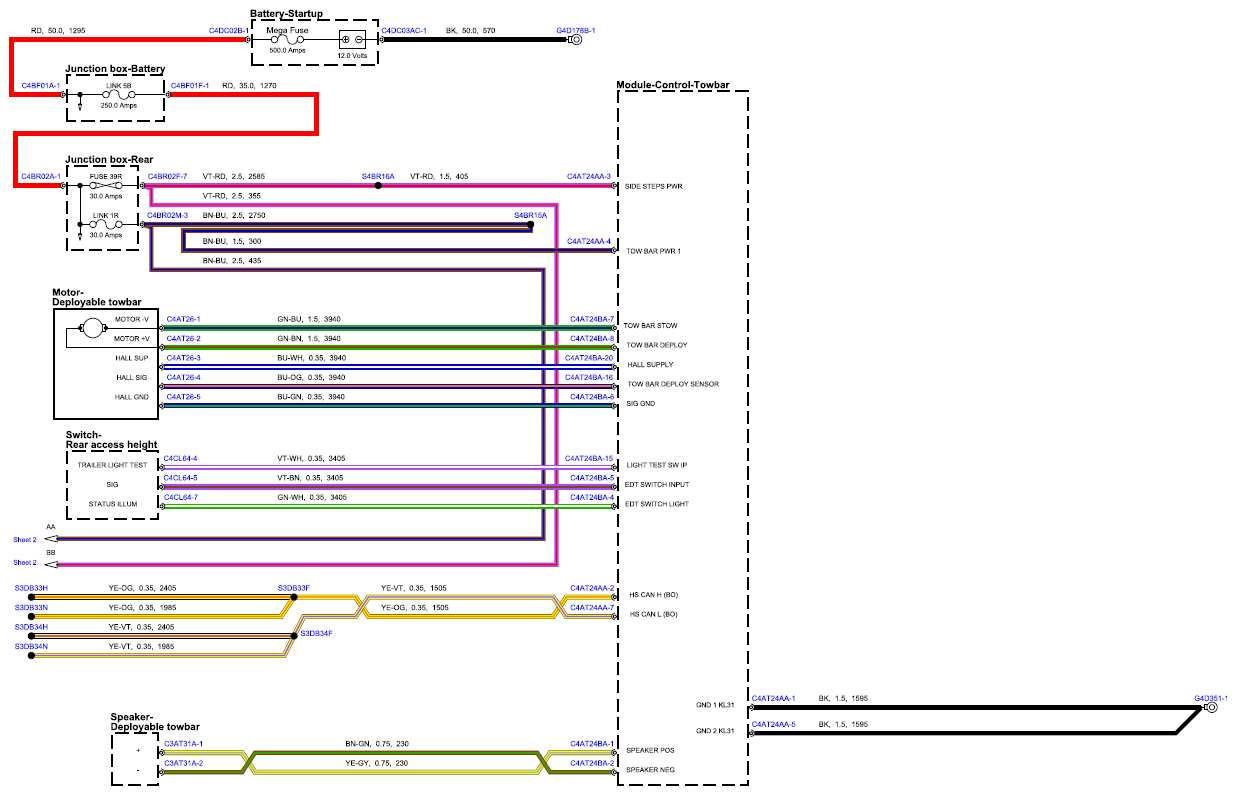

Fig 2: Deployable Towbar System (5-Seat Vehicles) Circuit Diagram (Sheet 2)
