501-20B Supplemental Restraint System Wiring Diagrams: Notes

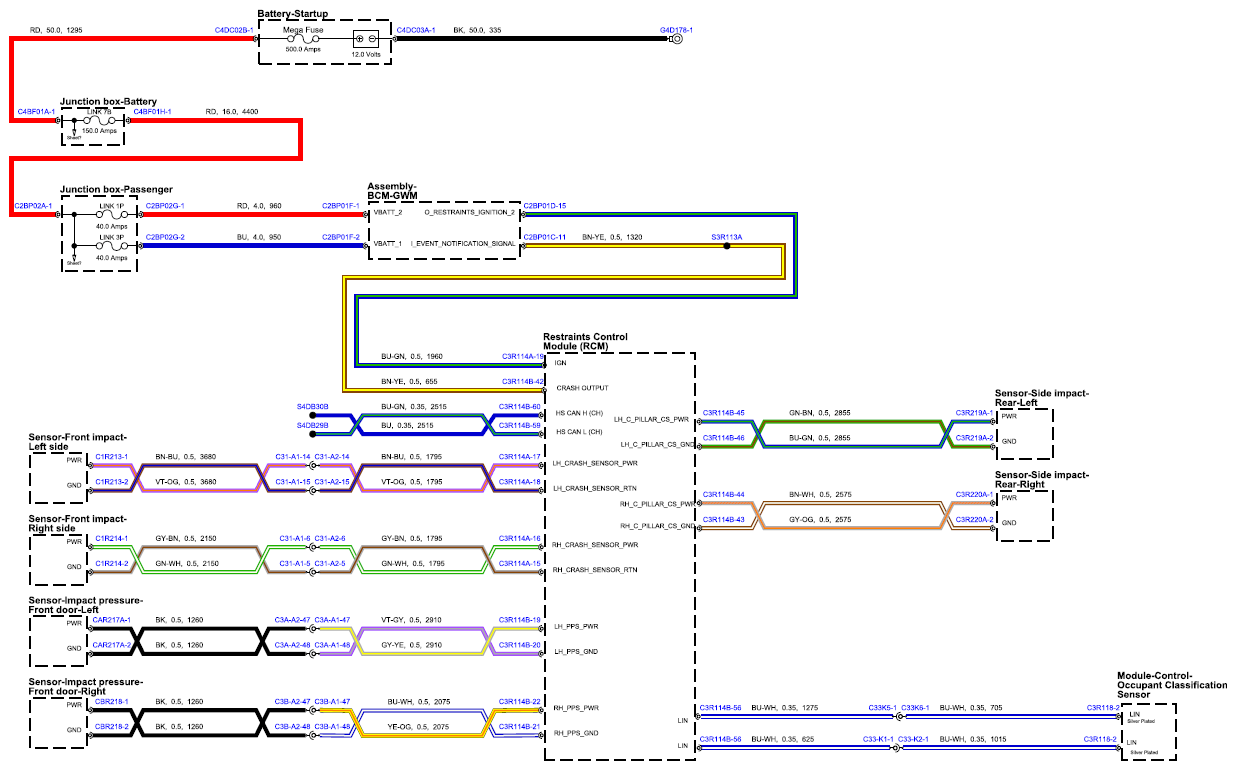

Fig 1: Supplemental Restraint System Circuit Diagram (Sheet 1)

G15556846

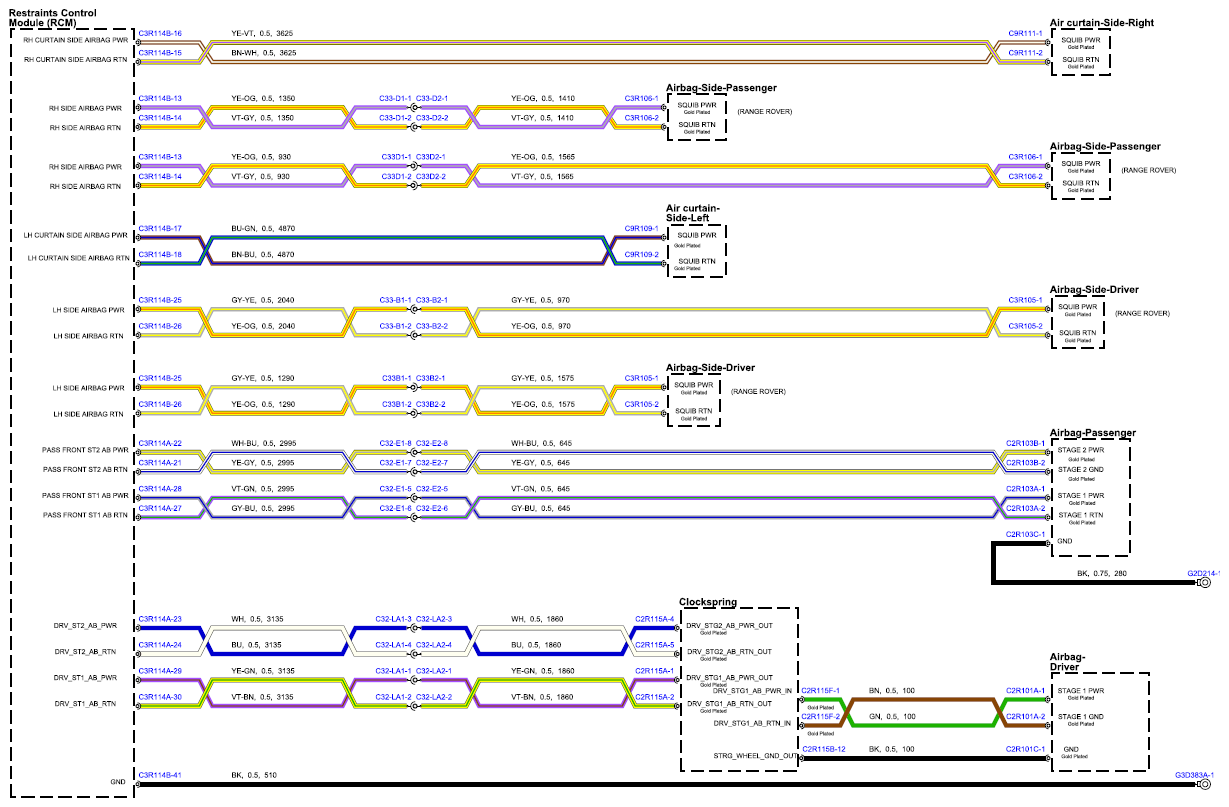

Fig 2: Supplemental Restraint System Circuit Diagram (Sheet 2)

G15556847
