501-20A SEATBELT System Wiring Diagrams: Pretensioners

Fig 1: Pretensioners Circuit Diagram (Sheet 1)

G15556842

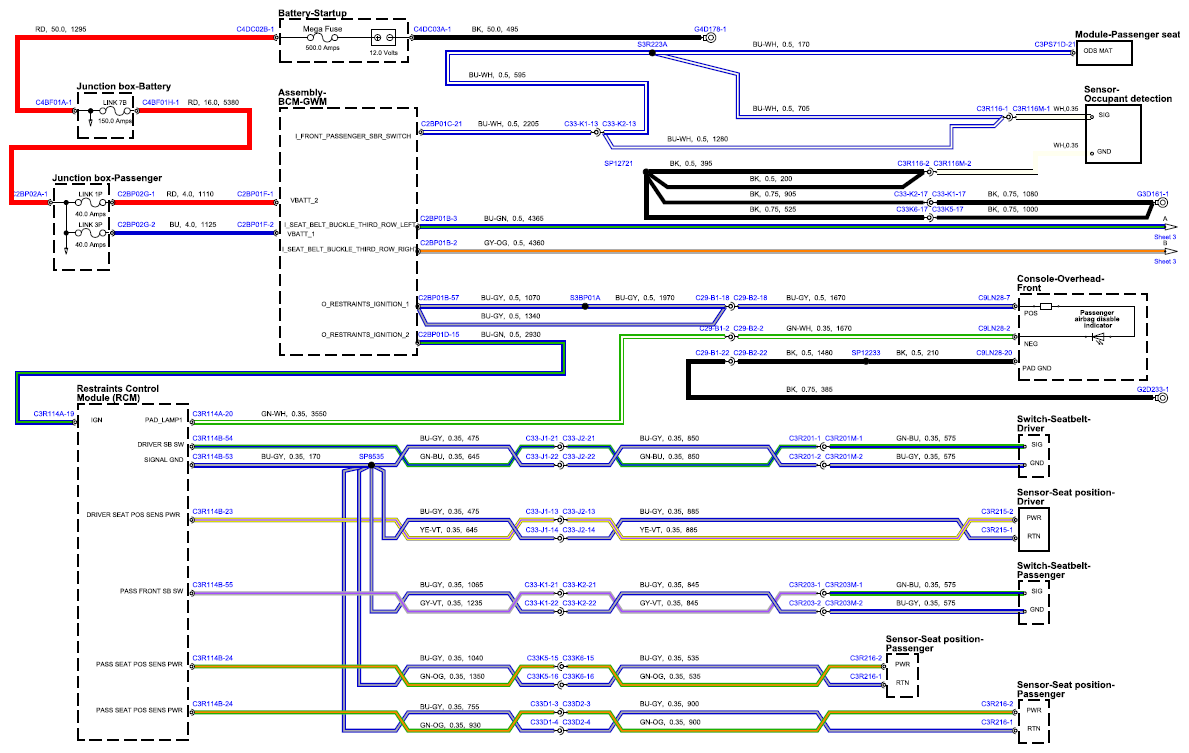

Fig 2: Pretensioners Circuit Diagram (Sheet 2)

G15556843

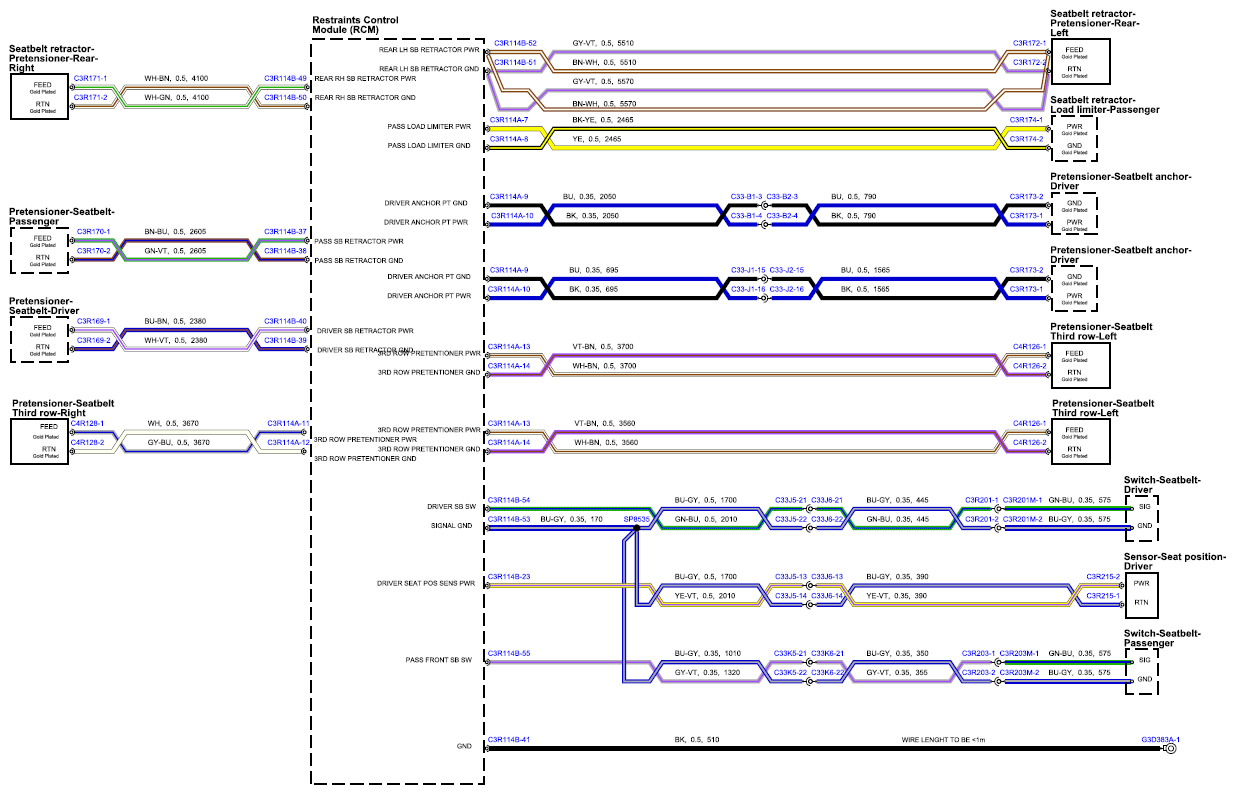

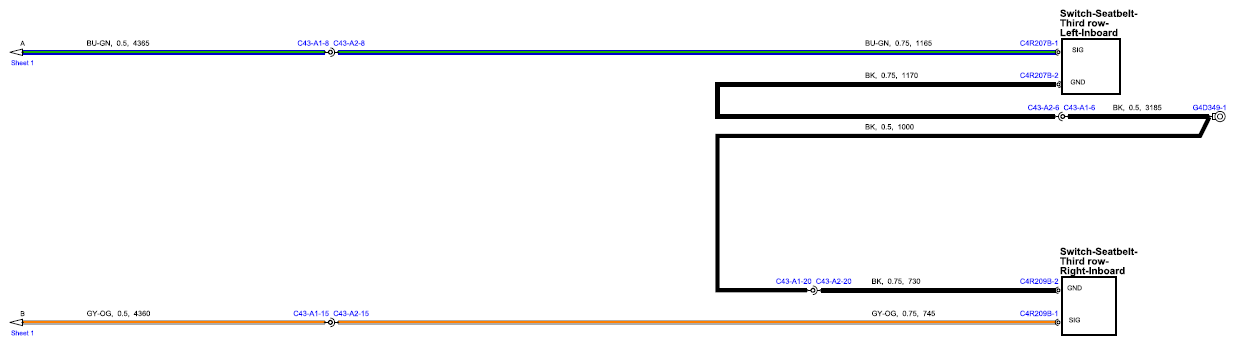

Fig 3: Pretensioners Circuit Diagram (Sheet 3)

G15556844
