OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-17 Roof Opening Panel Wiring Diagrams
>>
Roof opening panel and sun blind
Roof opening panel and sun blind

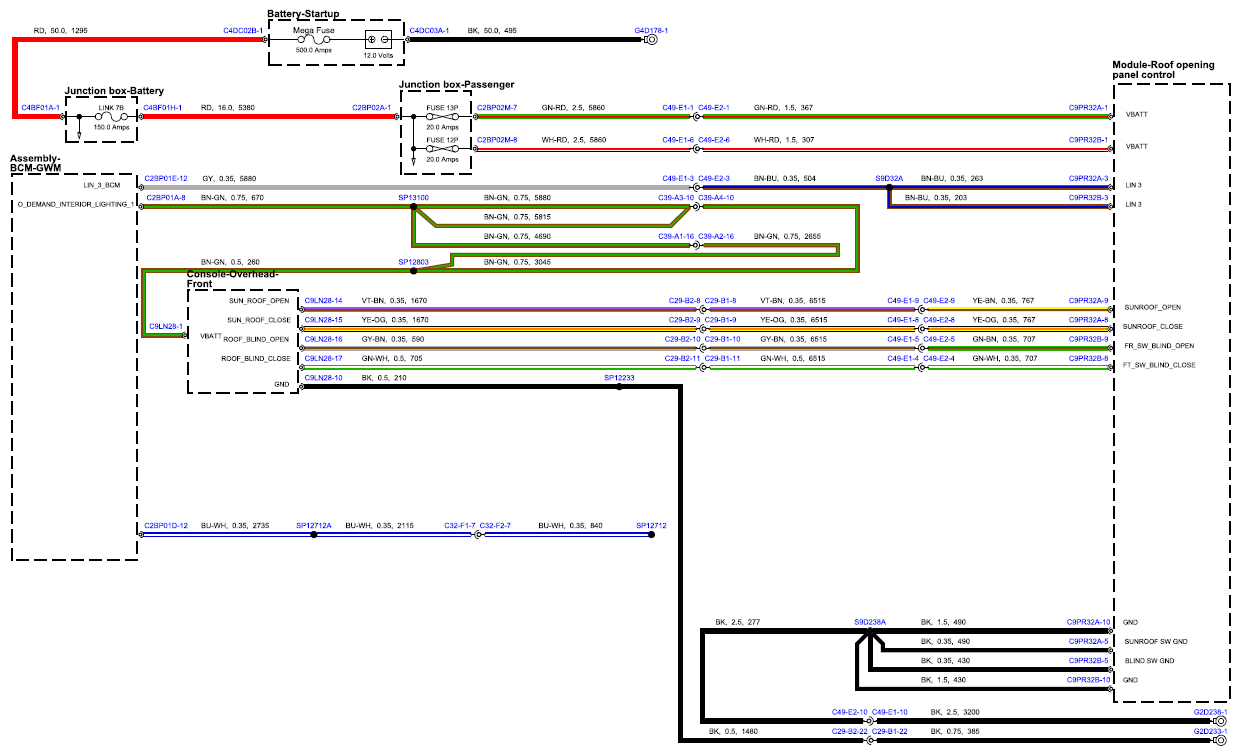

Fig 1: Roof Opening Panel And Sun Blind Circuit Diagram (Sheet 1)

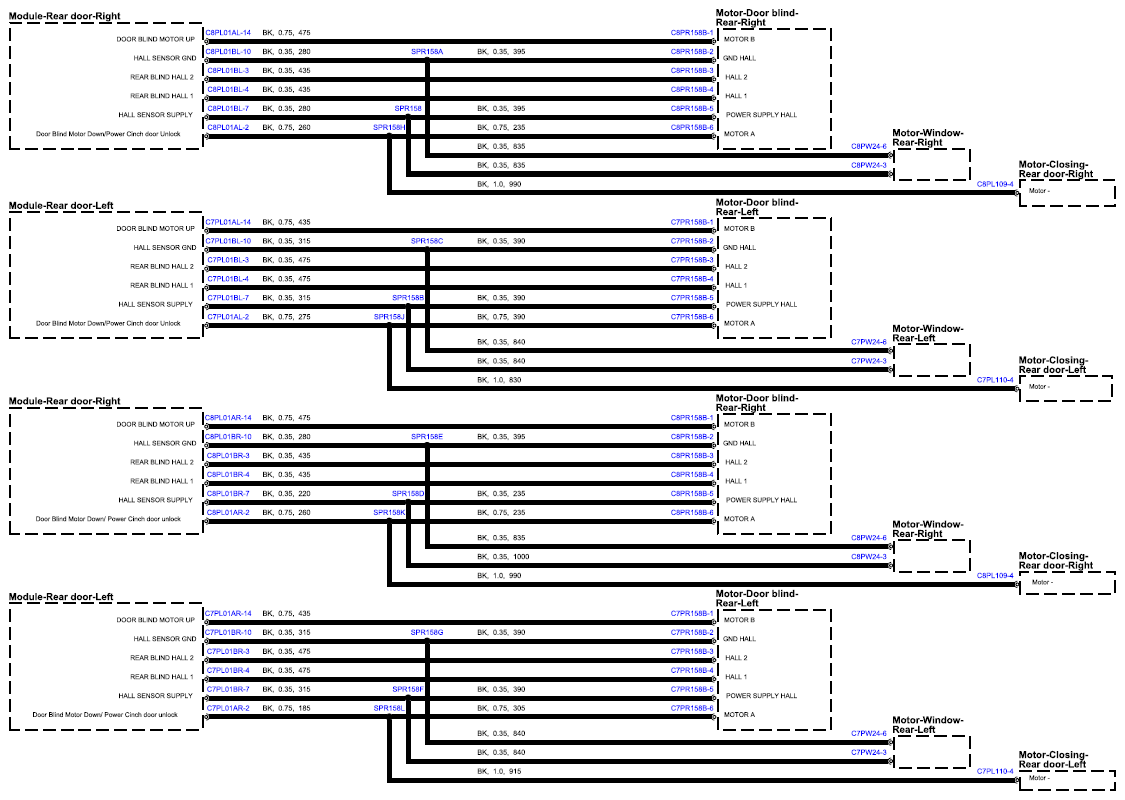

Fig 2: Roof Opening Panel And Sun Blind Circuit Diagram (Sheet 2)
