501-16 Wipers And Washers Wiring Diagrams: Notes

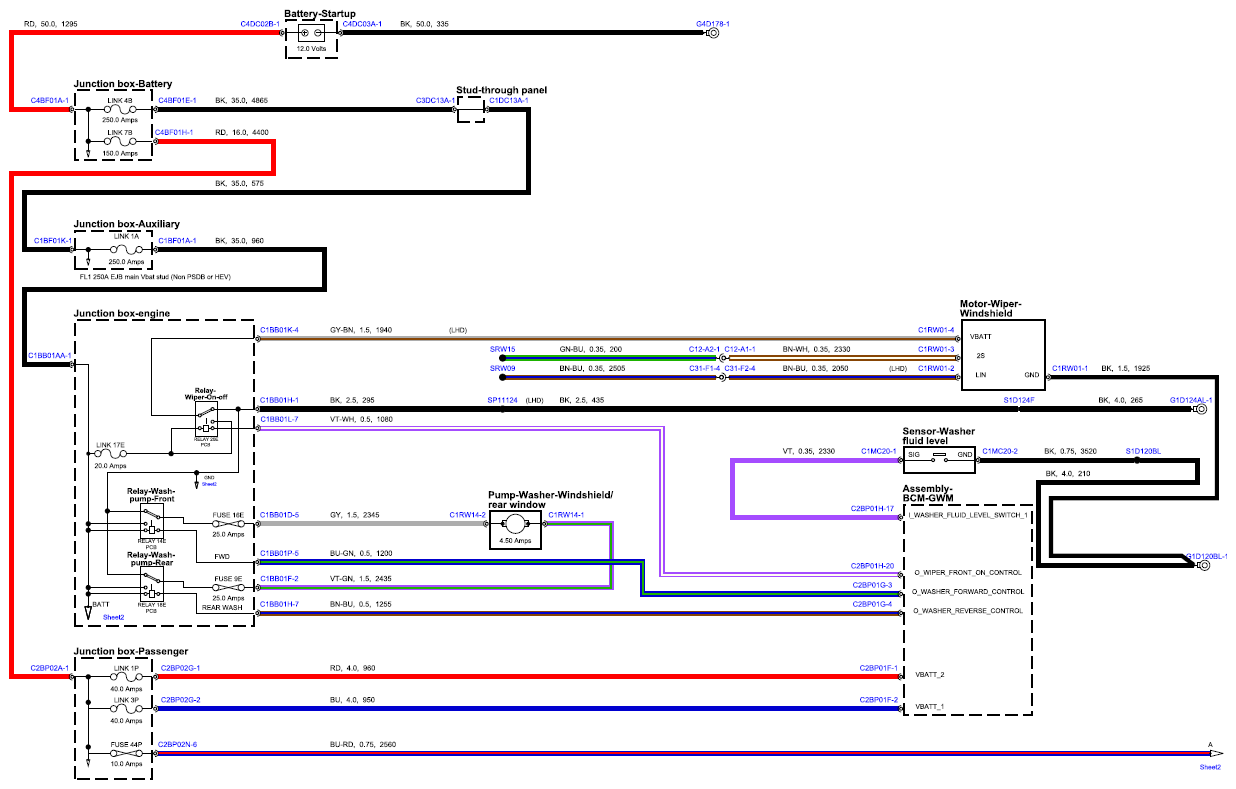

Fig 1: Wipers And Washers Circuit Diagram (Sheet 1)

G15556837

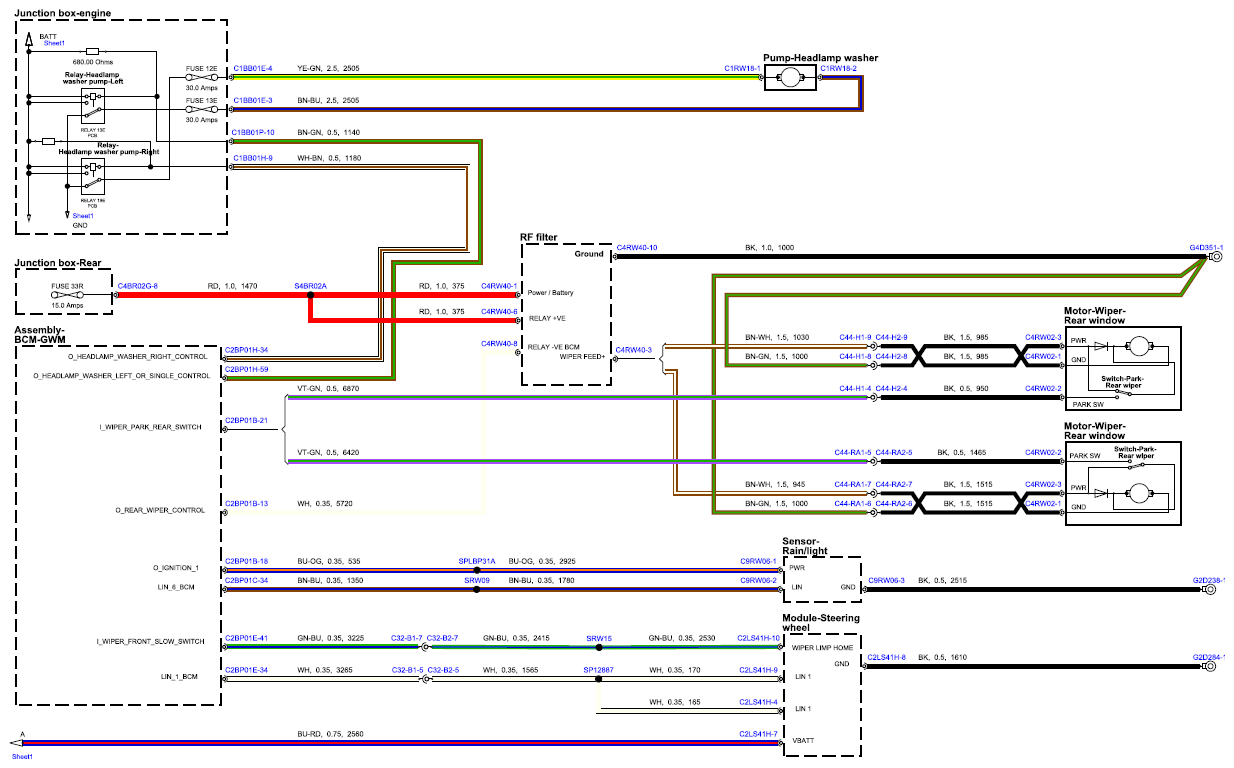

Fig 2: Wipers And Washers Circuit Diagram (Sheet 2)

G15556838
