Tailgate - Powered (Range Rover Sport)

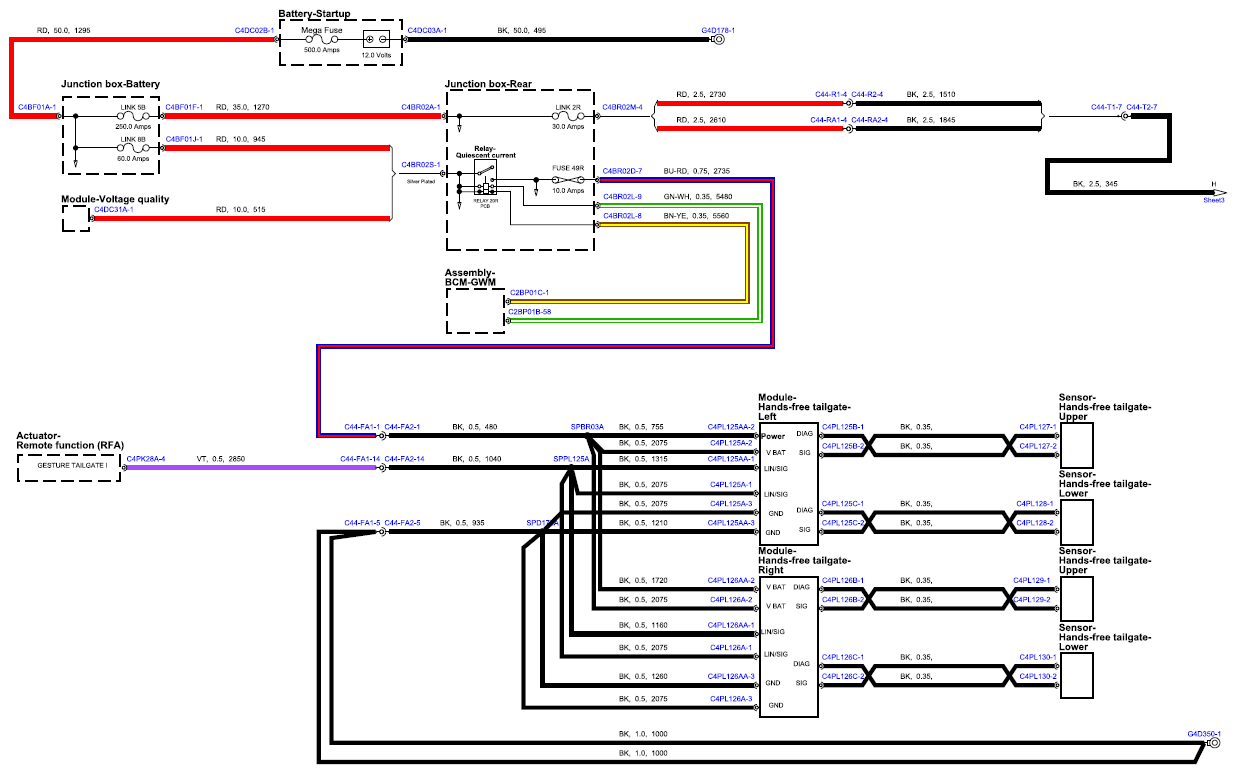

Fig 1: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 1)
G15556834

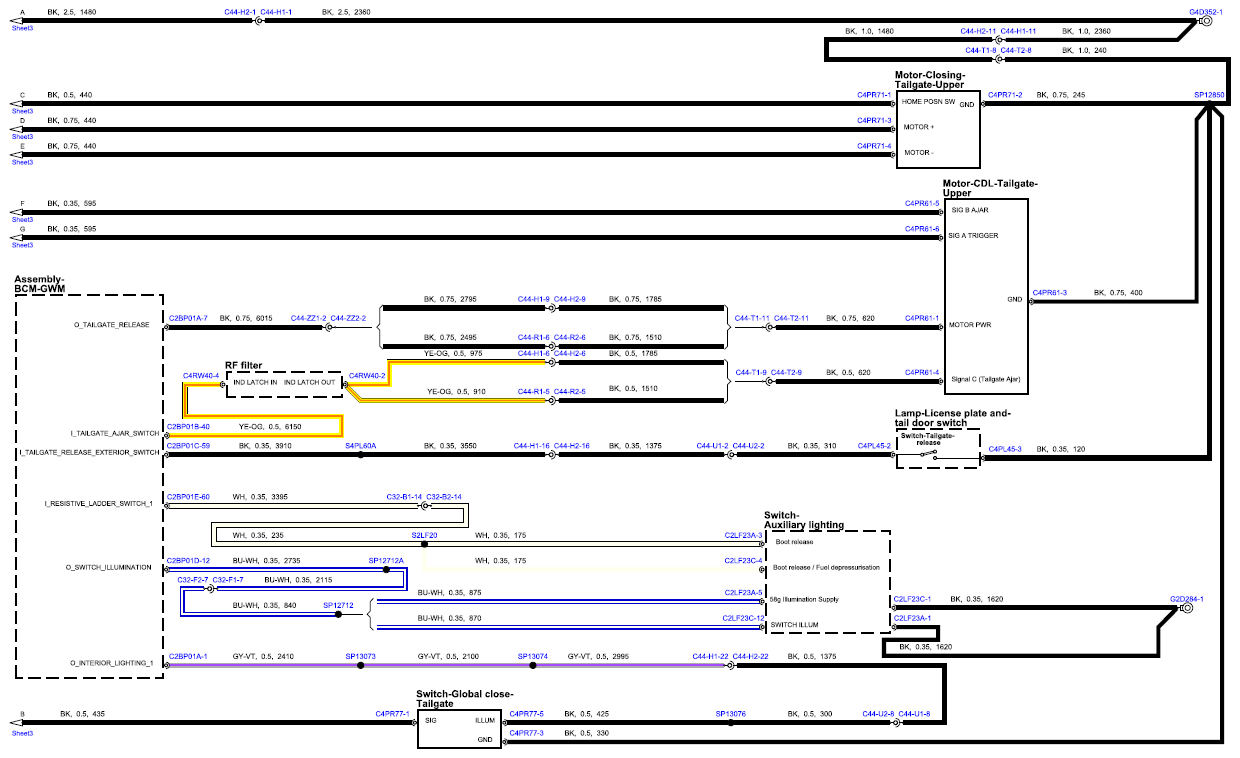

Fig 2: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 2)
G15556835

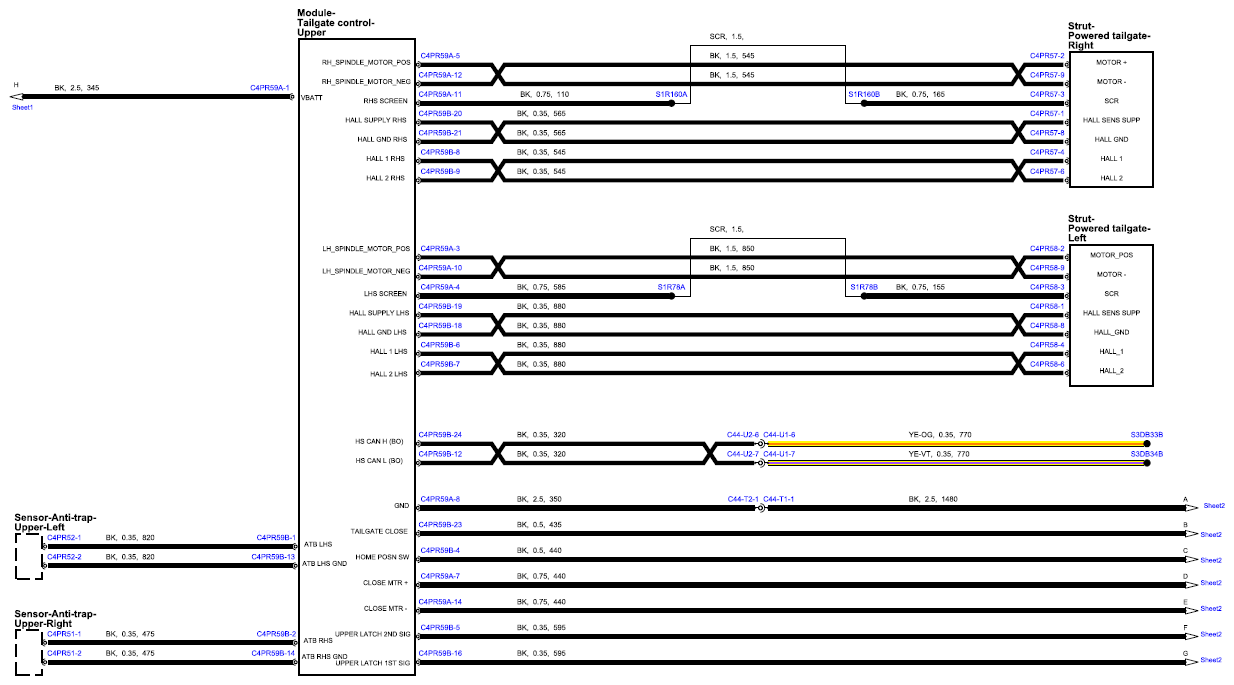

Fig 3: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 3)
G15556836
