Glovebox release (Range Rover Sport)

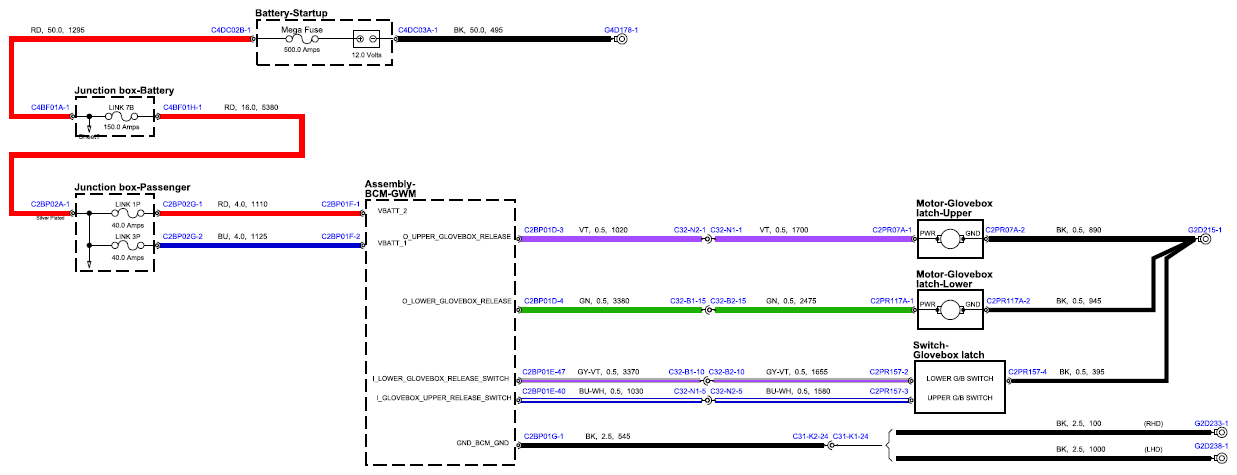

Fig 1: Glovebox Release (Range Rover Sport) Circuit Diagram

G15556830
