OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-14 Handles, Locks, Latches And Entry Systems Wiring Diagrams
>>
Doors, windows, mirrors
Doors, windows, mirrors

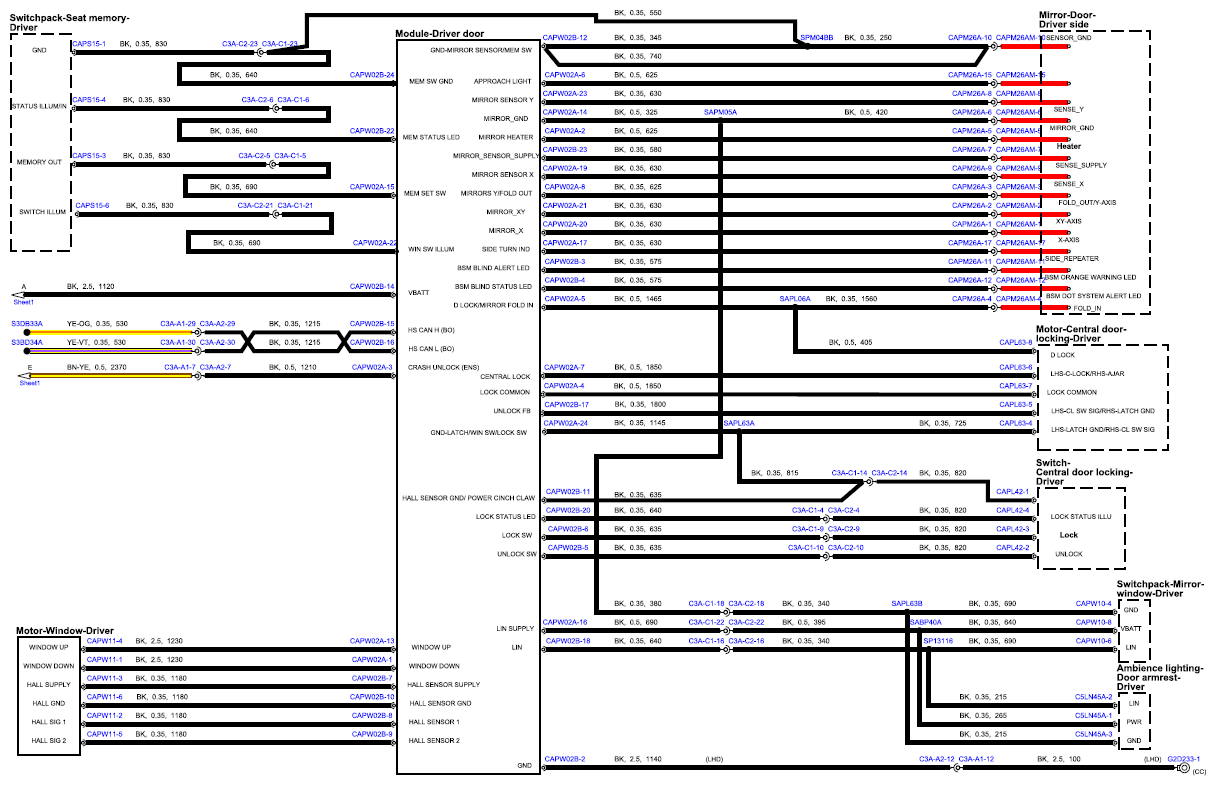

Fig 1: Doors, Windows, Mirrors Circuit Diagram (Sheet 1)

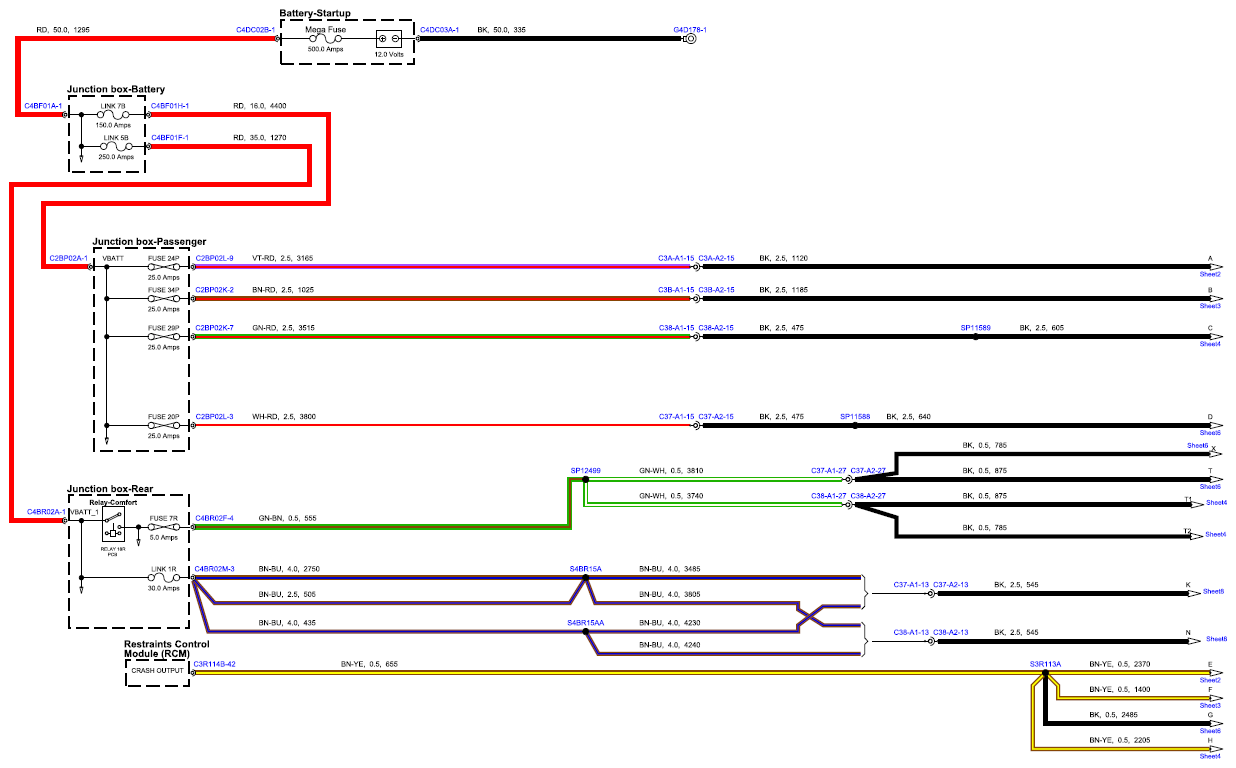

Fig 2: Doors, Windows, Mirrors Circuit Diagram (Sheet 2)

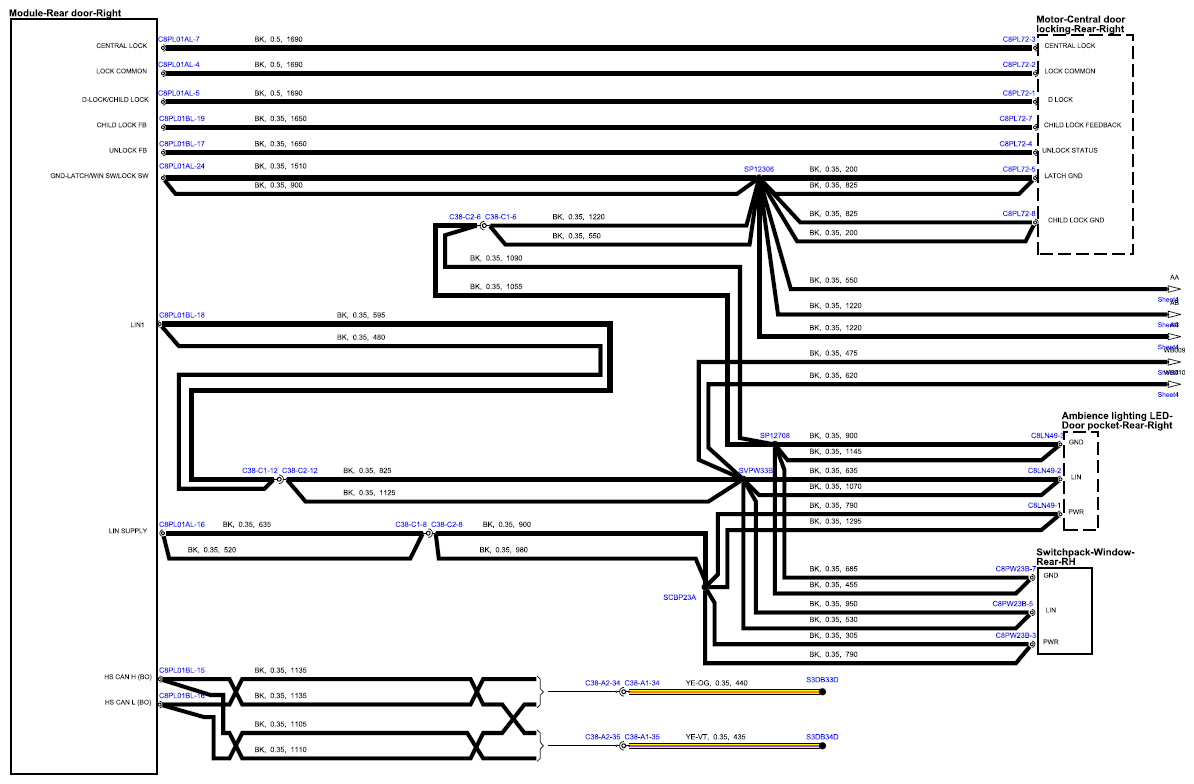

Fig 3: Doors, Windows, Mirrors Circuit Diagram (Sheet 3)

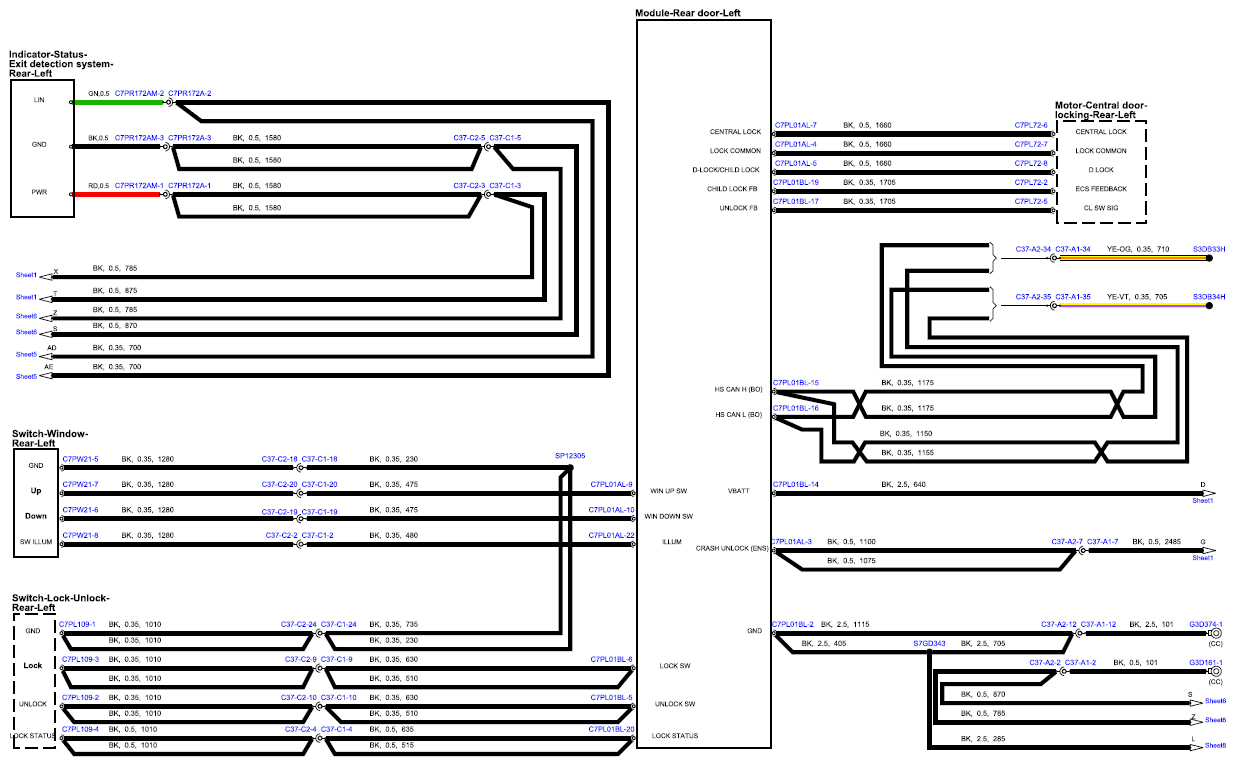

Fig 4: Doors, Windows, Mirrors Circuit Diagram (Sheet 4)

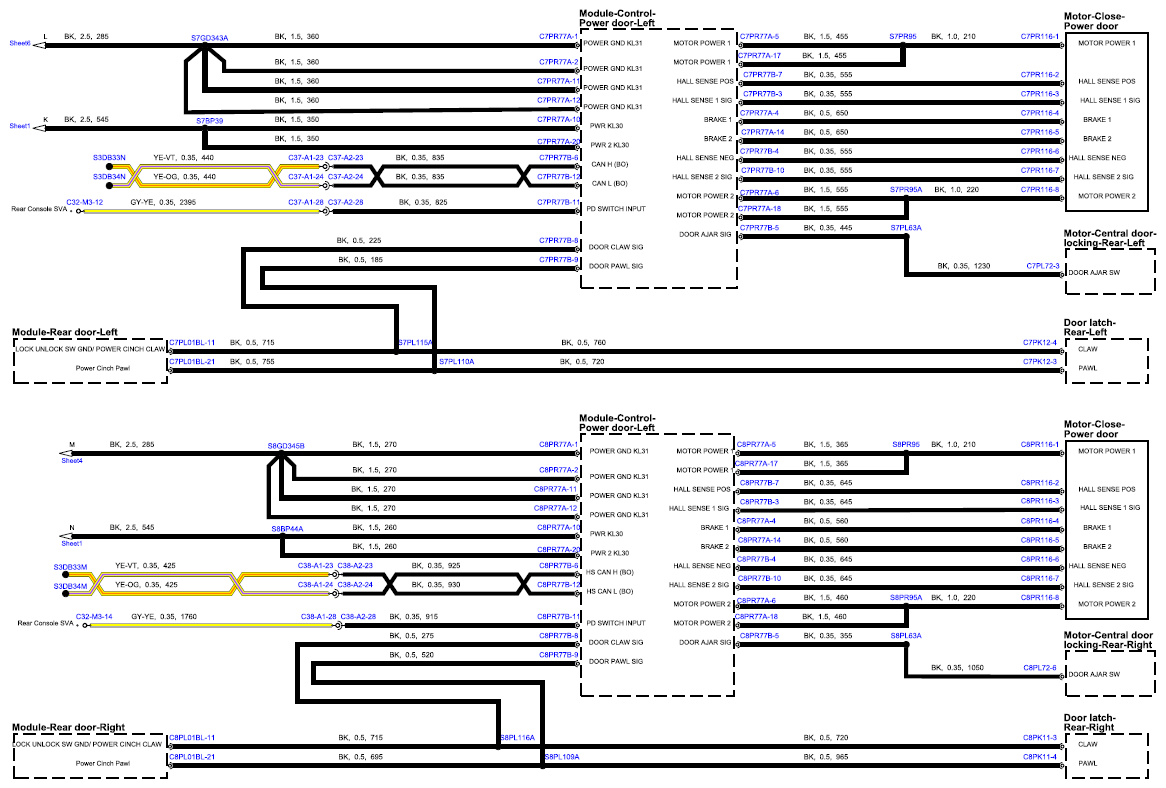

Fig 5: Doors, Windows, Mirrors Circuit Diagram (Sheet 5)

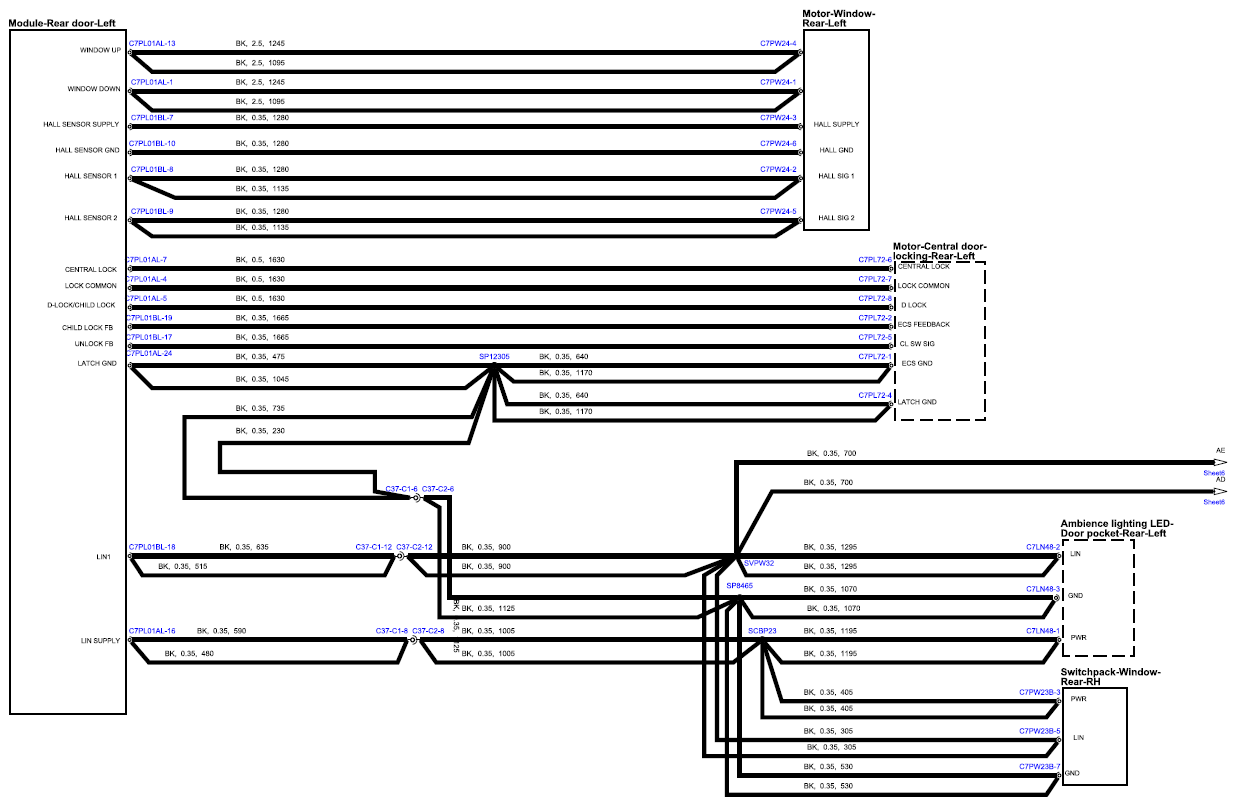

Fig 6: Doors, Windows, Mirrors Circuit Diagram (Sheet 6)

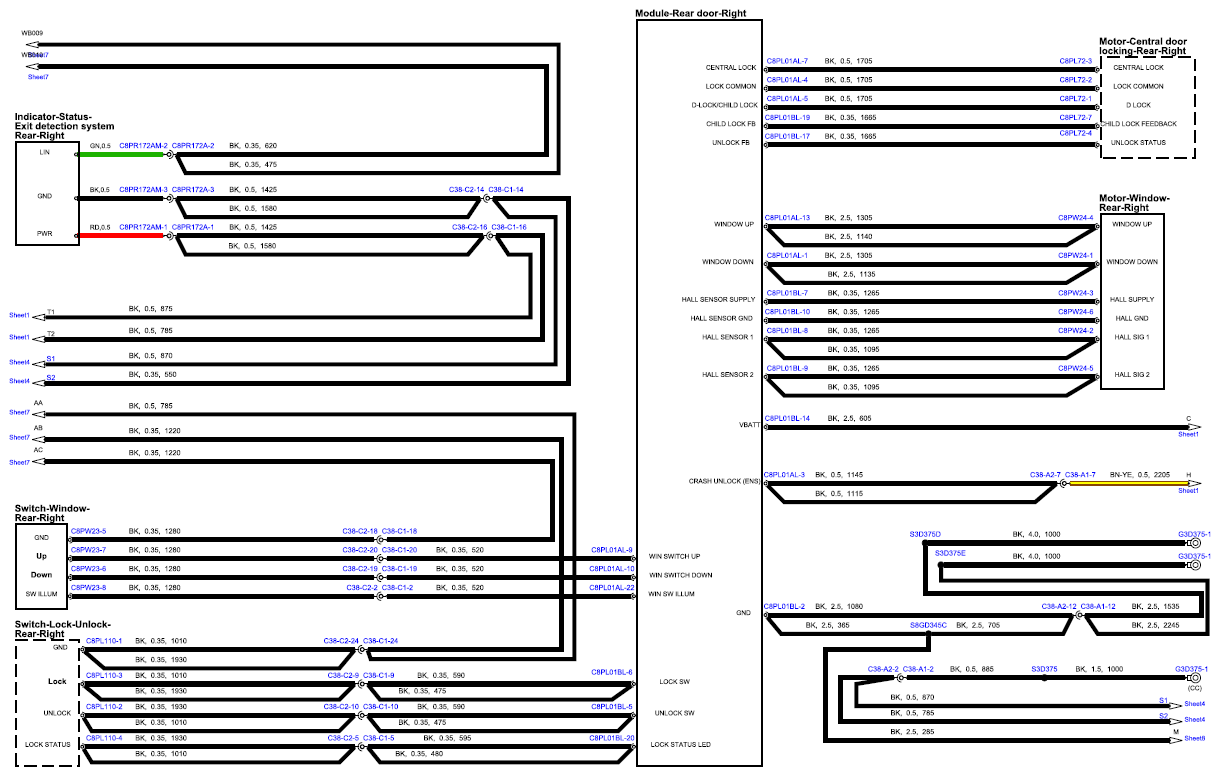

Fig 7: Doors, Windows, Mirrors Circuit Diagram (Sheet 7)

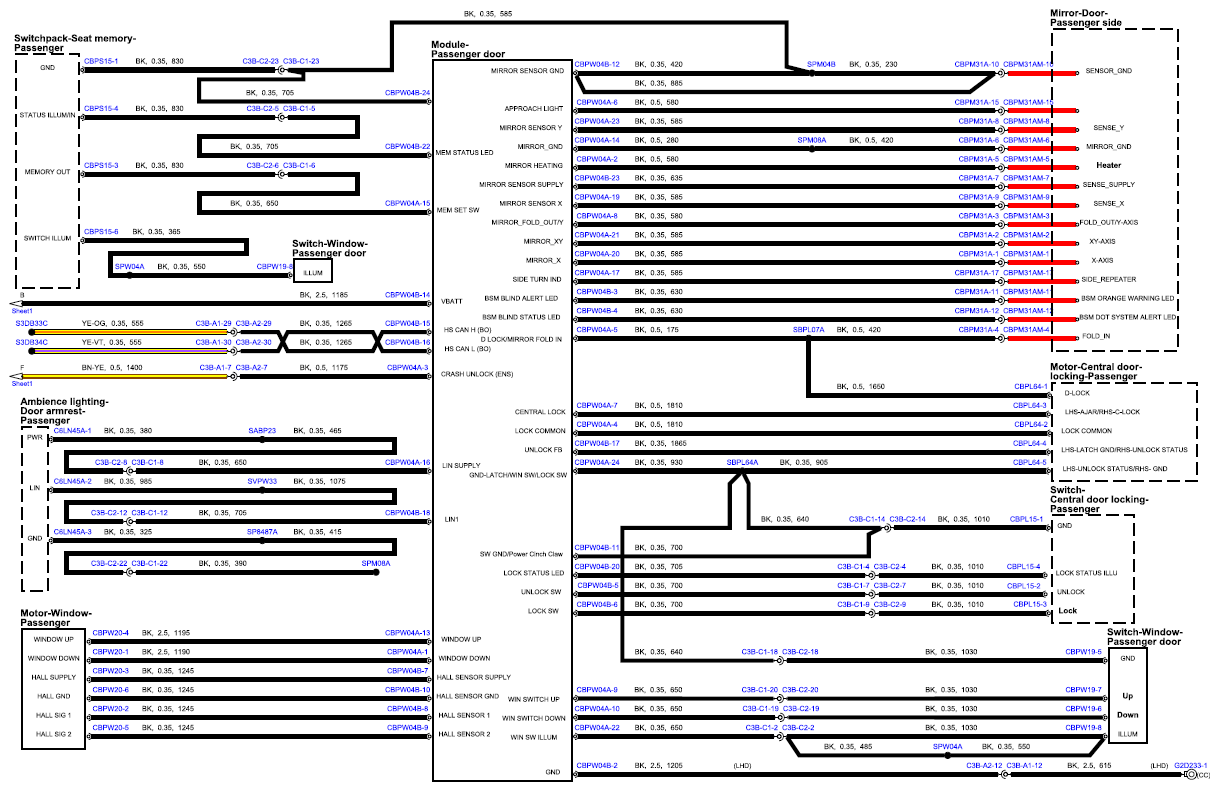

Fig 8: Doors, Windows, Mirrors Circuit Diagram (Sheet 8)
