Accessory socket(s)

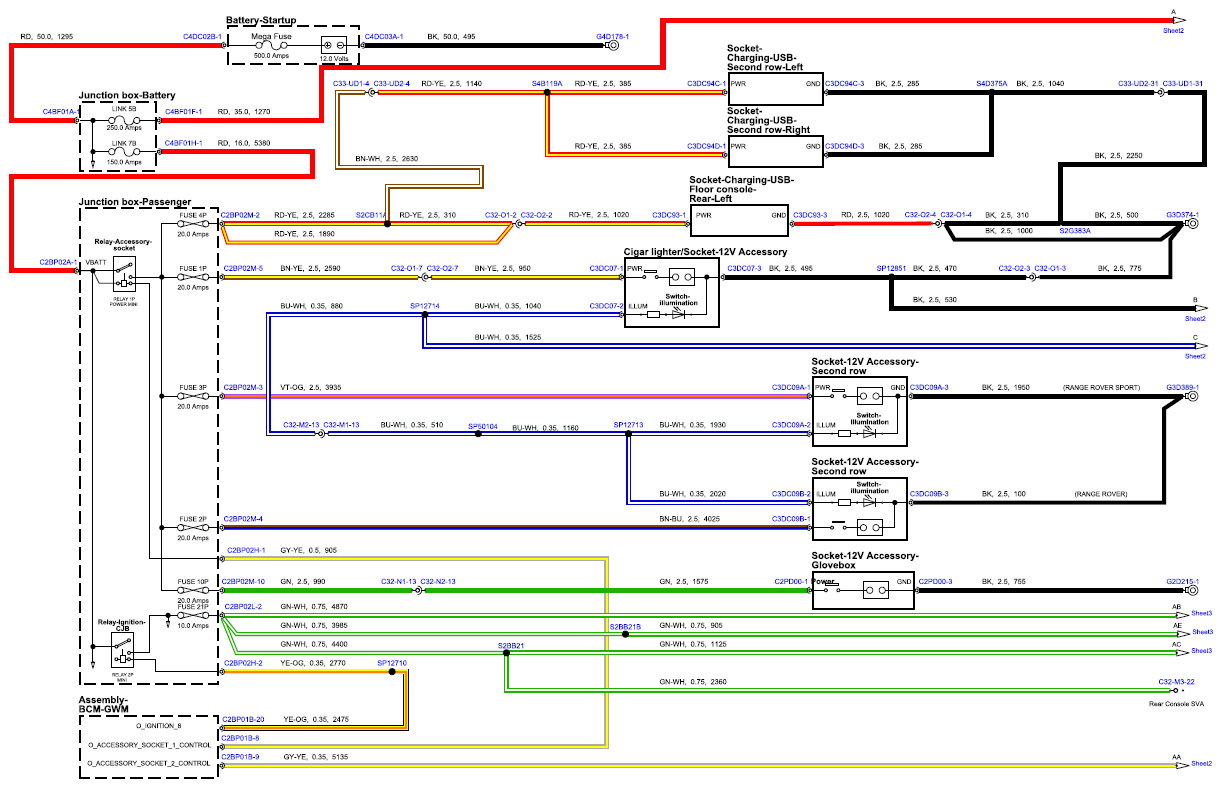

Fig 1: Accessory Socket(s) Circuit Diagram (Sheet 1)
G15556801

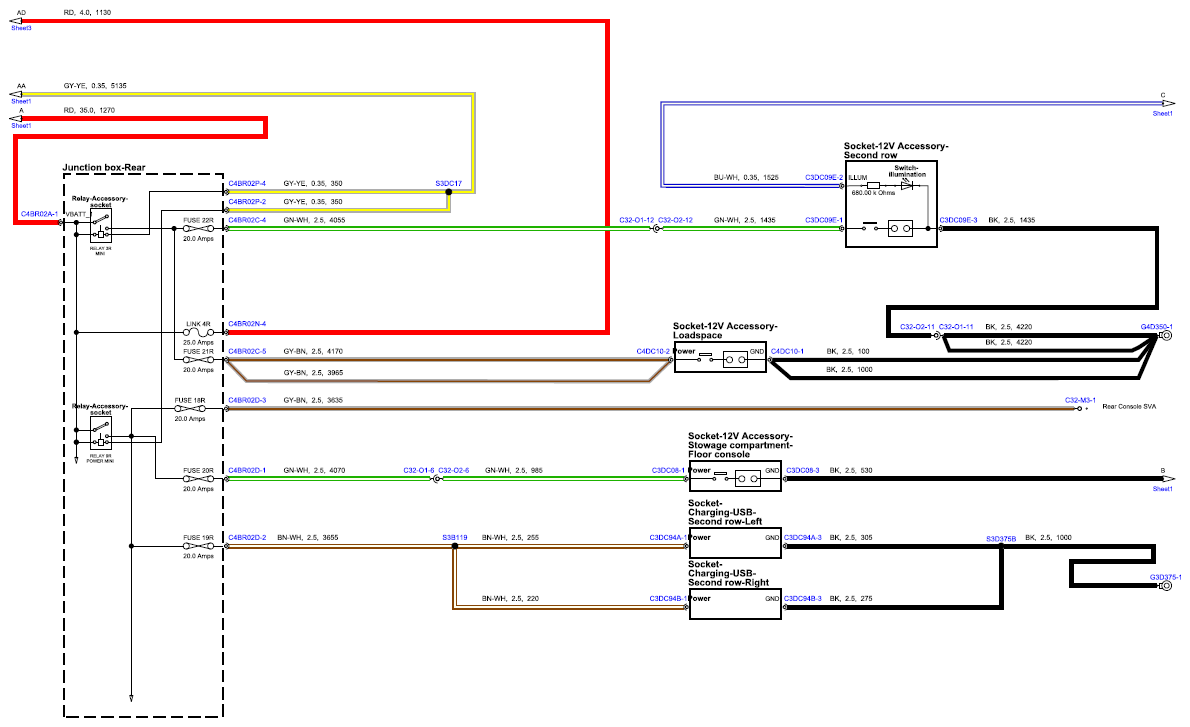

Fig 2: Accessory Socket(s) Circuit Diagram (Sheet 2)
G15556802

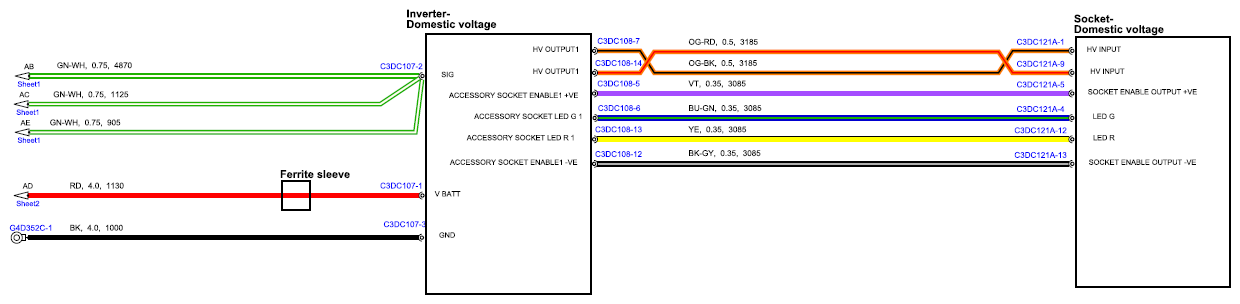

Fig 3: Accessory Socket(s) Circuit Diagram (Sheet 3)
G15556803

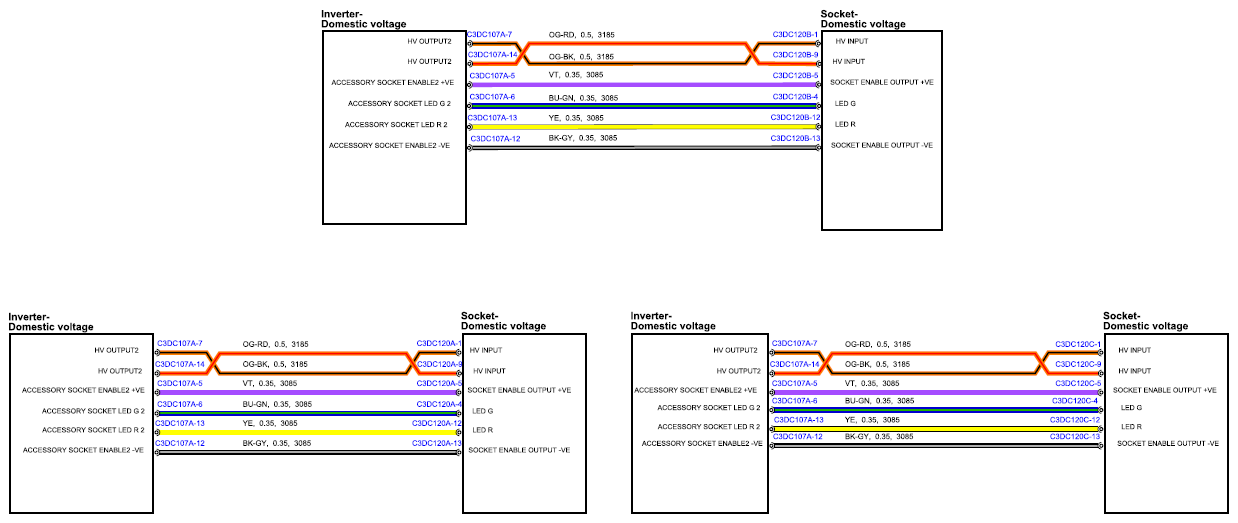

Fig 4: Accessory Socket(s) Circuit Diagram (Sheet 4)
G15556804
