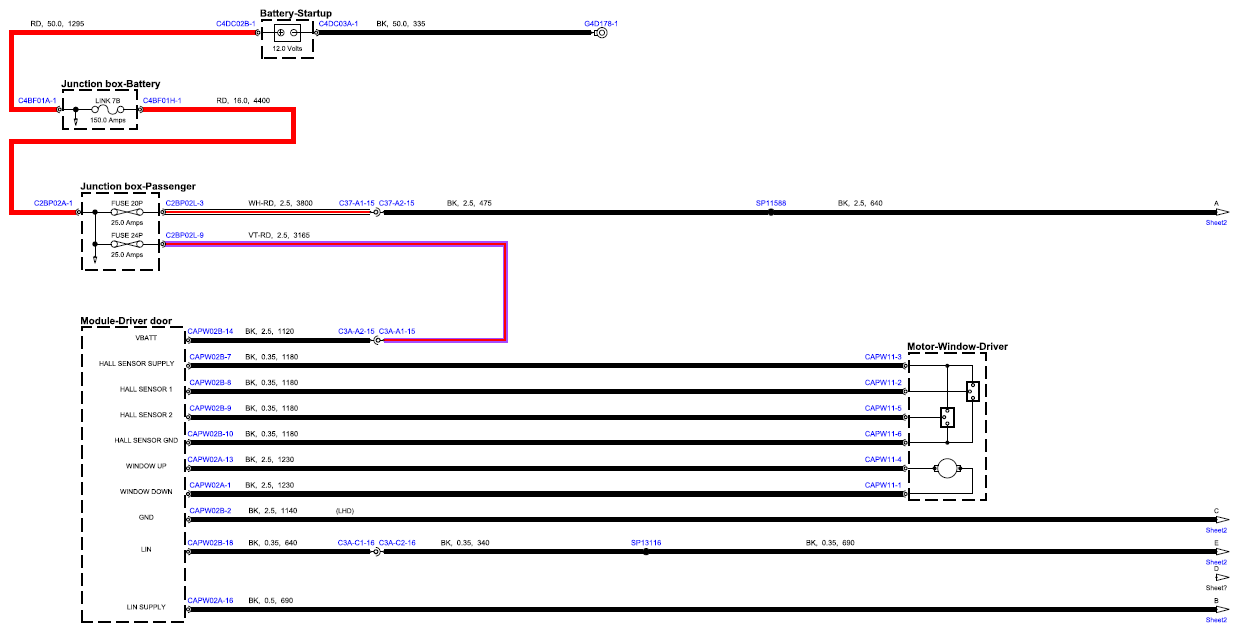

Home >> Land Rover >> 2022 >> Range Rover Sport HST >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover Sport L494 >> 501-11 Glass, Frames And Mechanisms Wiring Diagrams >> Window lift - Driver side
