Second Row Executive Seat - Right

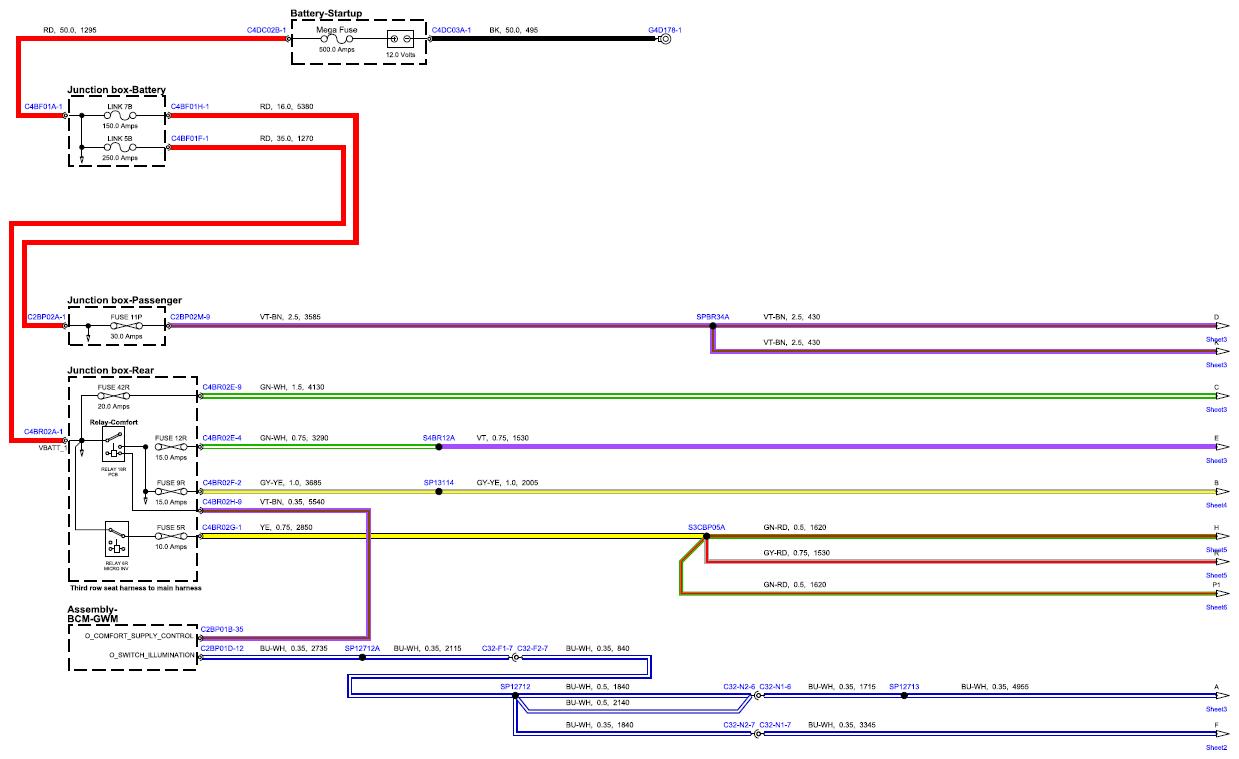

Fig 1: Second Row Executive Seat Circuit Diagram - Right (Sheet 1)
G15556786

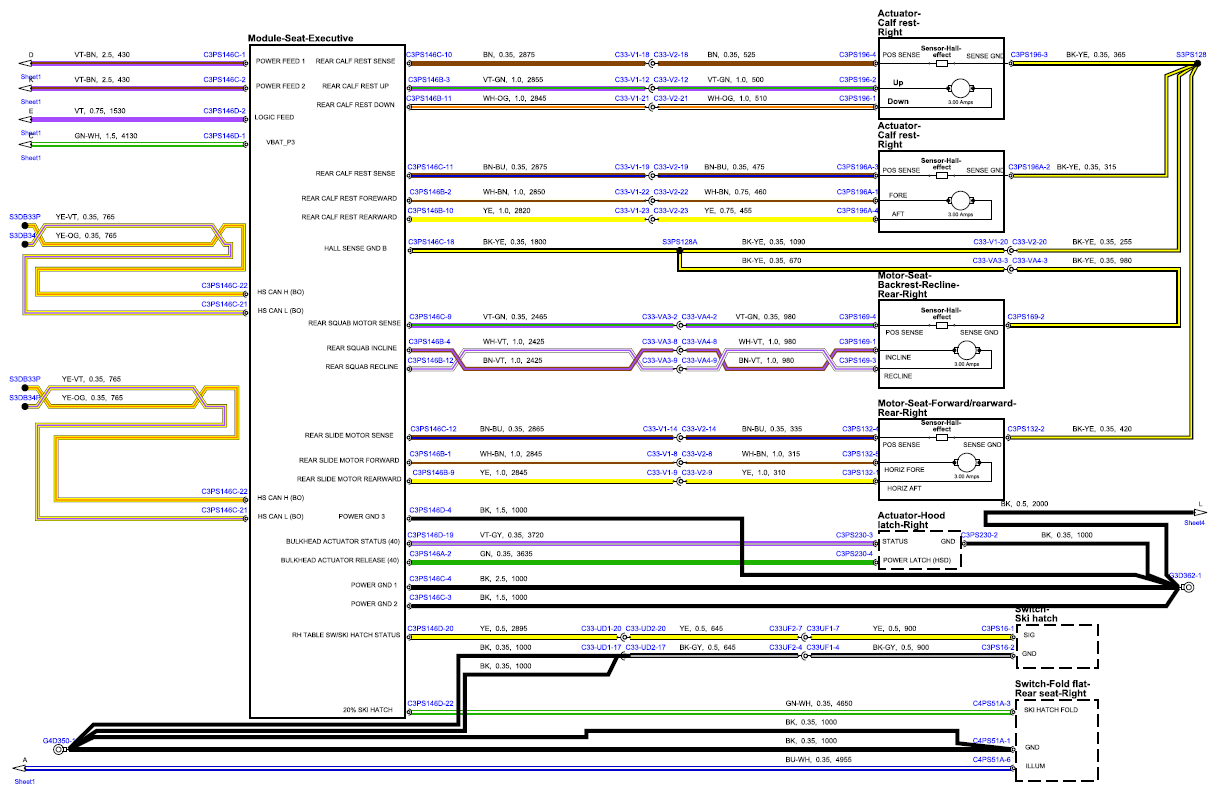

Fig 2: Second Row Executive Seat Circuit Diagram - Right (Sheet 2)
G15556787

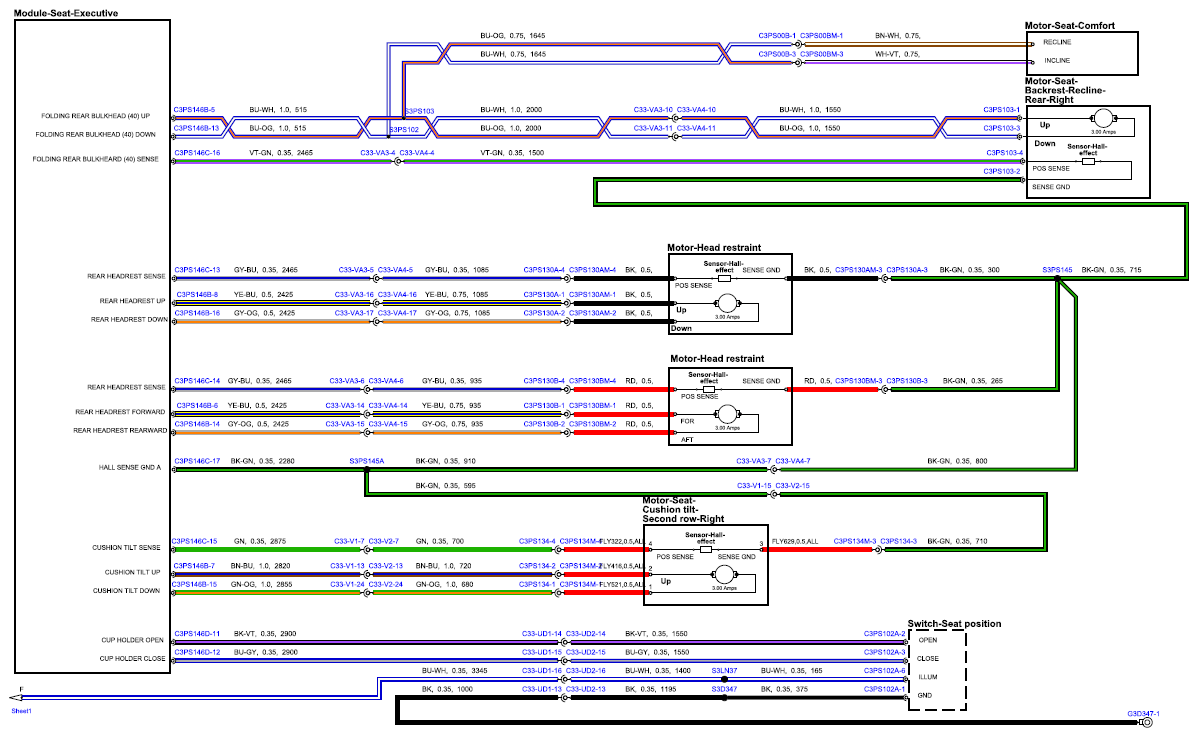

Fig 3: Second Row Executive Seat Circuit Diagram - Right (Sheet 3)
G15556788

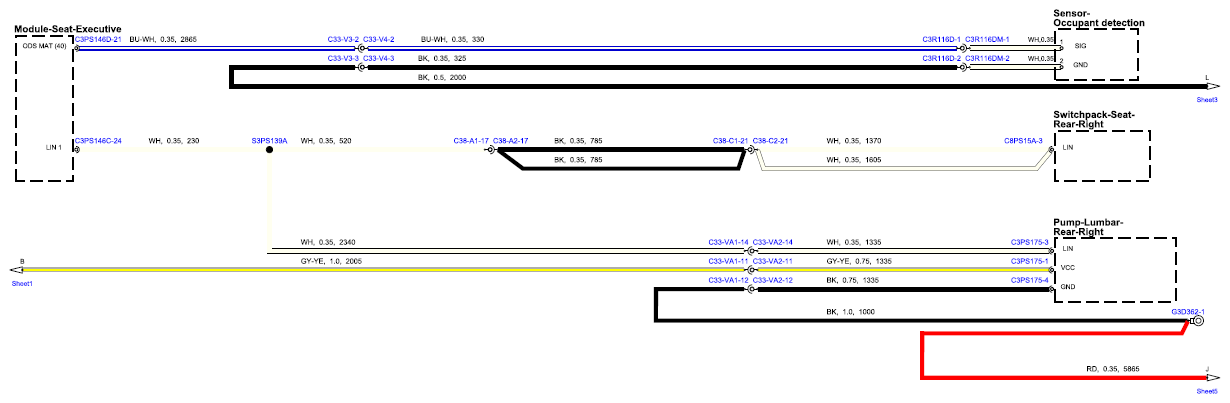

Fig 4: Second Row Executive Seat Circuit Diagram - Right (Sheet 4)
G15556789

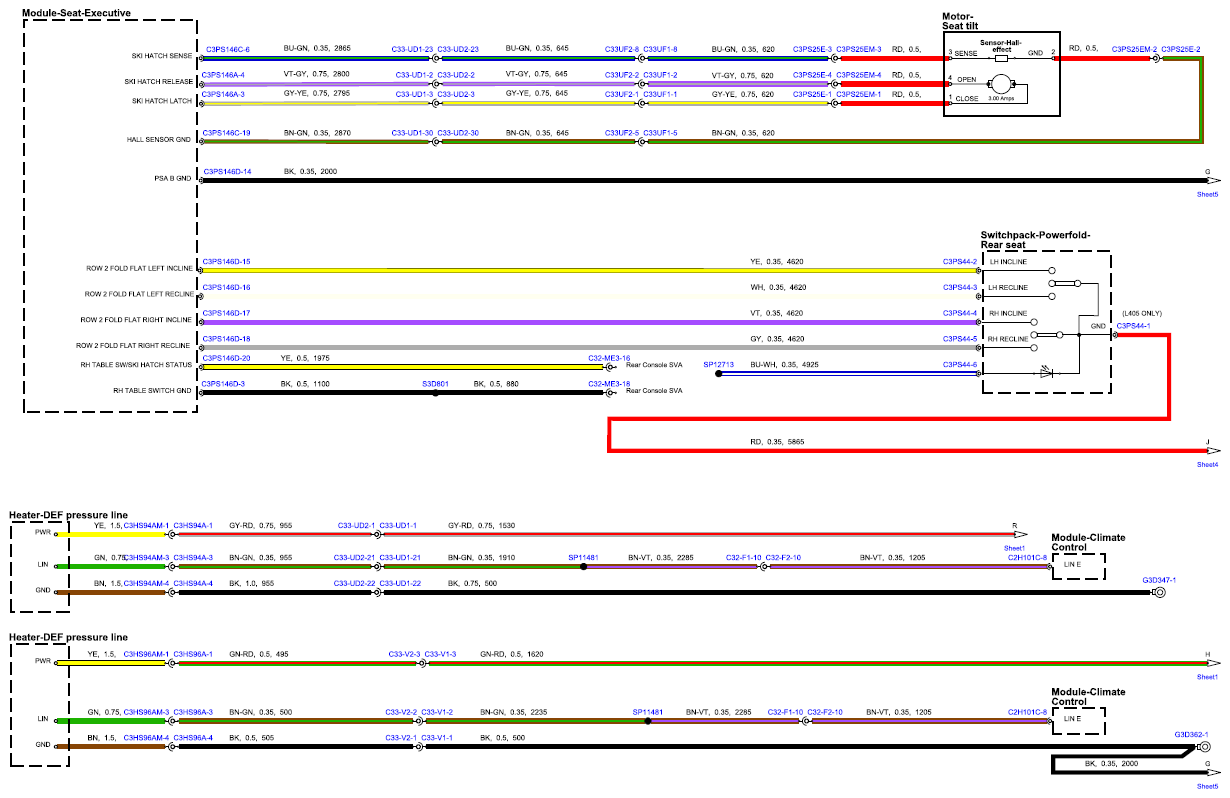

Fig 5: Second Row Executive Seat Circuit Diagram - Right (Sheet 5)
G15556790

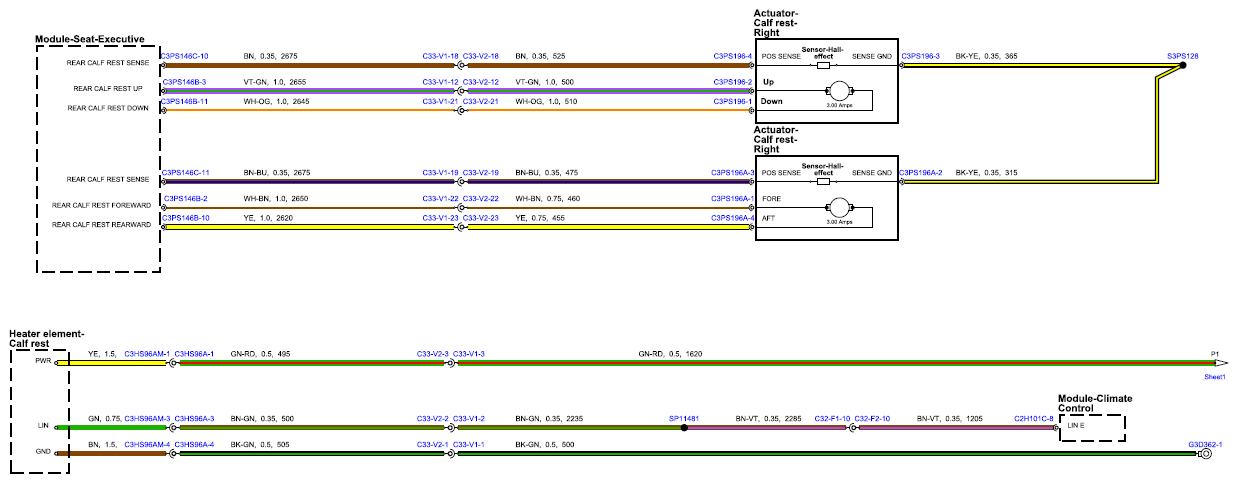

Fig 6: Second Row Executive Seat Circuit Diagram - Right (Sheet 6)
G15556791
