Second Row Executive Seat - Left

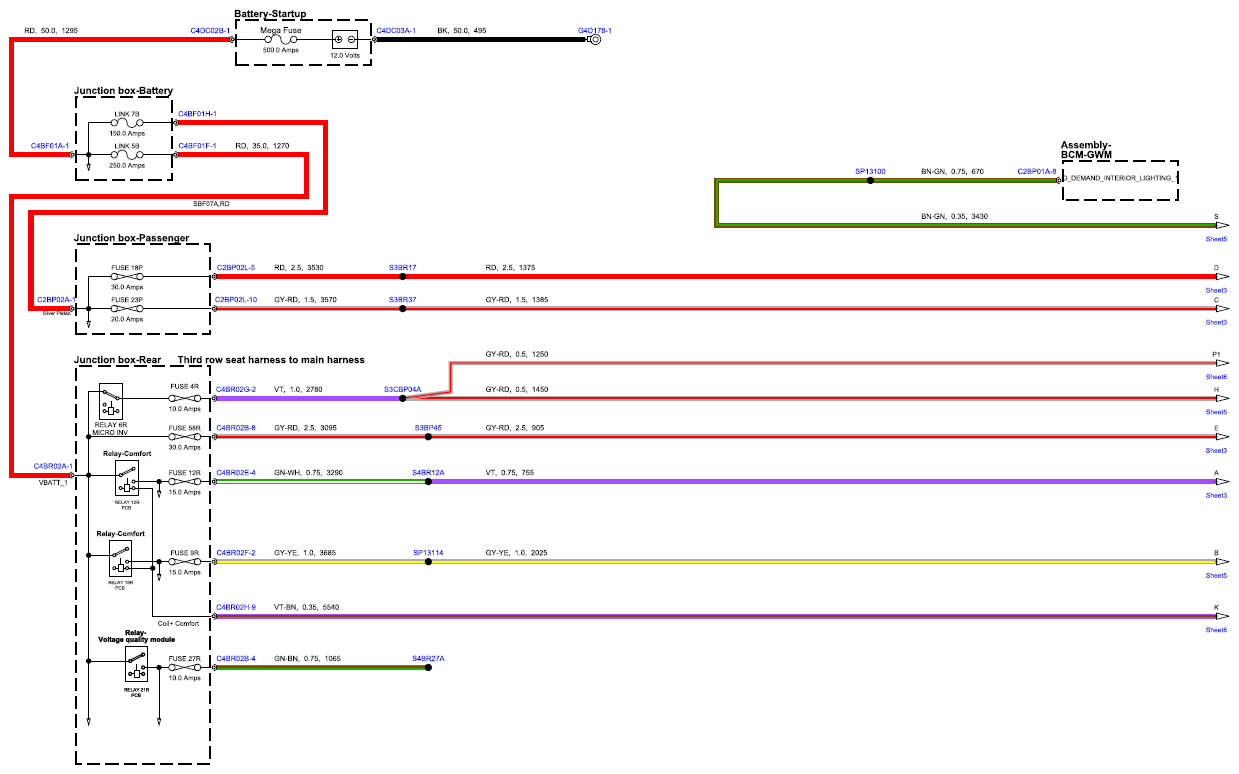

Fig 1: Second Row Executive Seat Circuit Diagram - Left (Sheet 1)
G15556780
Fig 2: Second Row Executive Seat Circuit Diagram - Left (Sheet 2)
G15556781

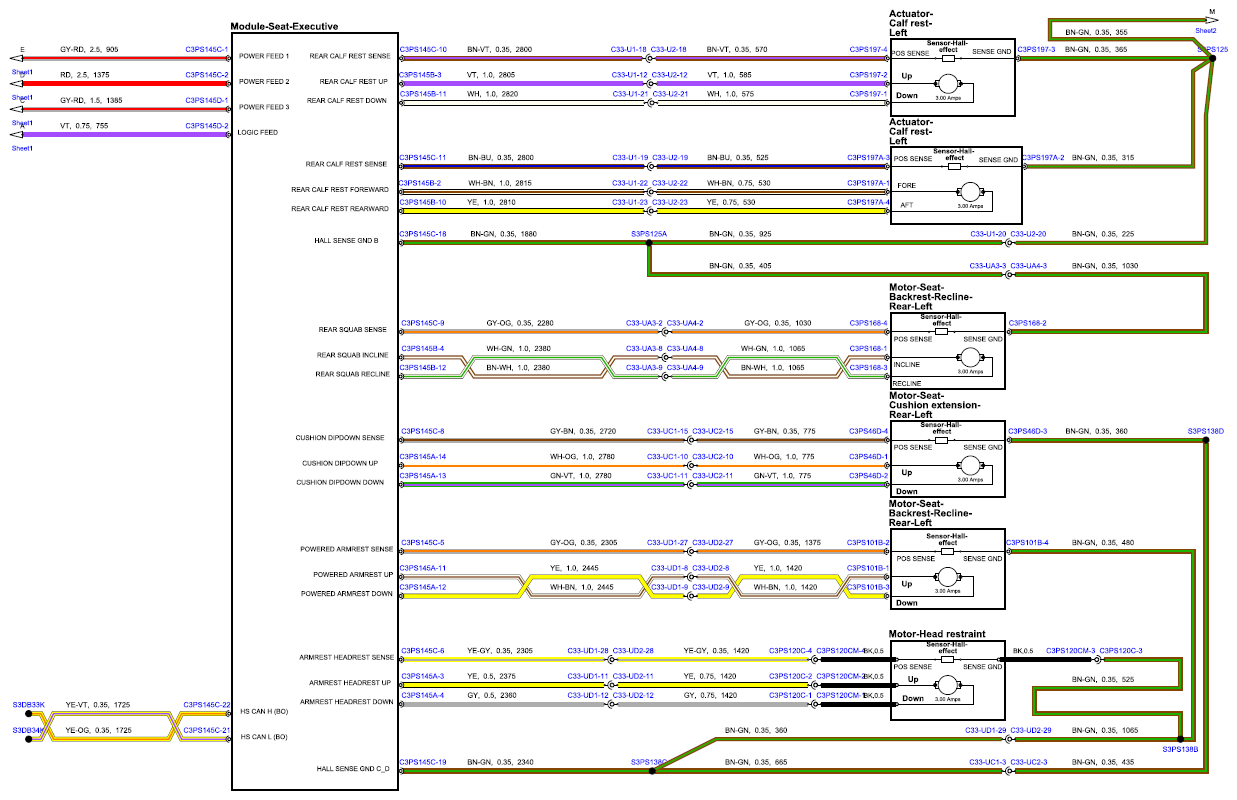

Fig 3: Second Row Executive Seat Circuit Diagram - Left (Sheet 3)
G15556782

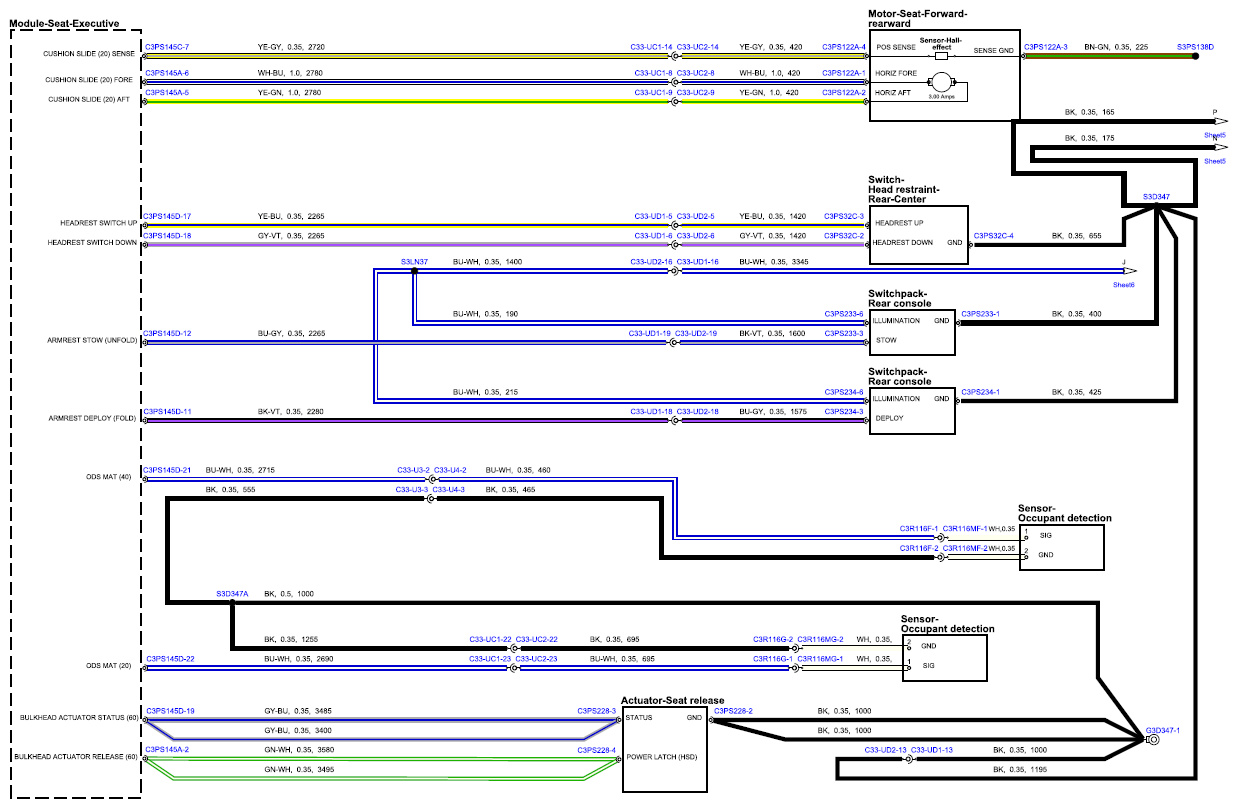

Fig 4: Second Row Executive Seat Circuit Diagram - Left (Sheet 4)
G15556783

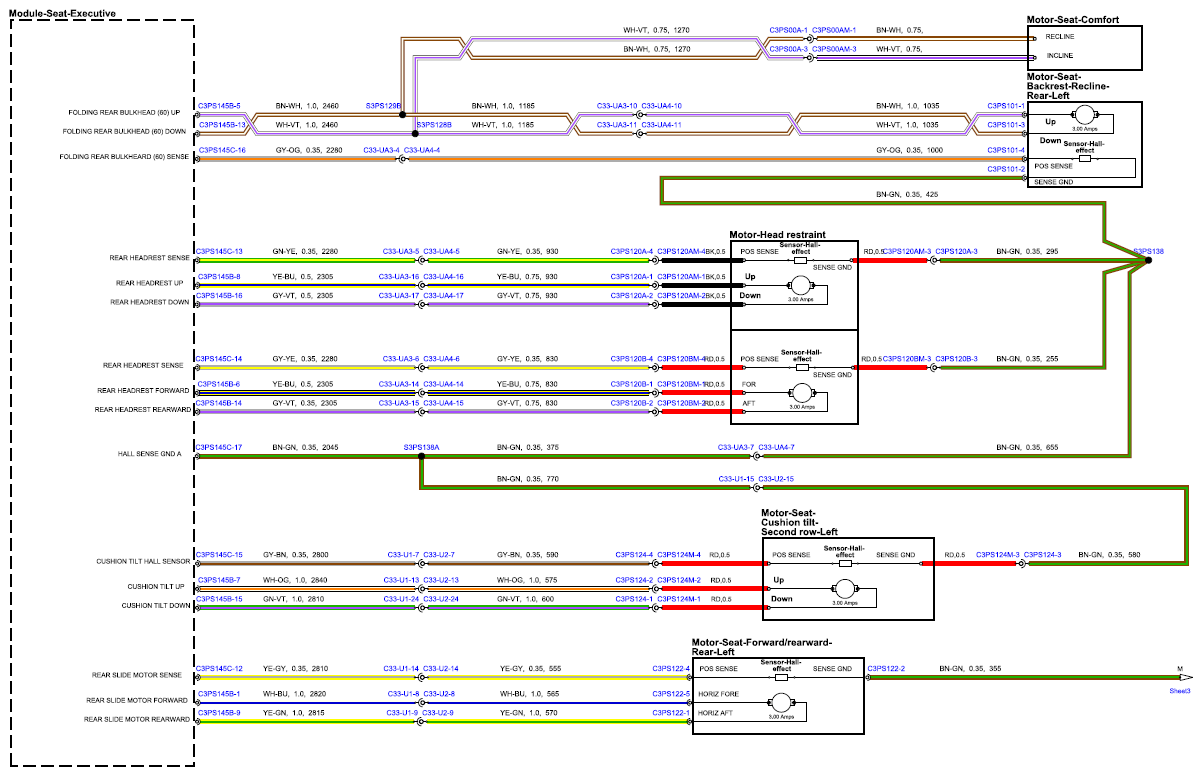

Fig 5: Second Row Executive Seat Circuit Diagram - Left (Sheet 5)
G15556784

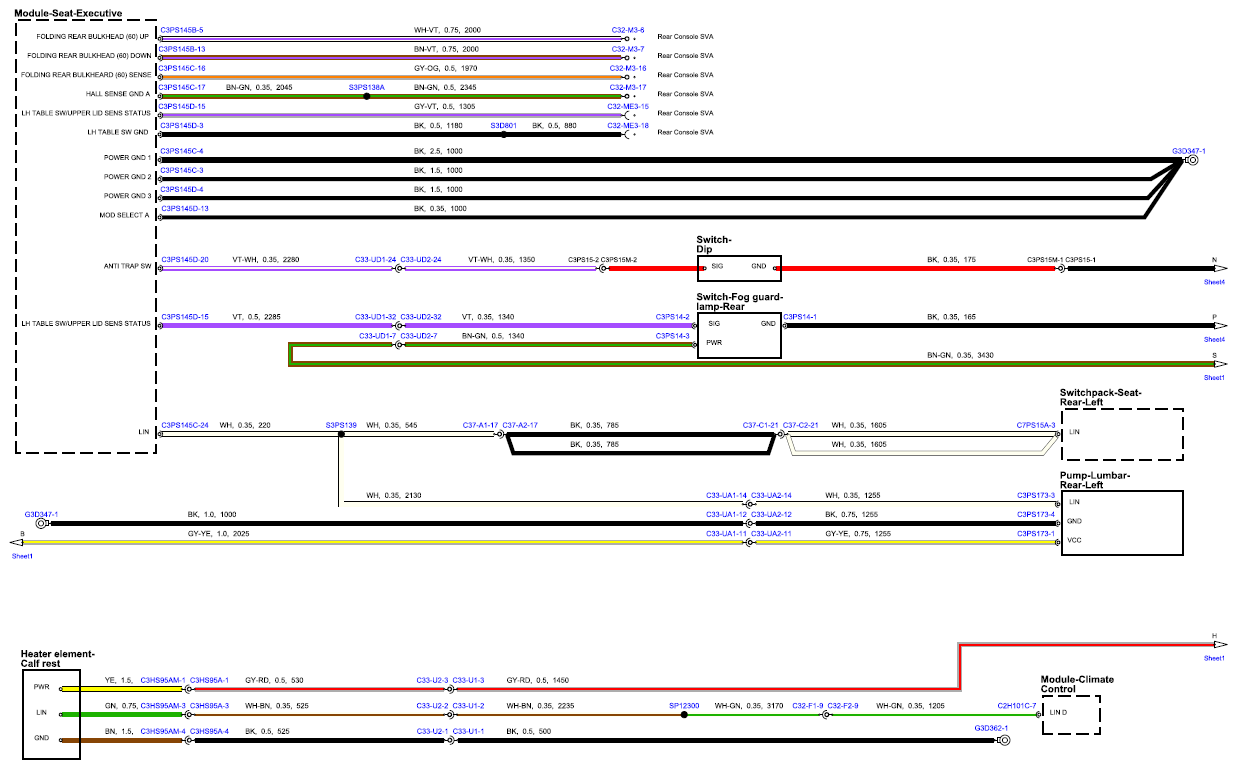

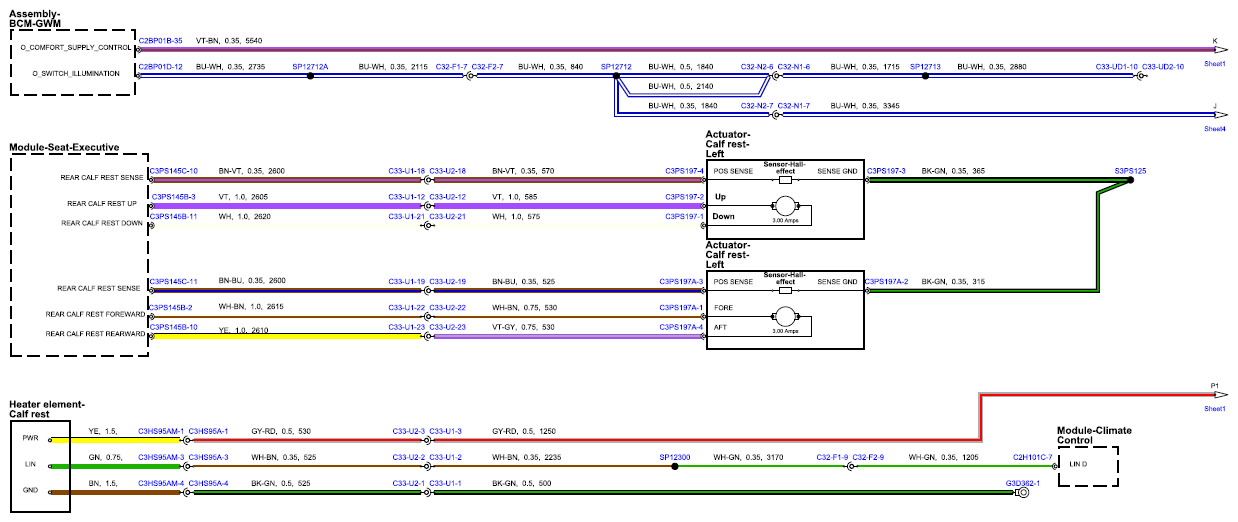

Fig 6: Second Row Executive Seat Circuit Diagram - Left (Sheet 6)
G15556785
