Second Row Executive Seat - Climate controlled

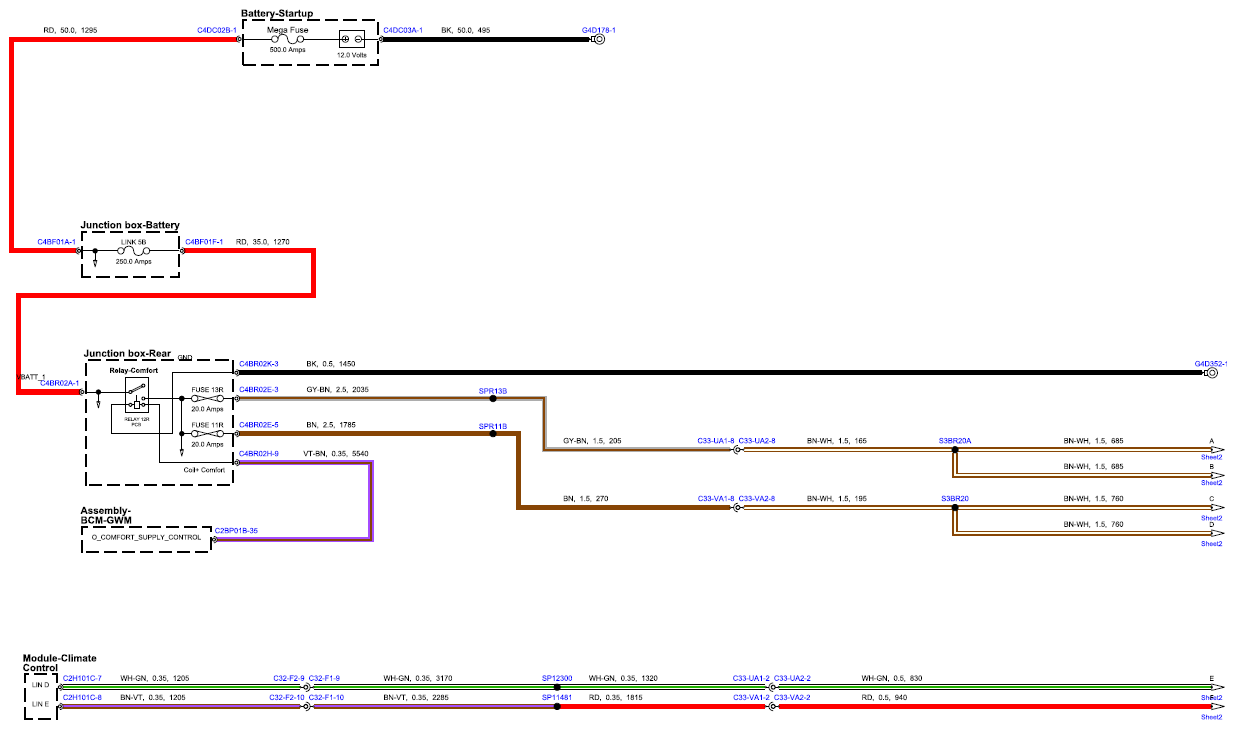

Fig 1: Second Row Executive Seat - Climate Controlled Circuit Diagram (Sheet 1)
G15556792

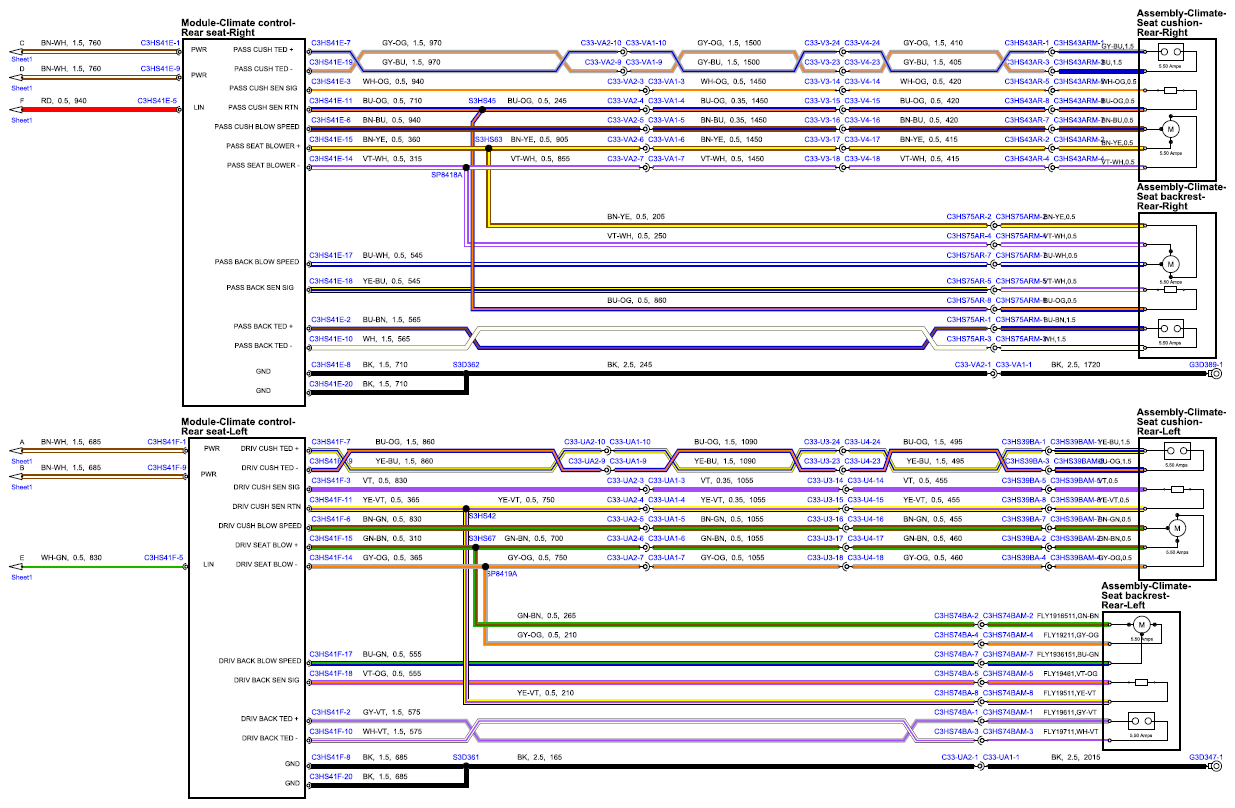

Fig 2: Second Row Executive Seat - Climate Controlled Circuit Diagram (Sheet 2)
G15556793
