Rear - Climate controlled (Range Rover Sport)

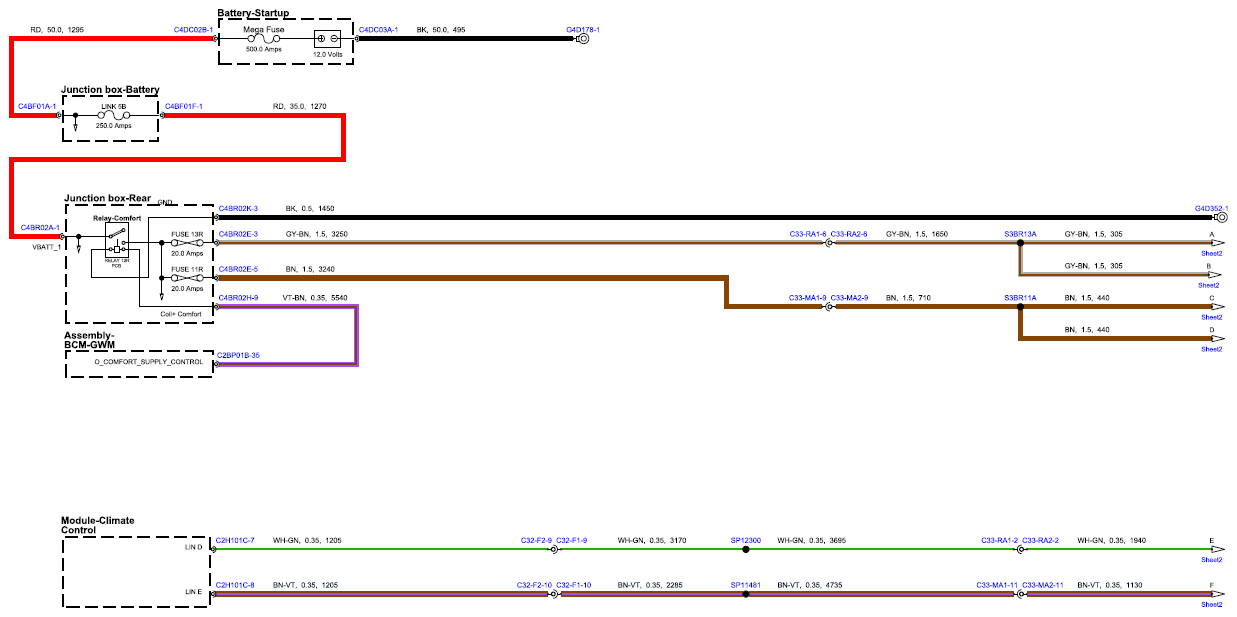

Fig 1: Rear - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 1)
G15556770

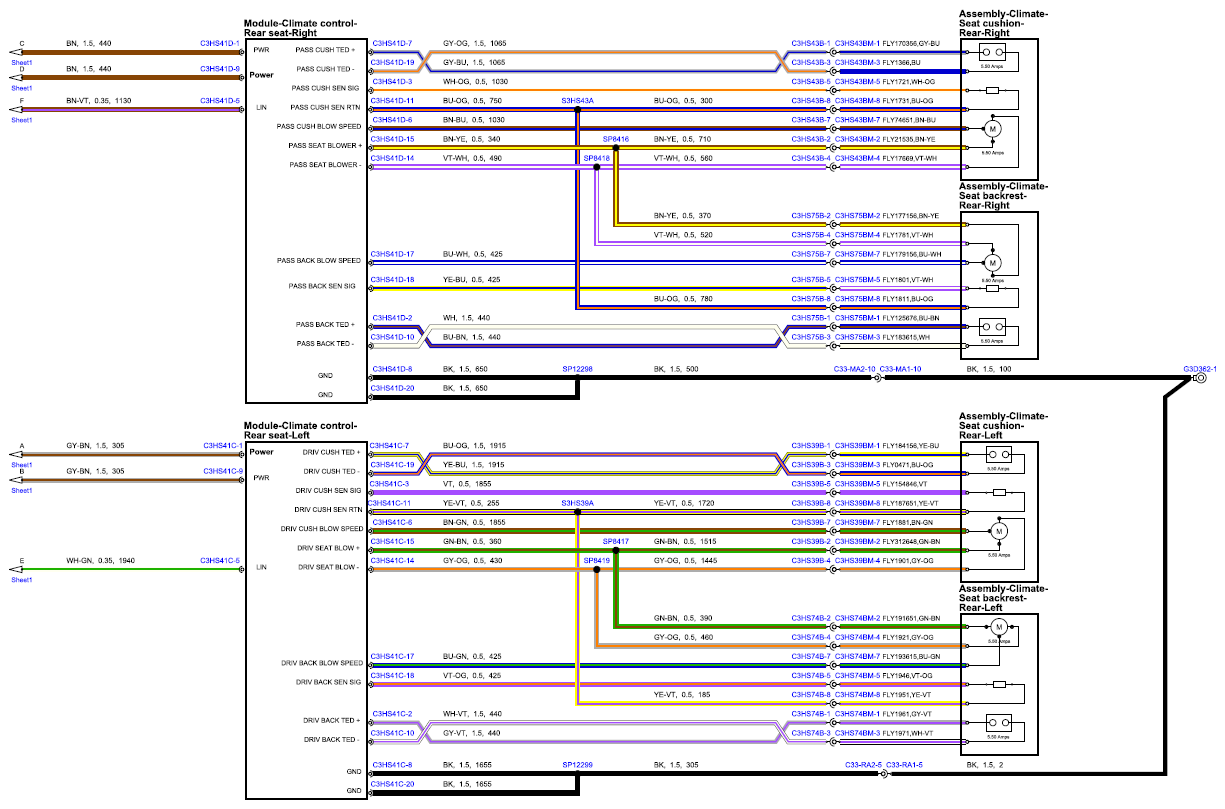

Fig 2: Rear - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 2)
G15556771
