Passenger - Memory - All adjustments (Range Rover Sport)

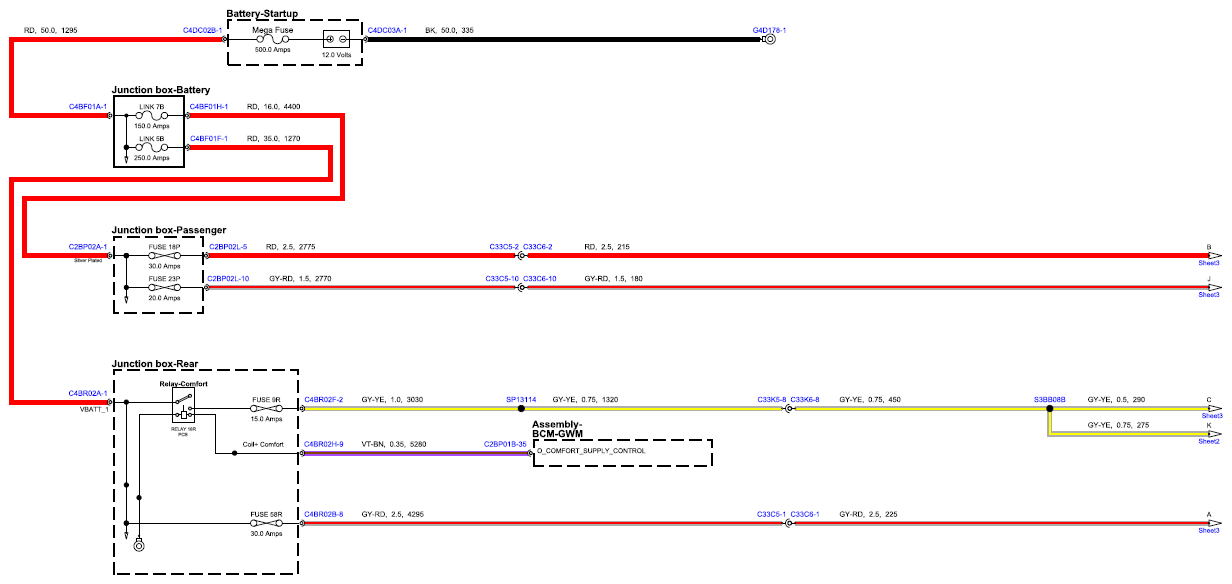

Fig 1: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 1)
G15556757

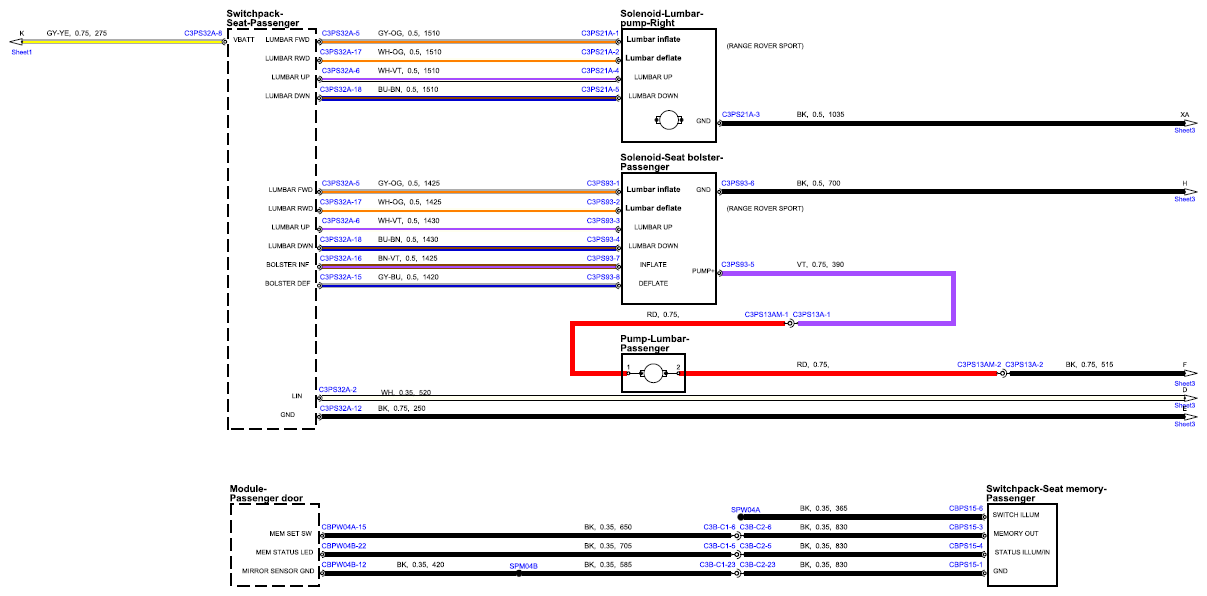

Fig 2: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 2)
G15556758

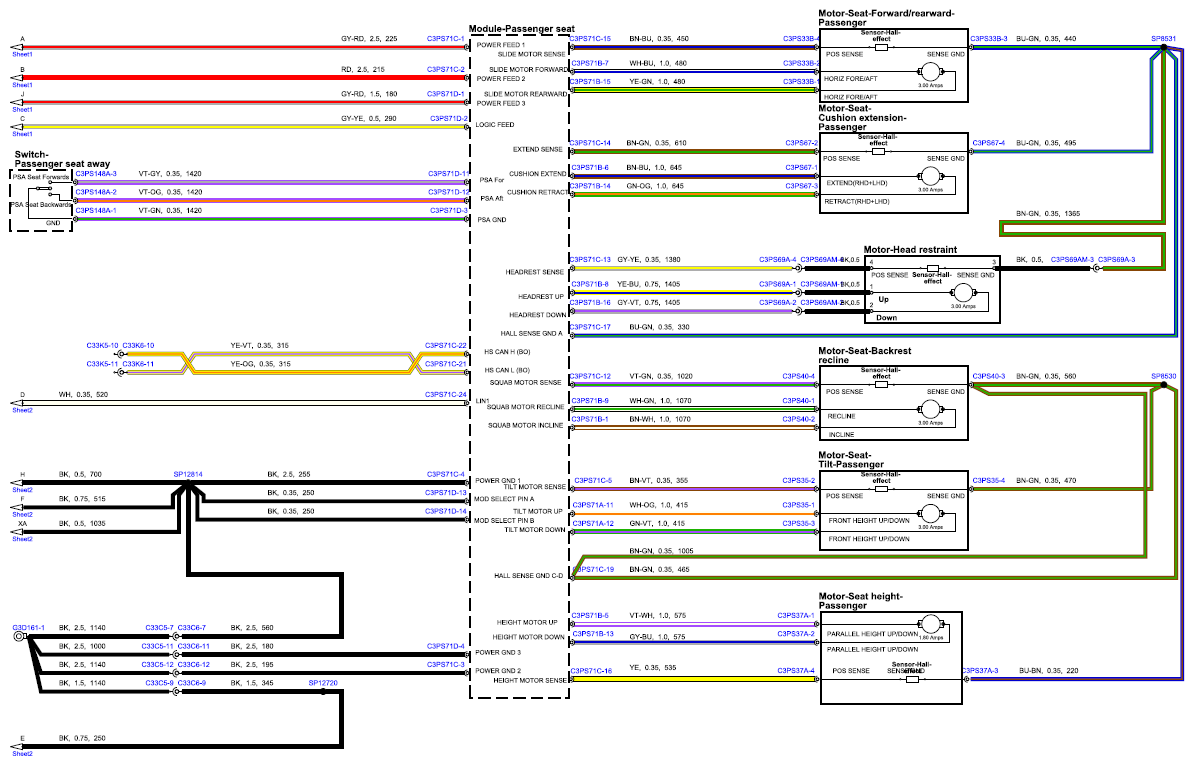

Fig 3: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 3)
G15556759

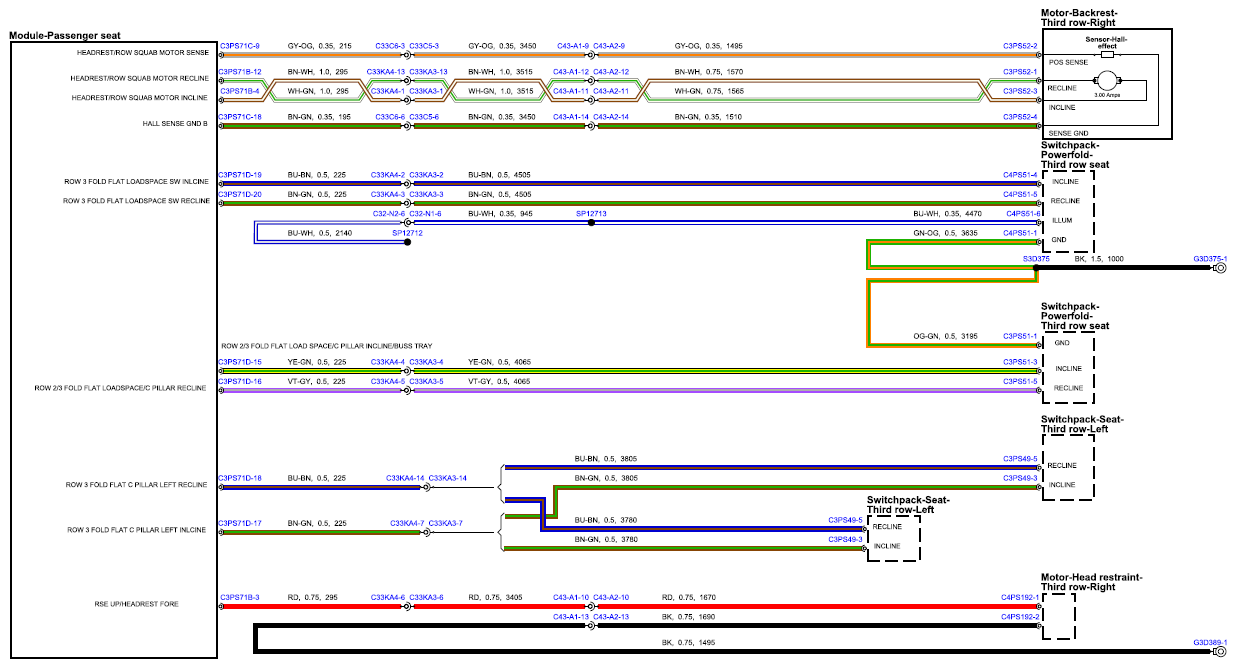

Fig 4: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 4)
G15556760
