Passenger - Memory - 12 to 18 way adjustment

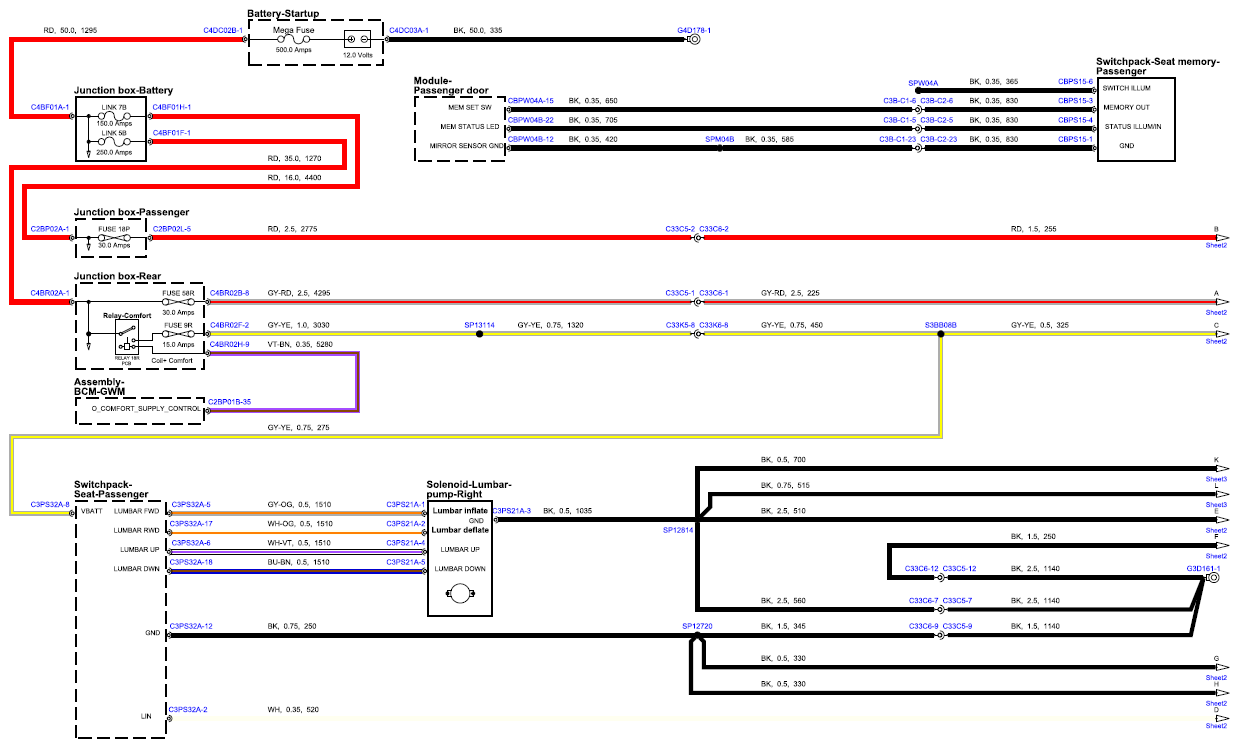

Fig 1: Passenger - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 1)

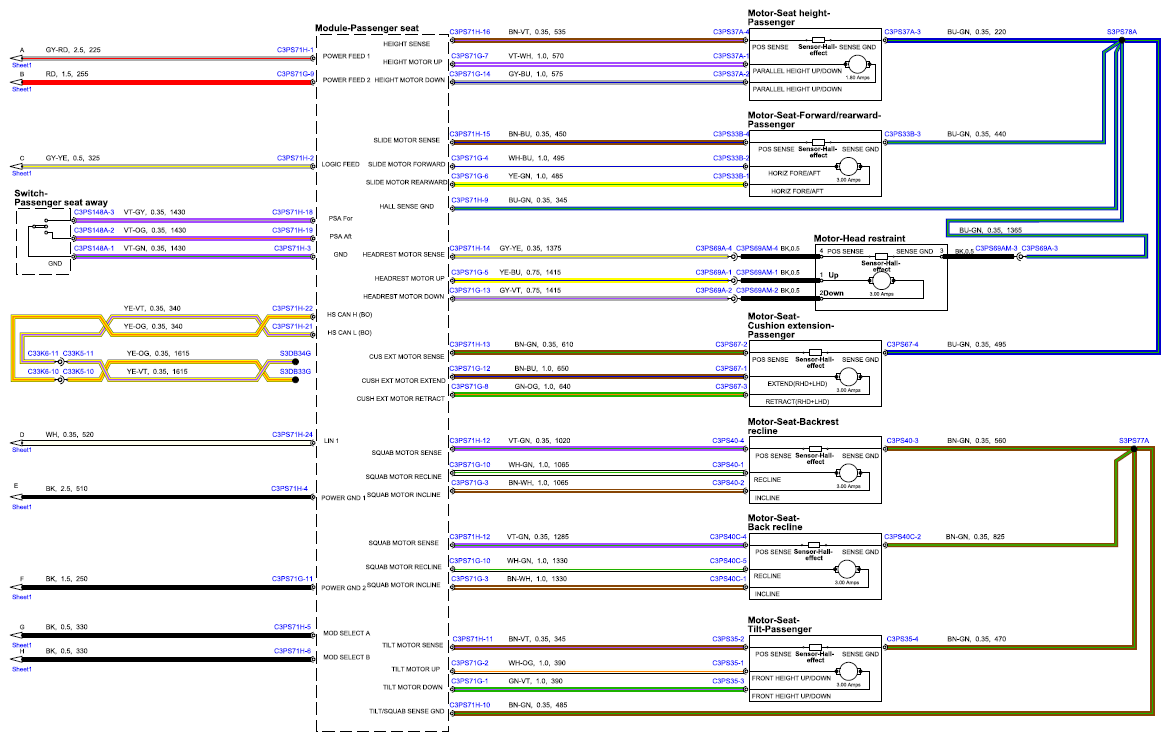

Fig 2: Passenger - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 2)

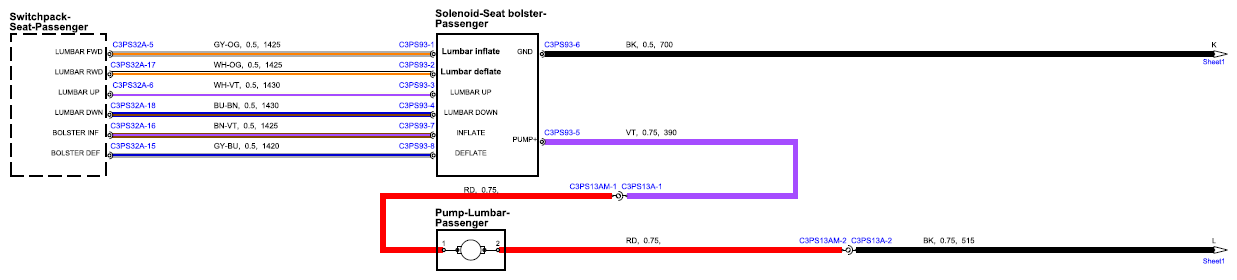

Fig 3: Passenger - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 3)
