Front - Climate controlled (Range Rover Sport)

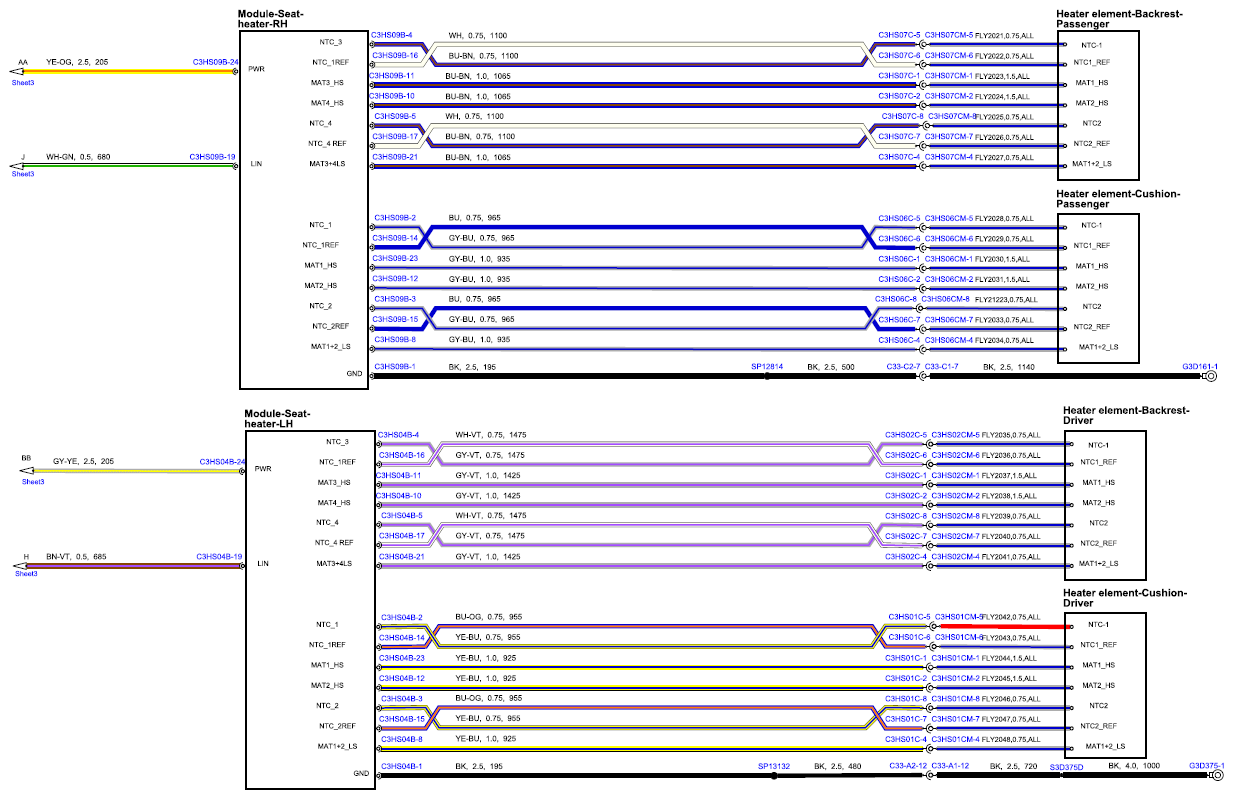

Fig 1: Front - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 1)
G15556740

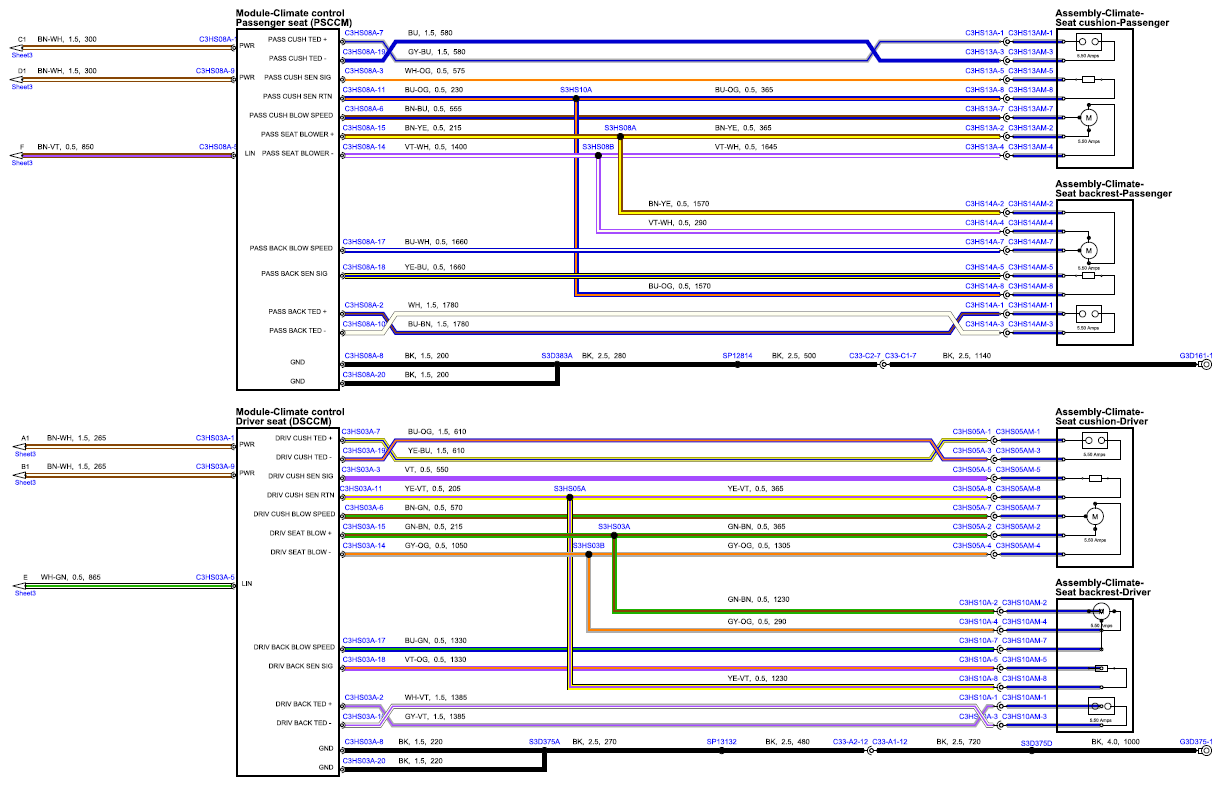

Fig 2: Front - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 2)
G15556741

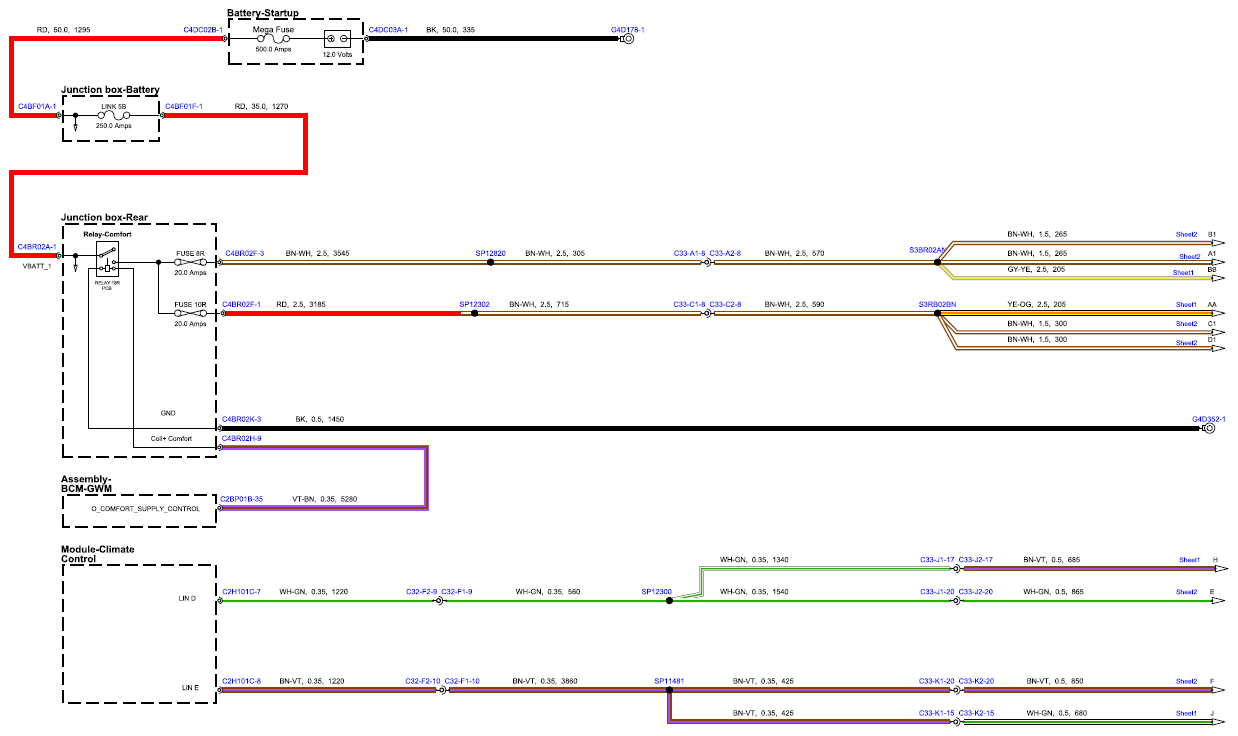

Fig 3: Front - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 3)
G15556742
