Driver - Memory - All adjustments (Range Rover Sport)

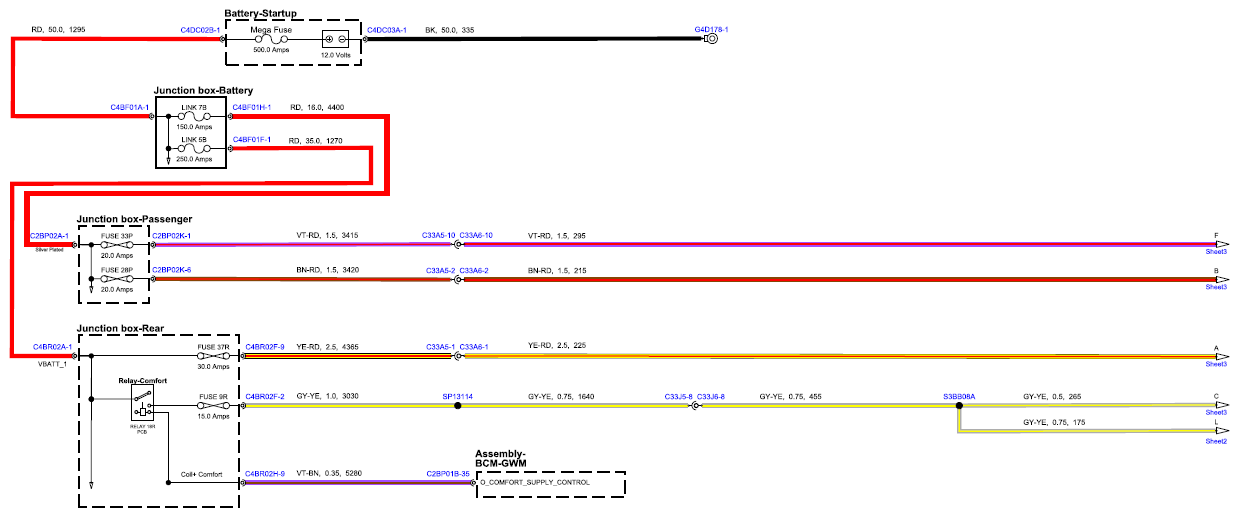

Fig 1: Driver - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 1)
G15556732

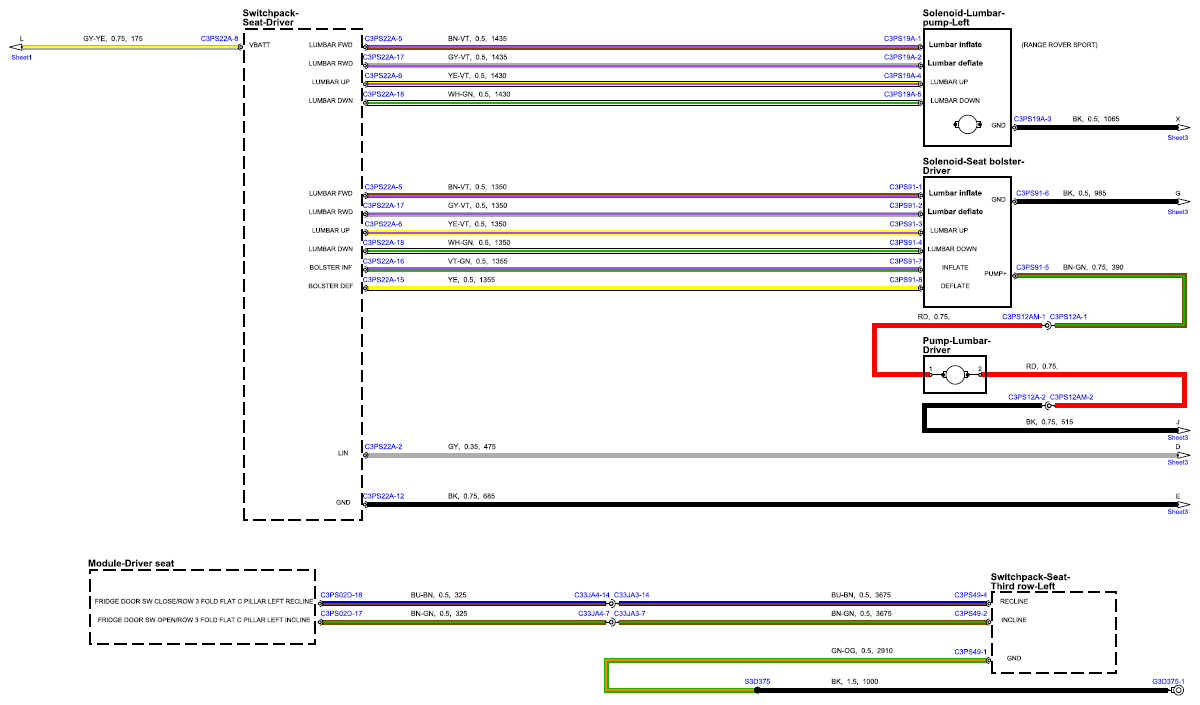

Fig 2: Driver - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 2)
G15556733

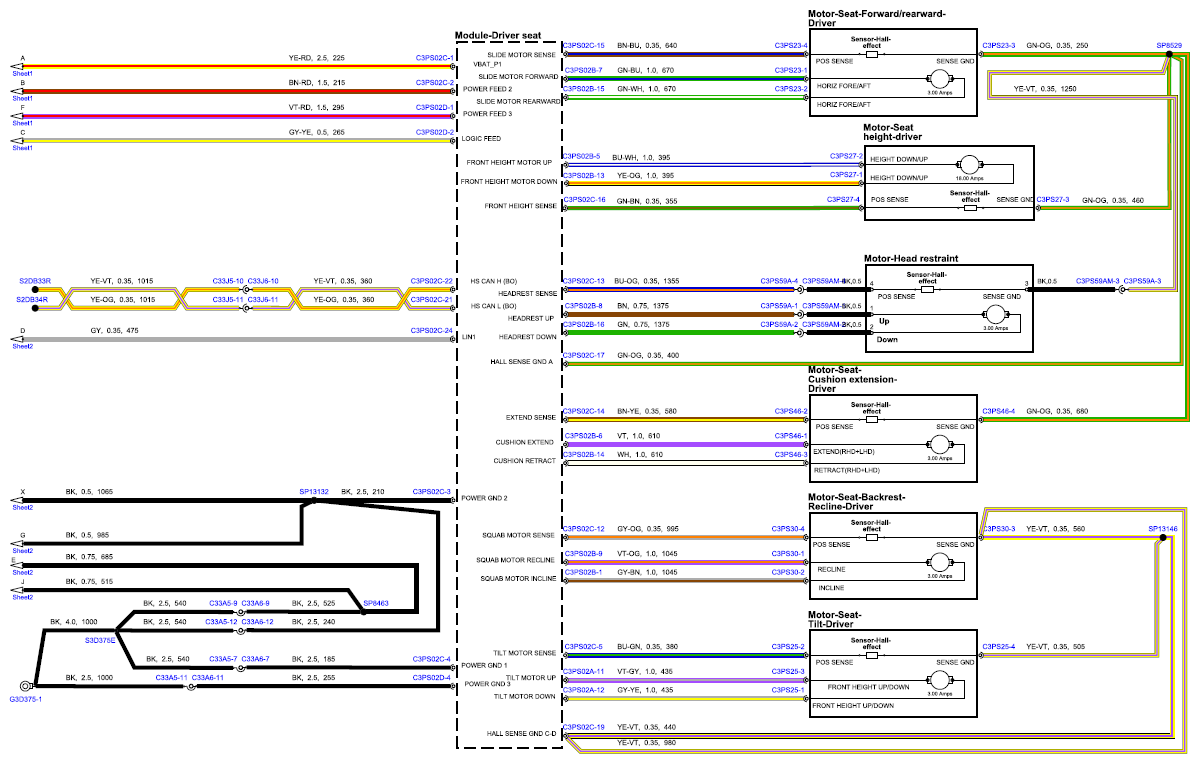

Fig 3: Driver - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 3)
G15556734

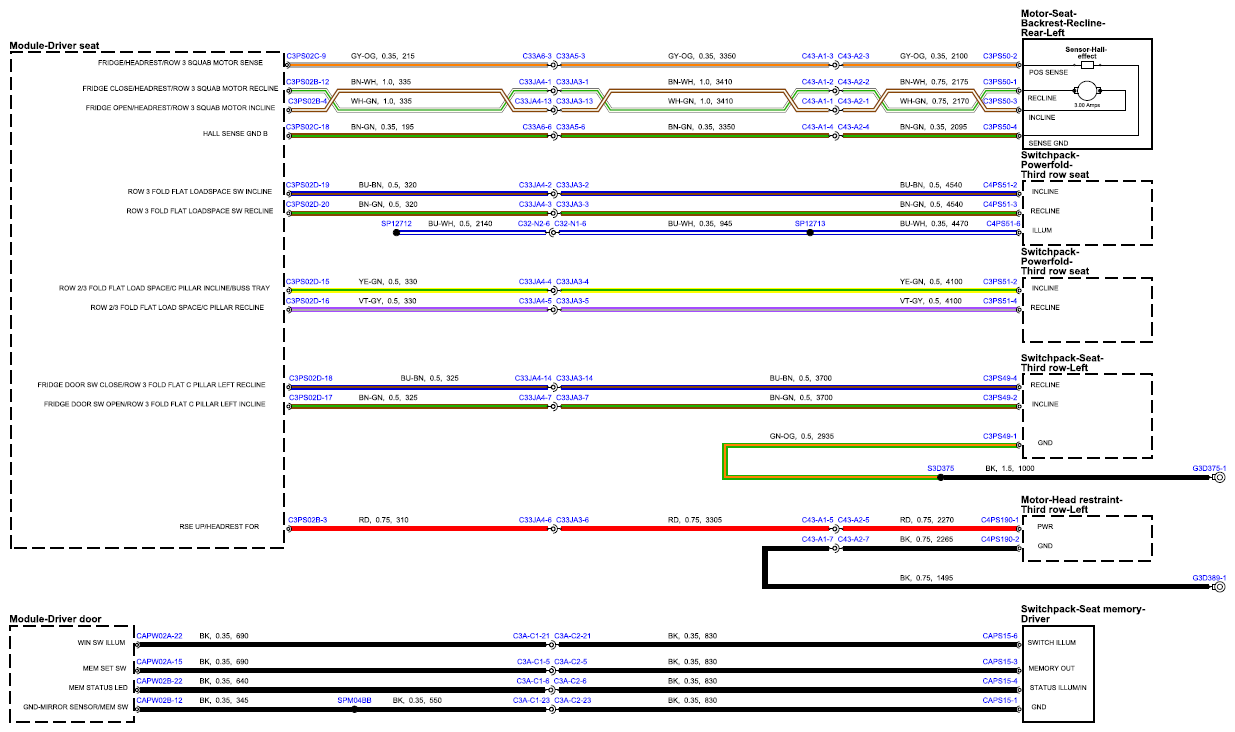

Fig 4: Driver - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 4)
G15556735
