Driver - Memory - 12 to 18 way adjustment

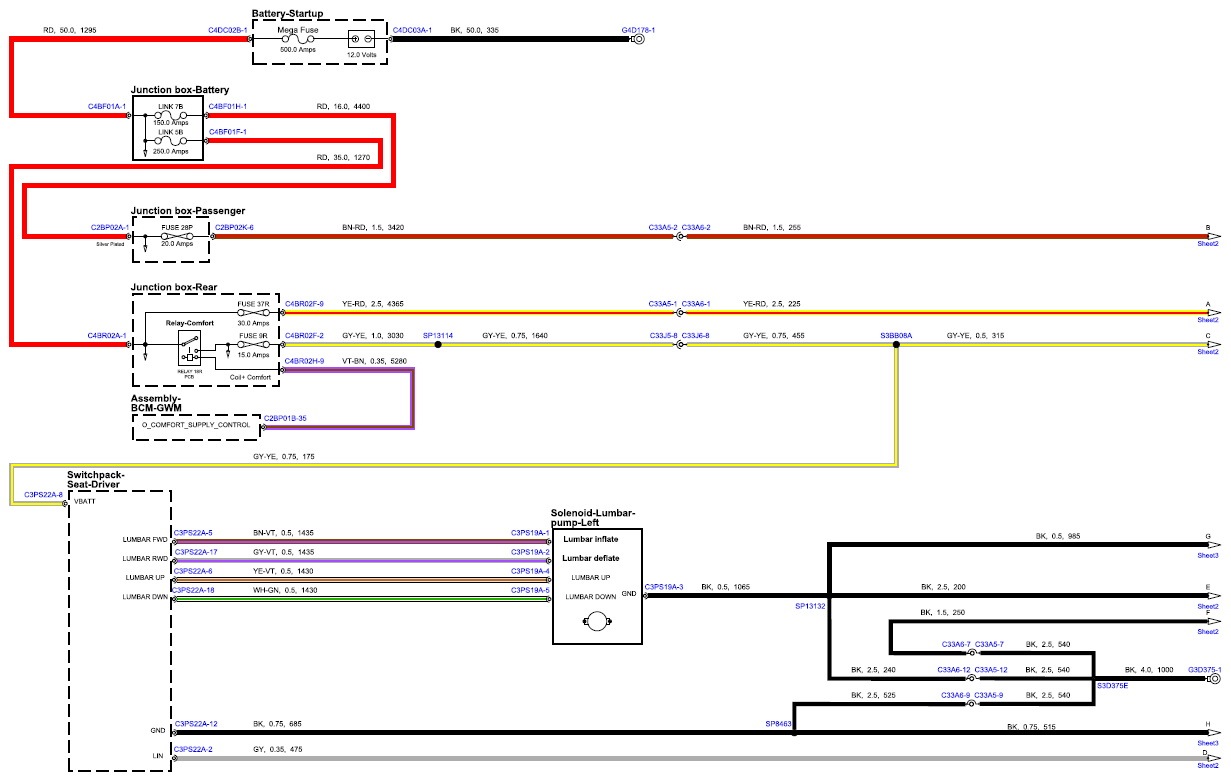

Fig 1: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 1)
G15556747

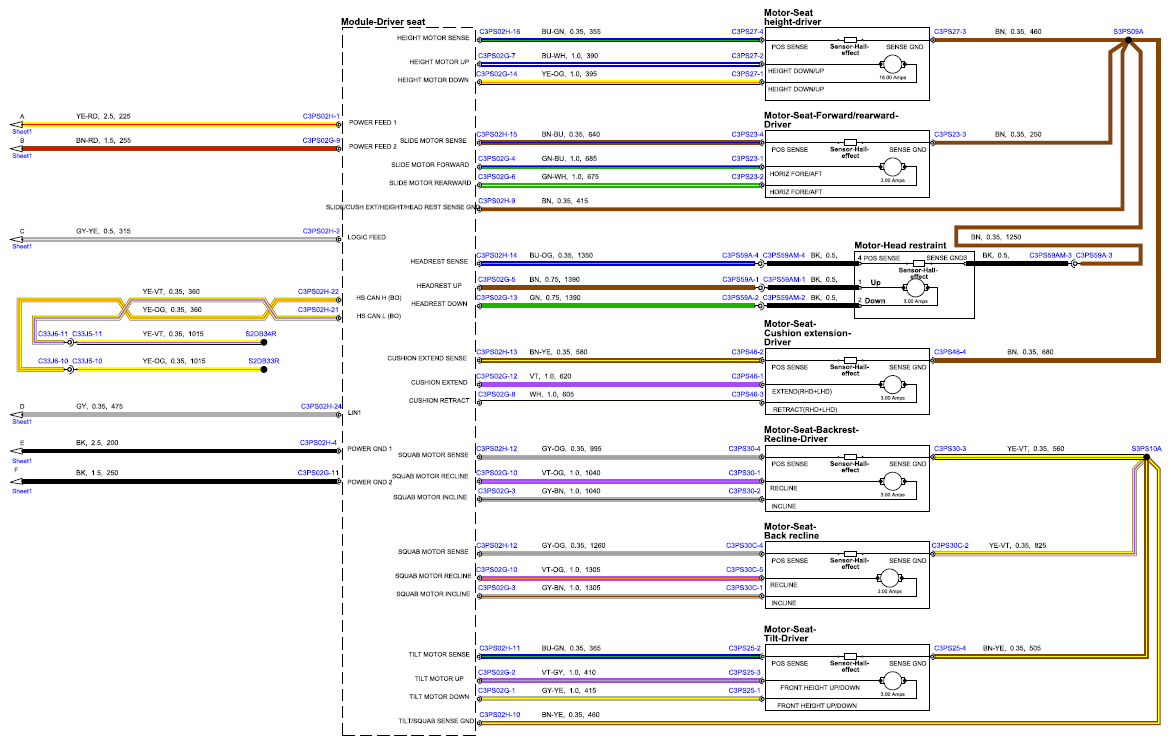

Fig 2: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 2)
G15556748

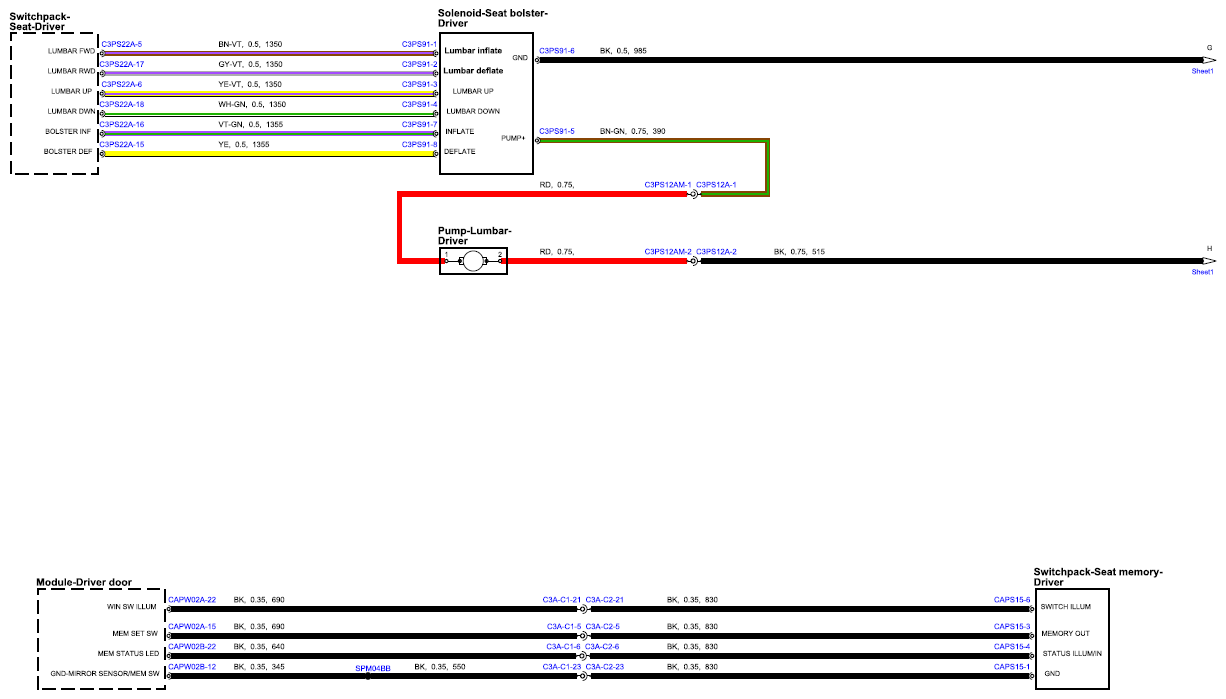

Fig 3: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 3)
G15556749
