501-09 Rear View Mirrors Wiring Diagrams: Electrochromic

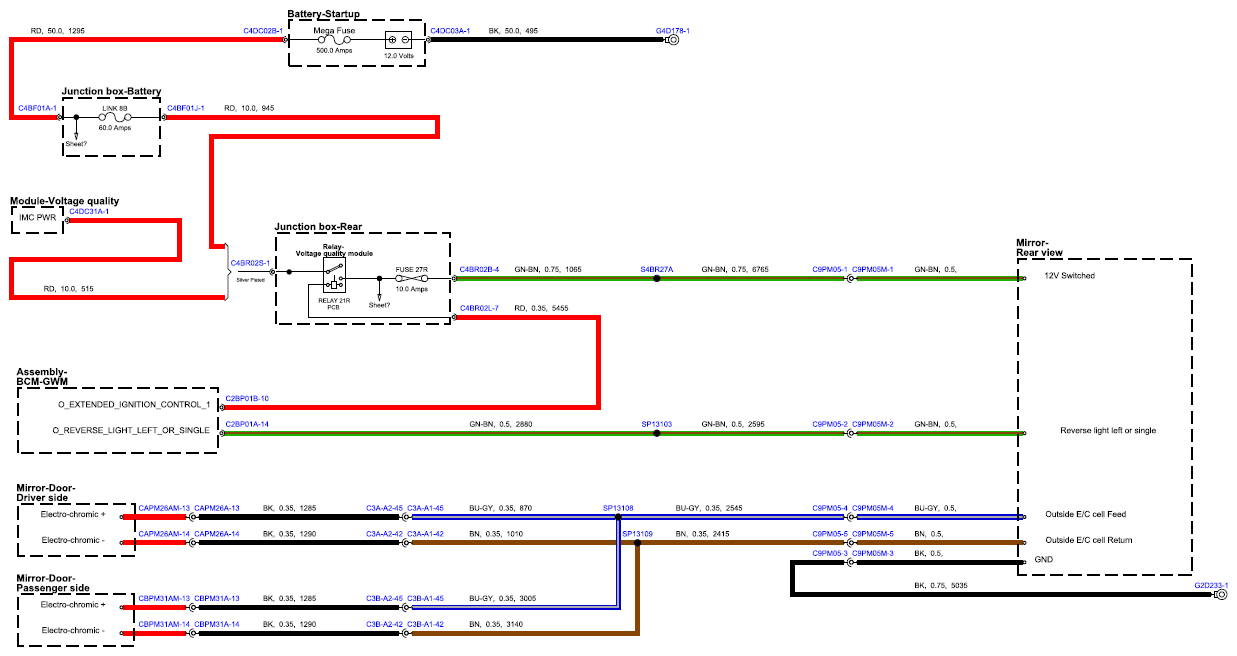

Fig 1: Electrochromic Circuit Diagram

G15556722
