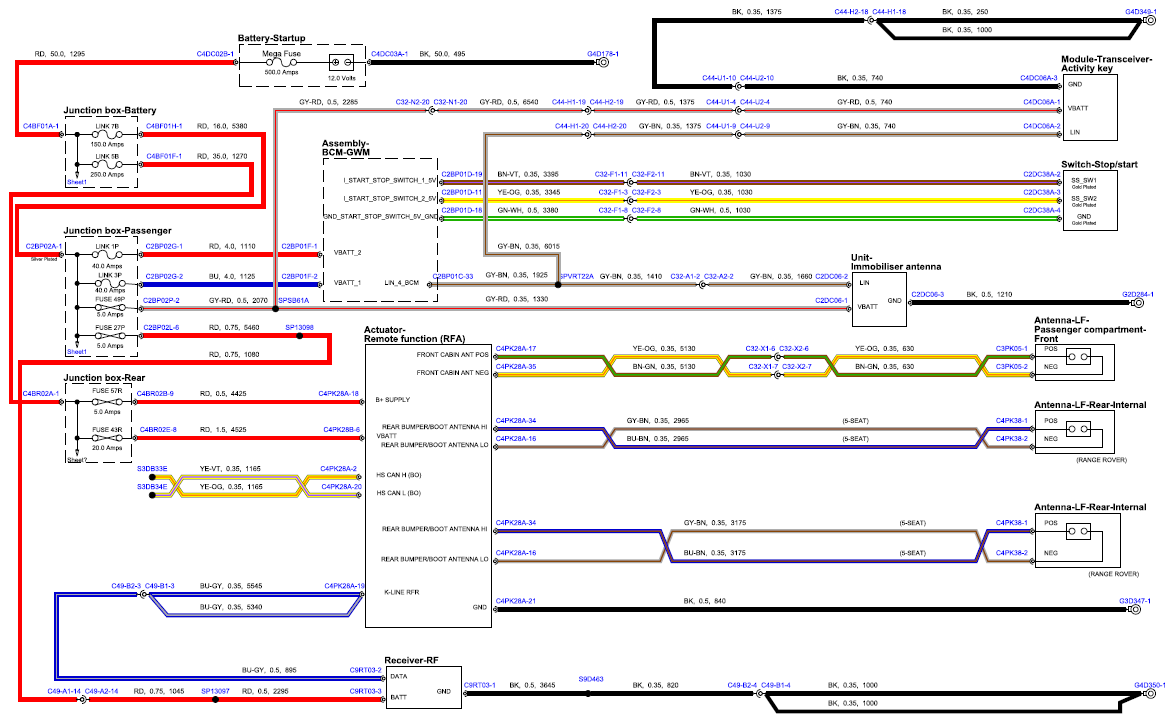

Home >> Land Rover >> 2022 >> Range Rover Sport HST >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover Sport L494 >> 419-01 Anti-Theft System Wiring Diagrams >> Passive start (7-seat vehicles)
