419-01 Anti-Theft System Wiring Diagrams: Notes

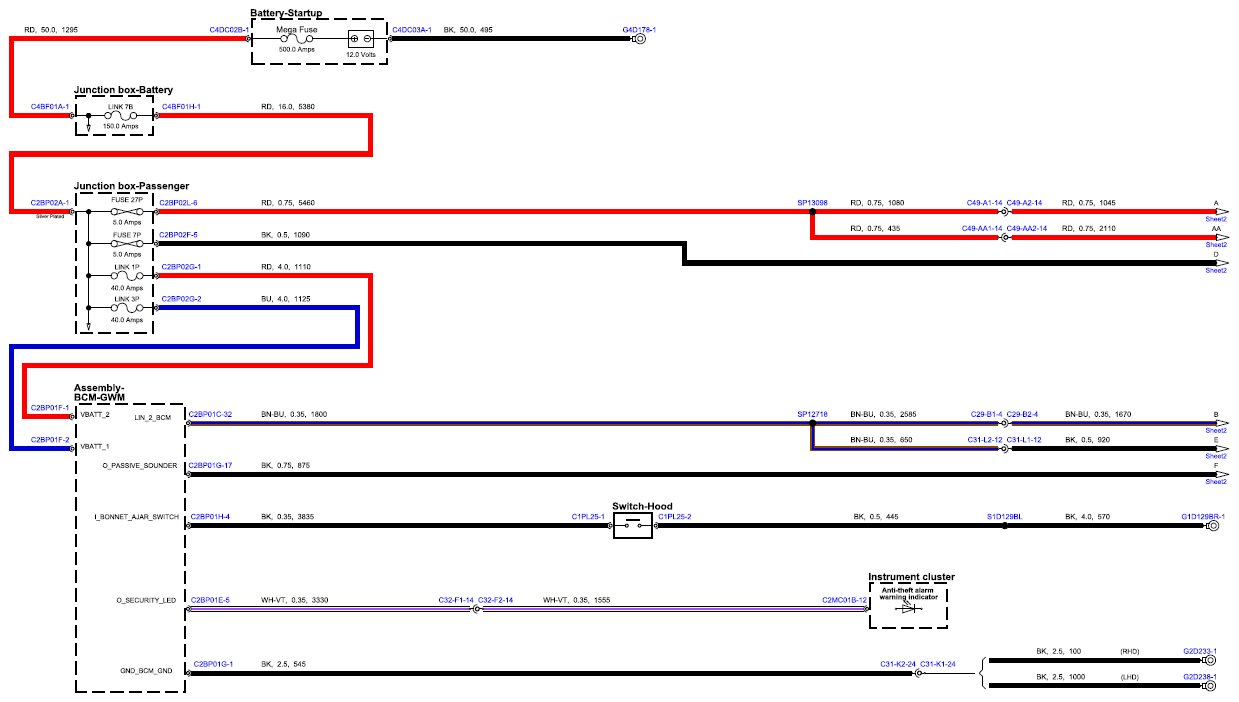

Fig 1: Anti-Theft System Circuit Diagram (Sheet 1)

G15556715

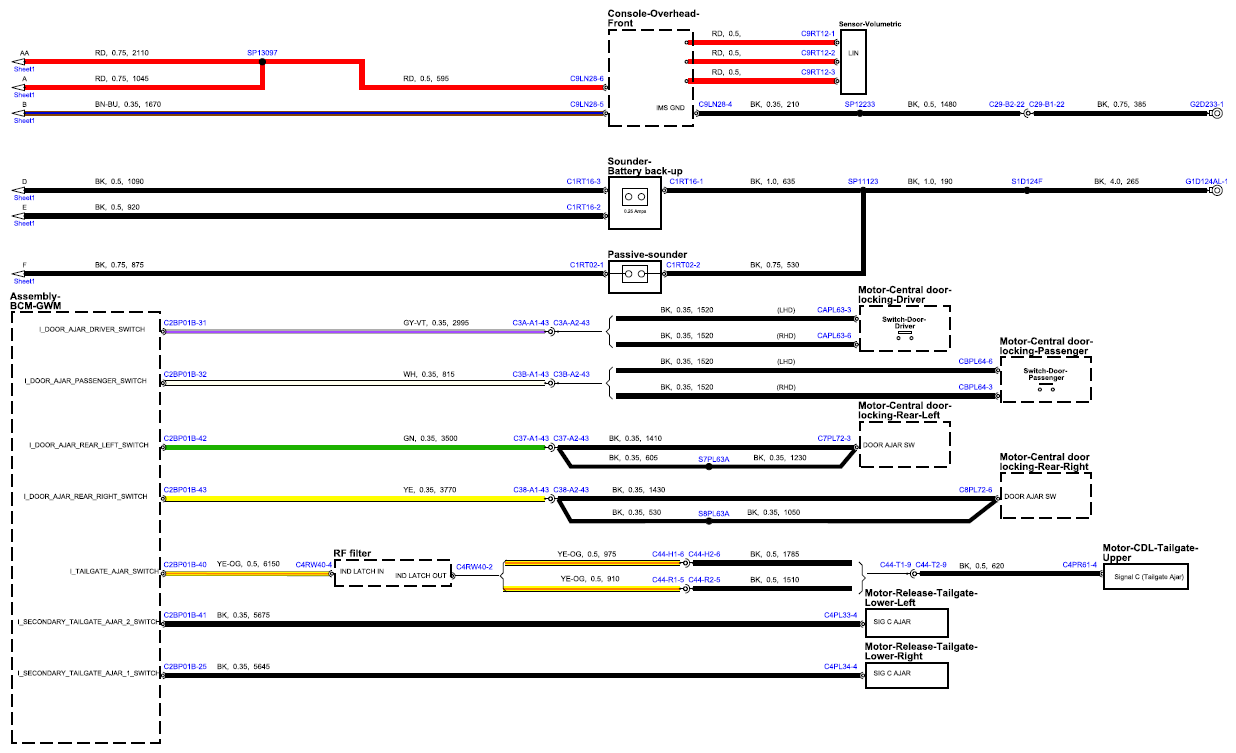

Fig 2: Anti-Theft System Circuit Diagram (Sheet 2)

G15556716
