LIN bus

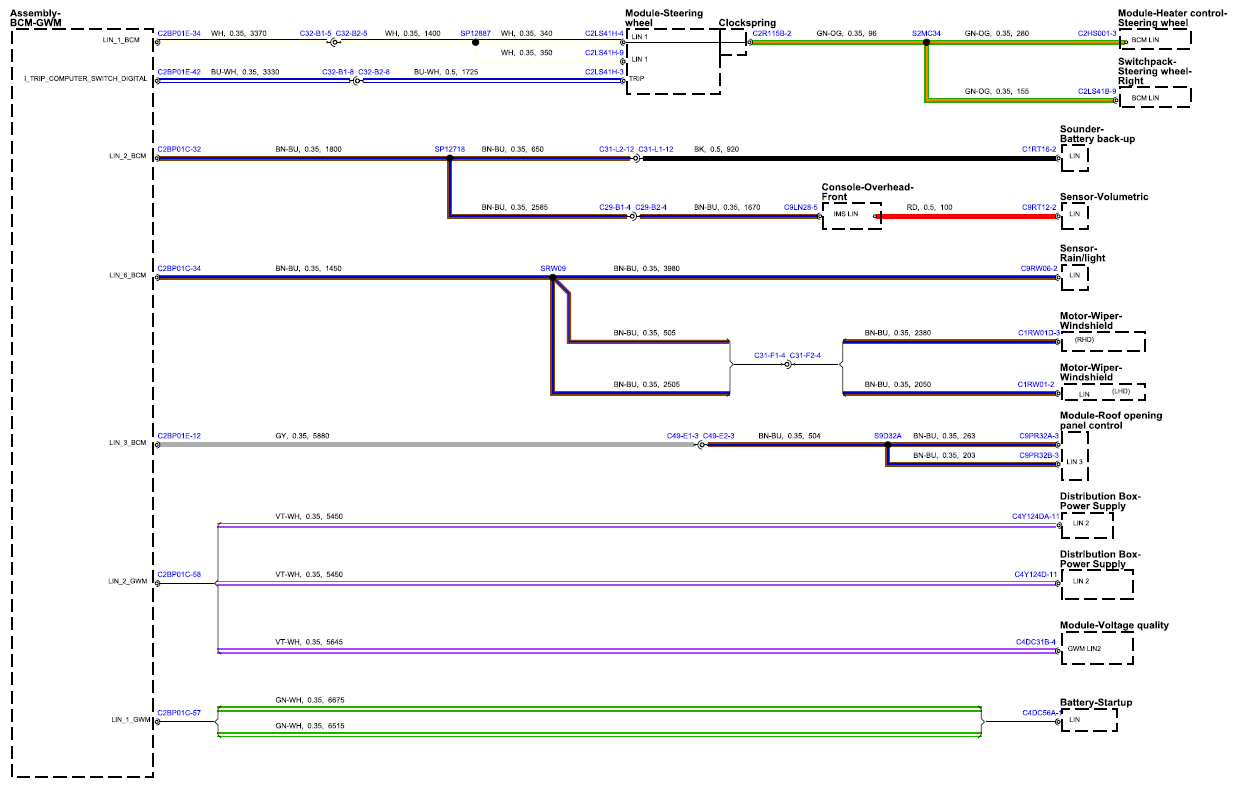

Fig 1: LIN Bus Circuit Diagram (Sheet 1)

G15556711

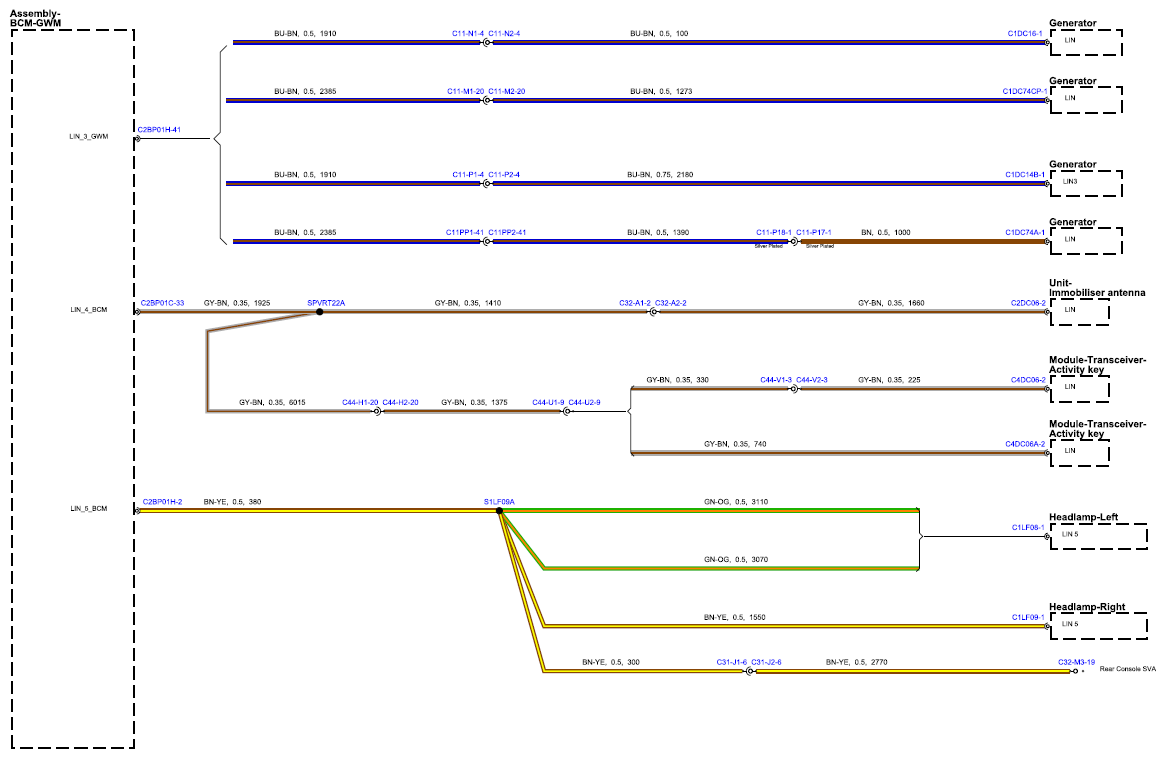

Fig 2: LIN Bus Circuit Diagram (Sheet 2)

G15556712

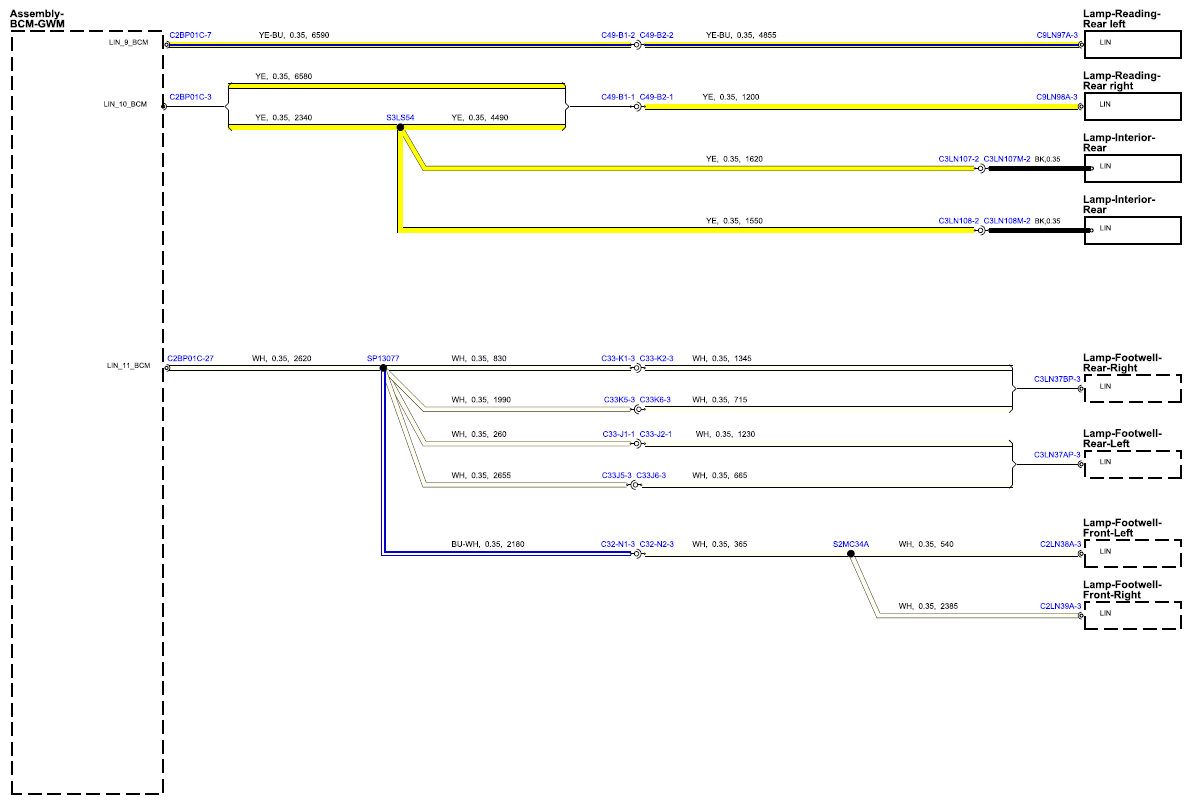

Fig 3: LIN Bus Circuit Diagram (Sheet 3)

G15556713
