418-00 Module Communications Network Wiring Diagrams: FlexRay

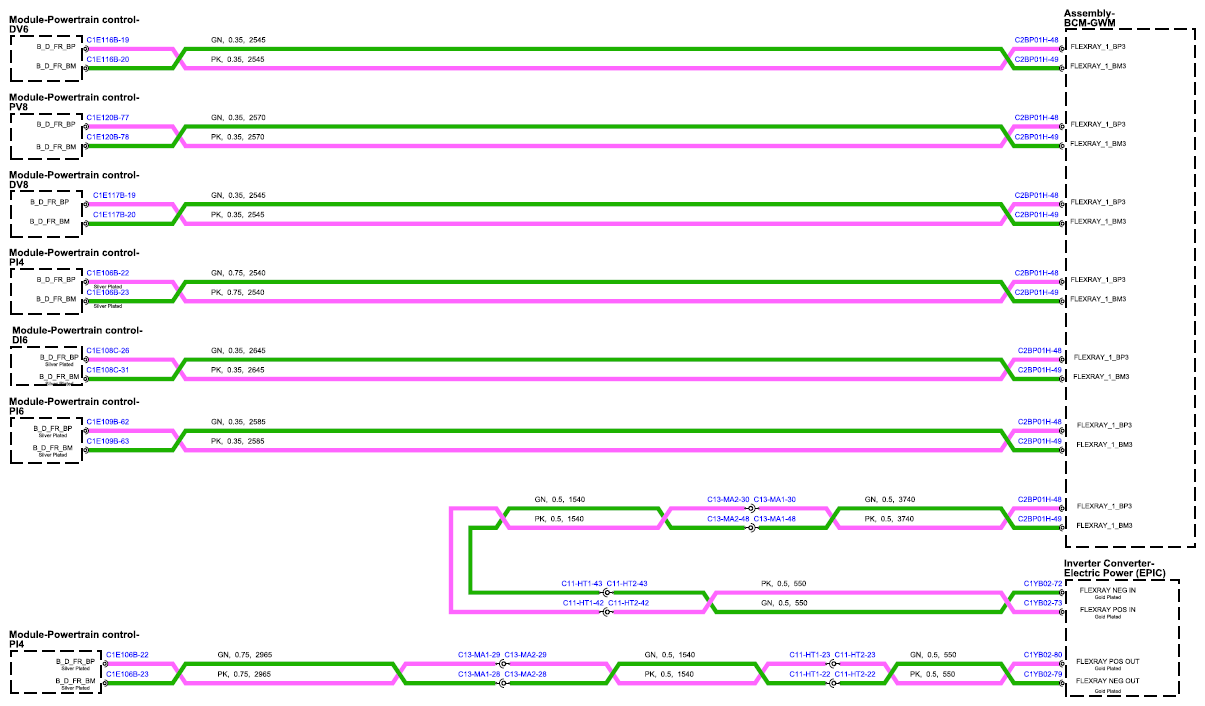

Fig 1: FlexRay Circuit Diagram (Sheet 1)

G15556708

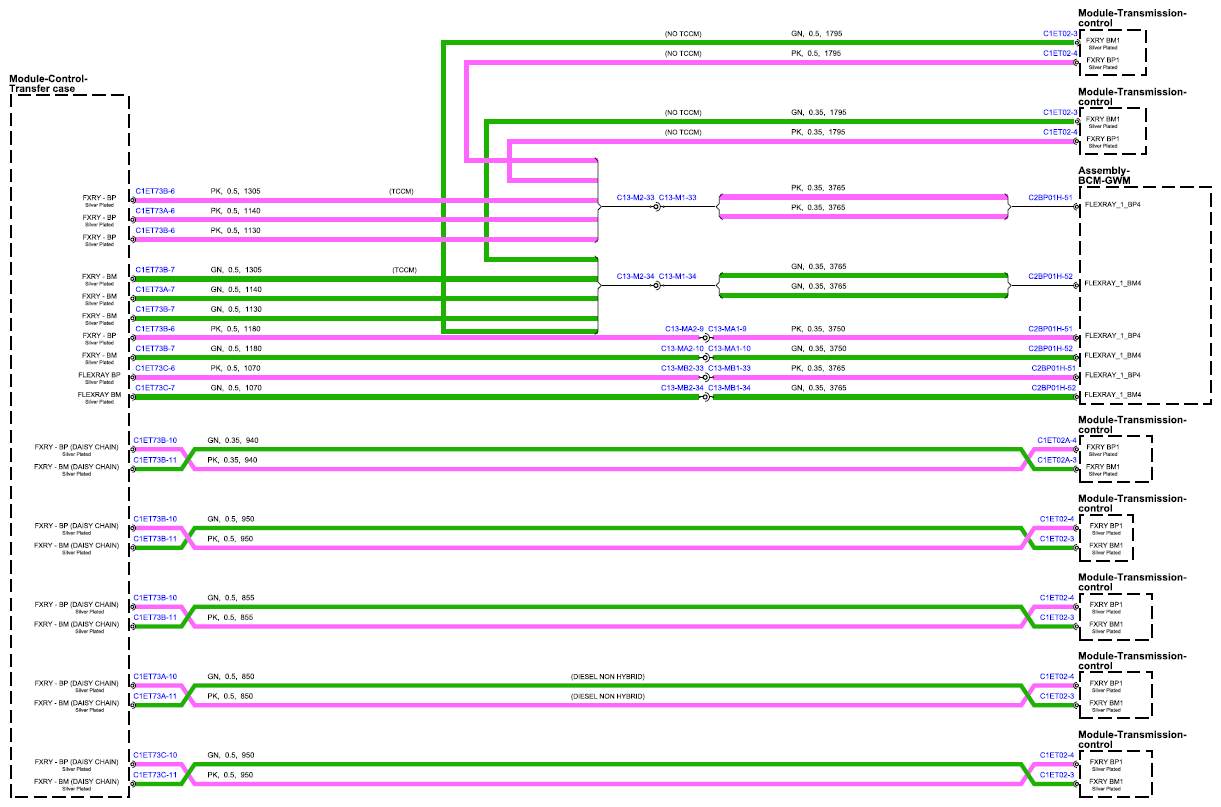

Fig 2: FlexRay Circuit Diagram (Sheet 2)

G15556709

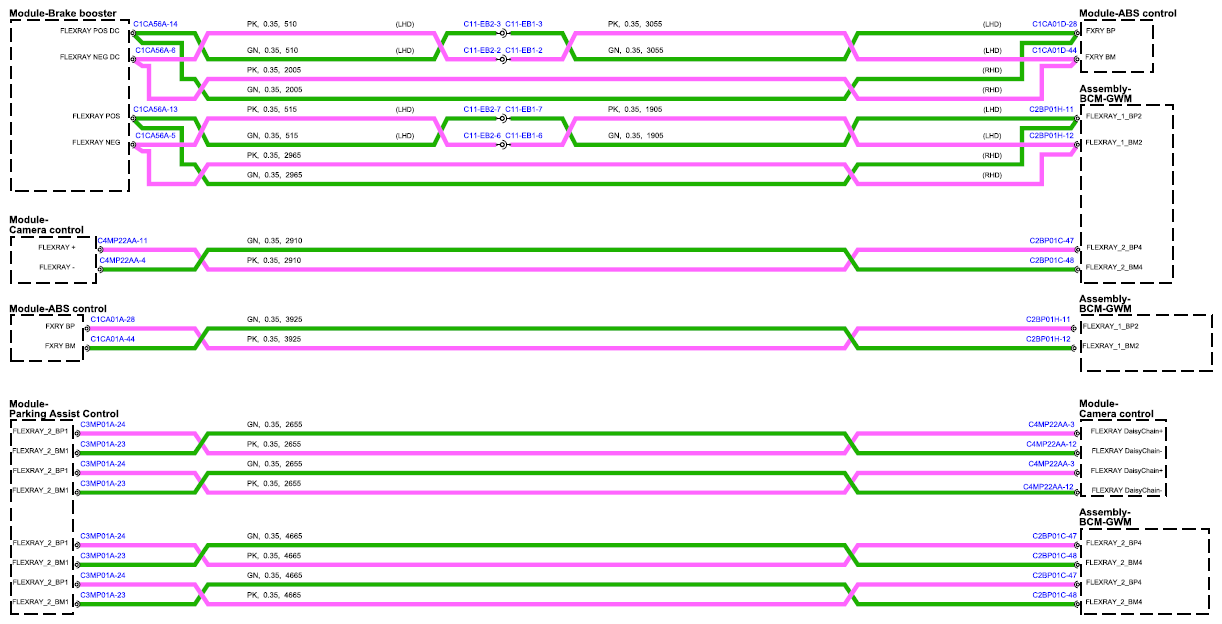

Fig 3: FlexRay Circuit Diagram (Sheet 3)

G15556710
