CAN bus - High speed - Power mode zero systems

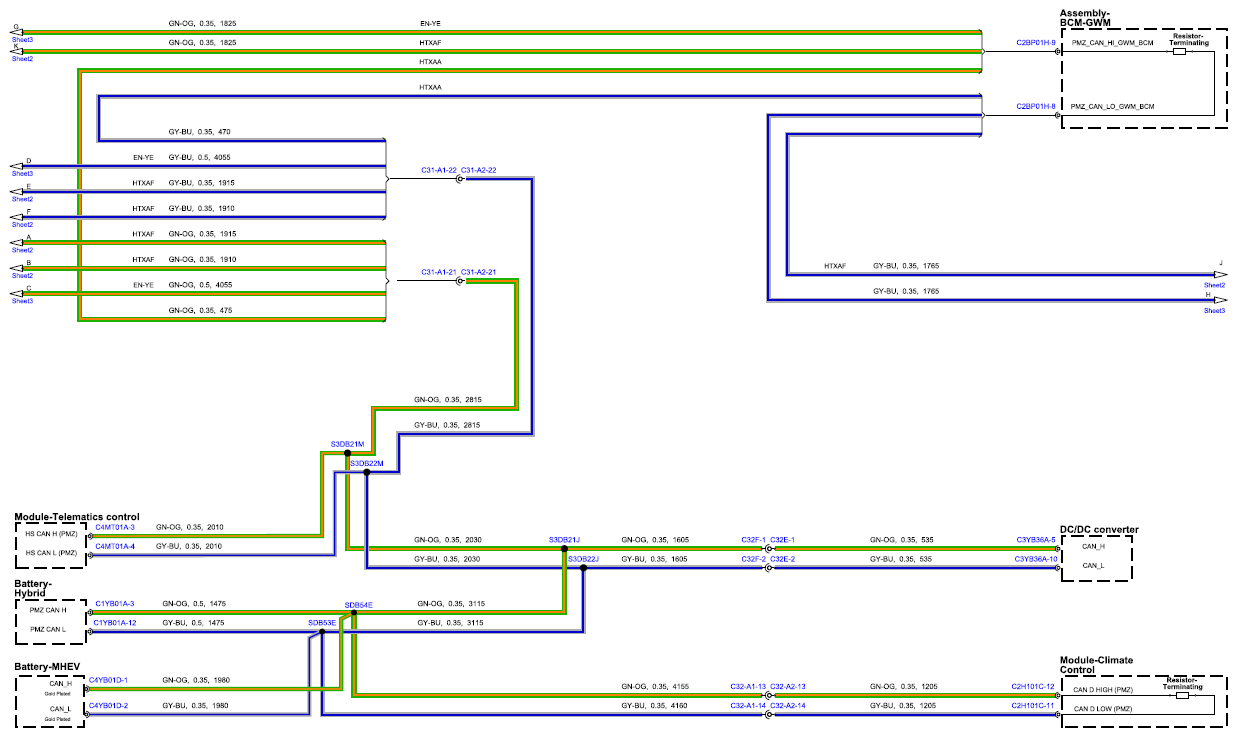

Fig 1: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 1)
G15556705

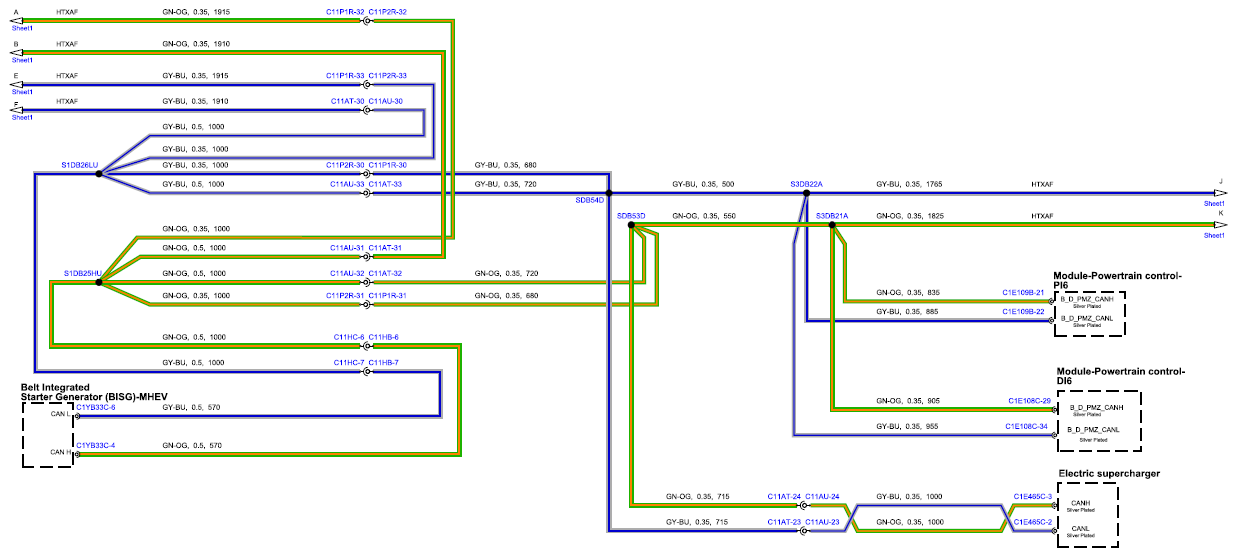

Fig 2: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 2)
G15556706

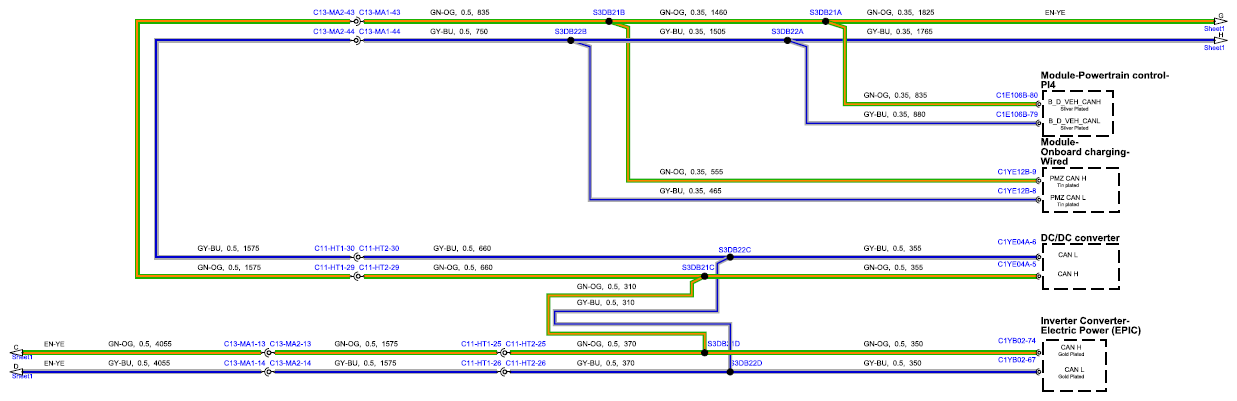

Fig 3: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 3)
G15556707
